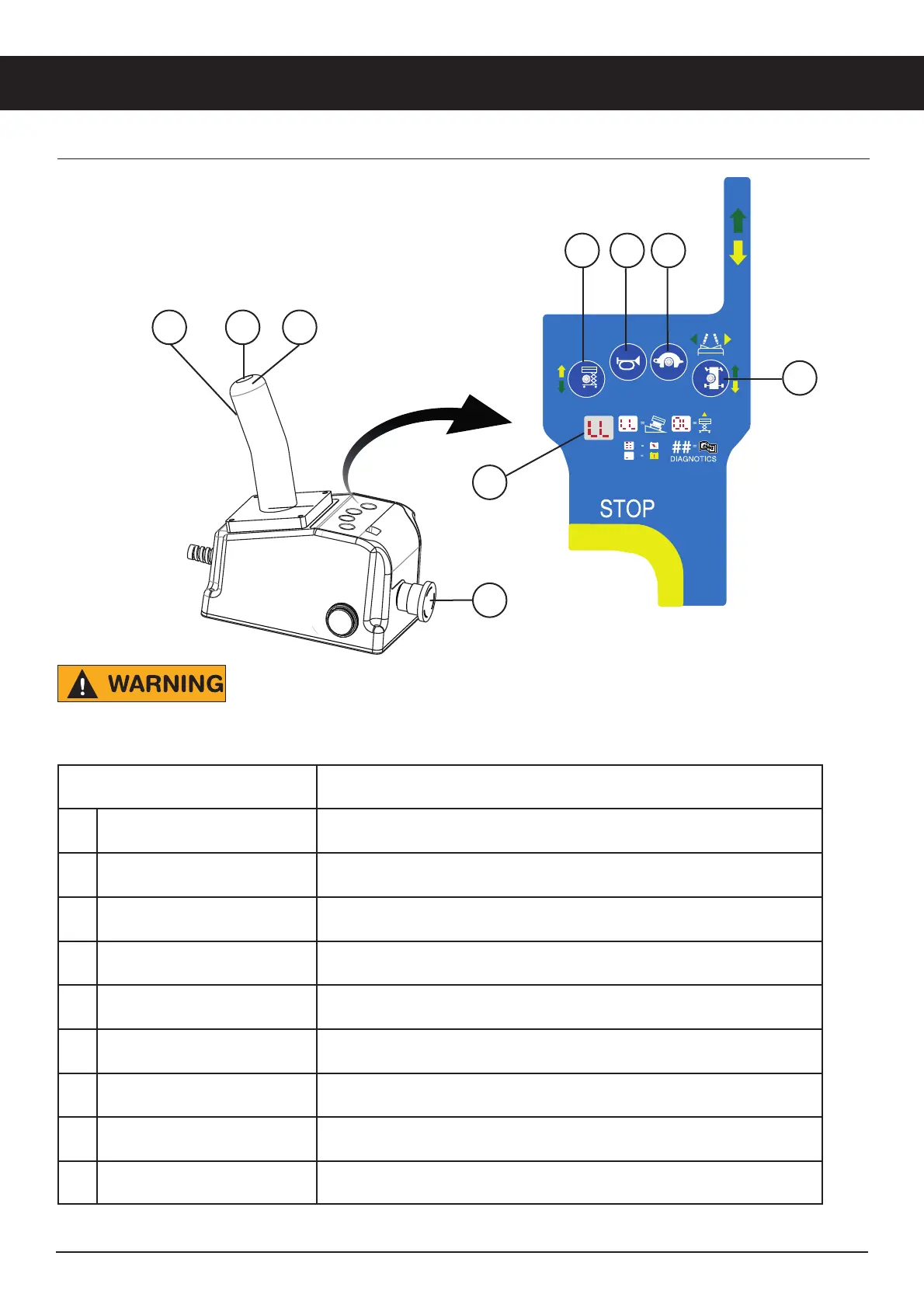

3.2.B PLATFORM CONTROLS (TYPE B)
Be aware of the machine’s position and of your surroundings before
activating any control function.
Control Description
1 Function Enable Switch Squeeze to enable DRIVE, STEER and LIFT functions from the
Control Handle.
2 Steer Switch / thumb rocker Using your thumb, press and hold the rocker switch to steer Left or
Right.
3 Control Handle DRIVE - Proportionally controls Forward and Reverse Travel.
LIFT - Proportionally controls Lift and Lower functions.
4 Emergency Stop Press the EMERGENCY STOP at any time to stop all machine
functions. Turn switch clockwise to reset.
5 Lift Select Press the button to enable the Lift function.
6 Horn Button Press to sound warning horn.
7 Drive Speed Select Light ON indicates Low Speed Drive is selected.
Light OFF indicates High Speed Drive is selected.
8 Drive Select Press this button to enable the Drive function.
9 Diagnostic display Indicates the state of the battery charge and displays diagnostic codes
when necessary.
1 2 3
4
9
5 6 7
8
Controls & components
