3394RT---6094RT Scissor Lifts - Operator’s Manual Page 20

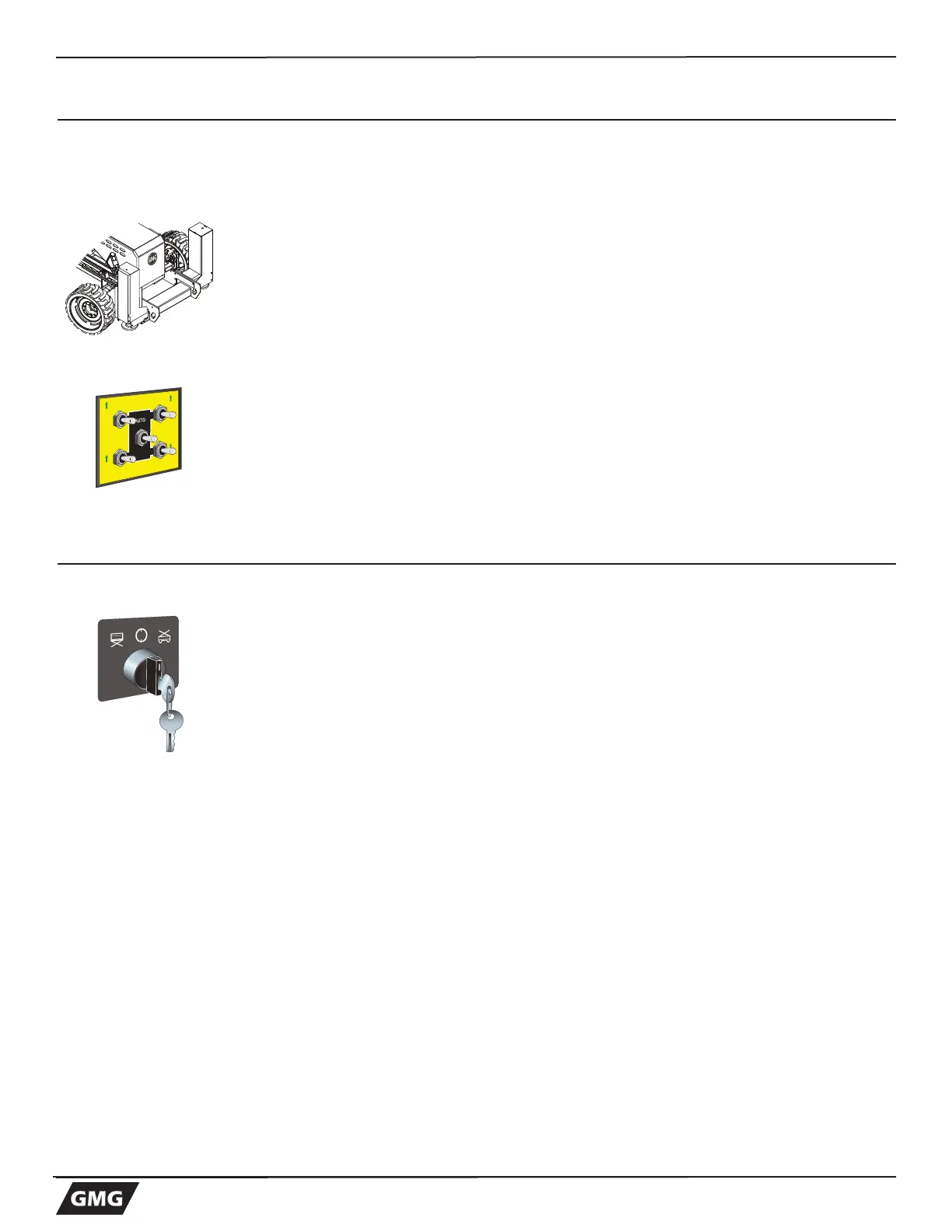

Outrigger Operation
Only lower the outriggers when the machine is on a firm surface. The surface must
be capable of supporting the maximum ground pressure per wheel/outrigger
(see specifications).
The outrigger control switches are located on the front face of the Upper Control Box.
Extend
Push down and hold the Automatic Leveling Switch to the EXTEND position.
• The outriggers will extend and level the machine. When the machine is level and
ready to operate, the outriggers will stop automatically.
• The Drive Enable Indicator will turn OFF, indicating that outriggers are down and
machine drive function is disabled.
Retract
Push up and hold the Outrigger Control Switch to the RETRACT position.
• The outriggers will retract.
• The Drive Enable Indicator will turn ON, indicating that the outriggers are up and
machine drive function is enabled.
Manual Operation of Outriggers
• Manual operation of individual outriggers is possible using the Manual Level
Switches.
Shutdown Procedure
• When finished with the machine, place the platform in the stowed position.
• Park the machine on a level surface.
• Turn the Selector Key Switch to the OFF position and remove the key to prevent
unauthorized use.
• Carefully exit the platform using a constant three (3) point dismount/grip.
6 - Function Tests and Operating Instructions
