3394RT---6094RT Scissor Lifts - Operator’s Manual Page 19
6 - Function Tests and Operating Instructions
Steering
• Always check front steer wheel direction before driving.
• With the Mode Select Switch in the DRIVE position, squeeze the Enable Bar and
press the Steering Switch with your thumb to steer left or right.
Test Operation
• Releasing the Steering Switch will stop steering function.
• The steer wheels will not center themselves after a turn. The steer wheels must
be returned to the straight-ahead position with the Steering Switch.
Note Platform will not elevate beyond 35 ft. (10.6 m) without the outriggers
deployed
• Releasing the Enable Bar or the Joystick will stop elevation.
• Pressing the Emergency Stop Switch will also stop elevation.

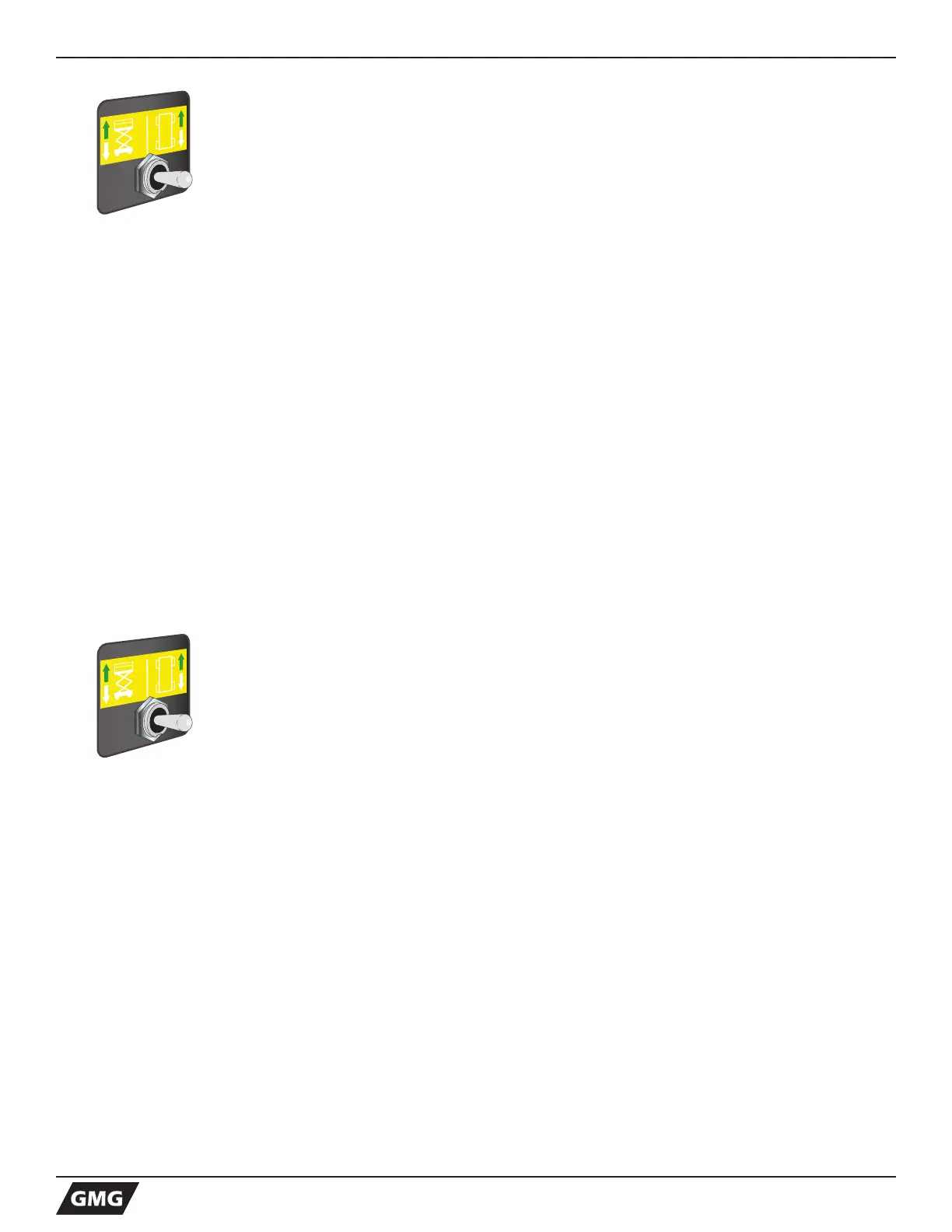

Drive Speed
Drive speed is selectable until the platform is elevated above 10 Feet (3 m). When
the platform is elevated the machine defaults to HIGH TORQUE and the switch is
locked-out (non functioning).
• HIGH SPEED: allows speeds up to 4.5 m.p.h. (7.2 km/h).
• HIGH TORQUE: use to drive up or down a slope that is too steep for normal speed.
Drive Forward
• Place the Mode Select Switch in the DRIVE position.
• Squeeze the Enable Bar and move the Joystick away from you.
Test Operation
• Drive speed is proportional and is dependent on the movement of the
Joystick.
• Releasing the Enable Bar or returning the Joystick to the center position
will stop drive.
• Pressing the Emergency Stop Switch will stop drive.
Drive Reverse
• Place the Mode Select Switch in the DRIVE position.
• Squeeze the Enable Bar and move the Joystick toward you.
Test Operation
• Drive speed is proportional and is dependent on the movement of the
Joystick.
• Releasing the Enable Bar or returning the Joystick to the center position
will stop drive.
• Pressing the Emergency Stop Switch will stop drive.
Brake
• For parking, the brake is automatically applied when the Joystick is posi-
tioned in the neutral position.
