10
Basic Bot Guide
INSTRUCTIONS:
A. Place 1 Washer over 4 of the M4 16mm Socket Head Screws and
thread 1 Washer-Screw assembly into each of the 4 small circular
holes surrounding the large middle hole in one Wheel. Screw
heads should be exposed on the SHALLOW side of the Wheel.
B. Turn the Wheel upside down and attach 1 Sonic Hub to the 4
Screws placed in part A. Sonic hub should be attached on the
DEEPER side of the Wheel. The raised edge of the Sonic Hub
should be placed INSIDE the central hole of the wheel.
C. Repeat parts A and B to construct 2 identical wheel assemblies.
x2
1309 2801
x2 x8 x8
28003601

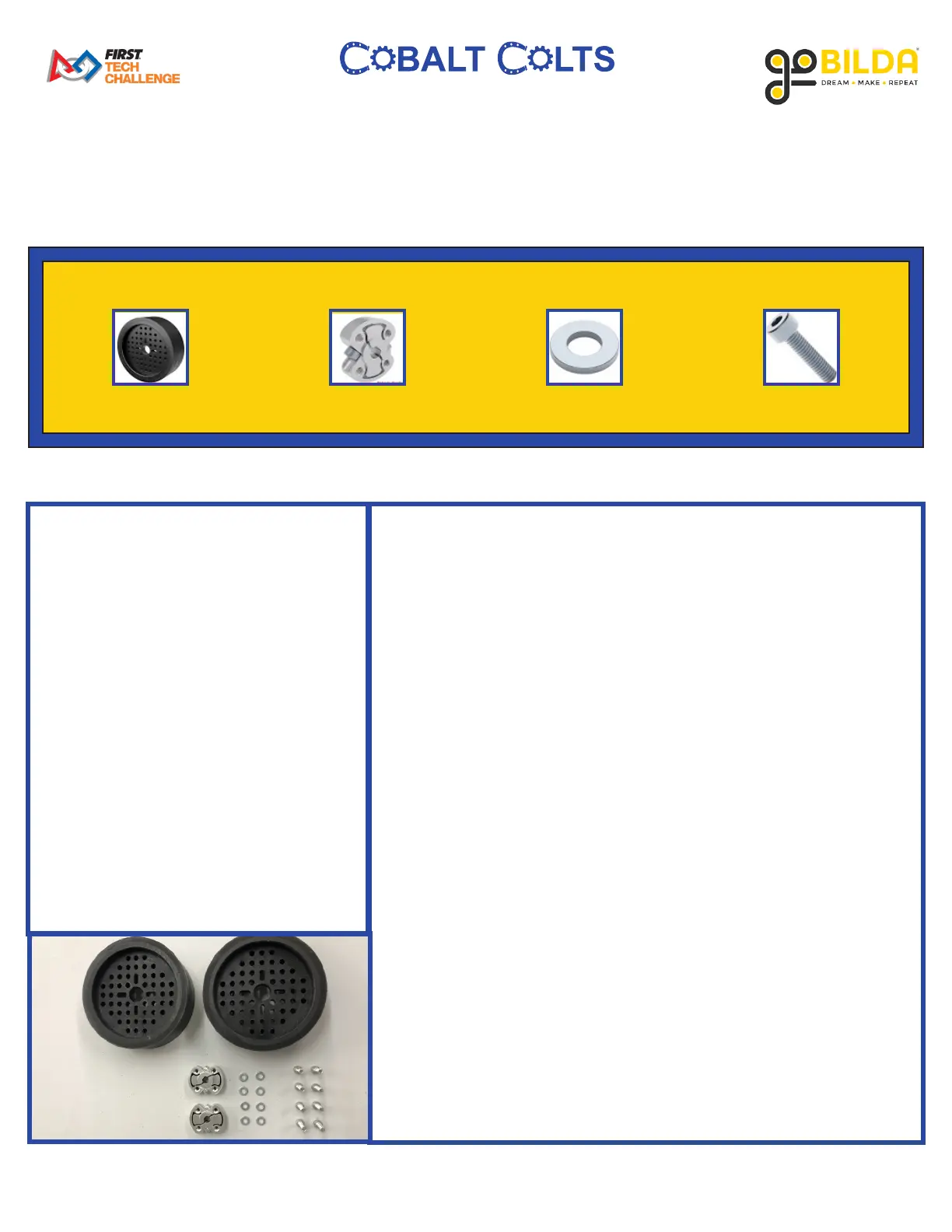

PARTS REQUIRED:
• x2 3601 Series Rhino Wheel
(14mm Bore, 96mm Diameter)
• x2 1309 Series Sonic Hub (6mm
D-Bore)
• x8 2801 Series Zinc Plated Washer
(4mm ID x 8mm OD)
• x8 2800 Series Socket Head Screw
(M4 x 0.7mm, 16mm)
2: Rear Wheels
