Basic Bot Guide

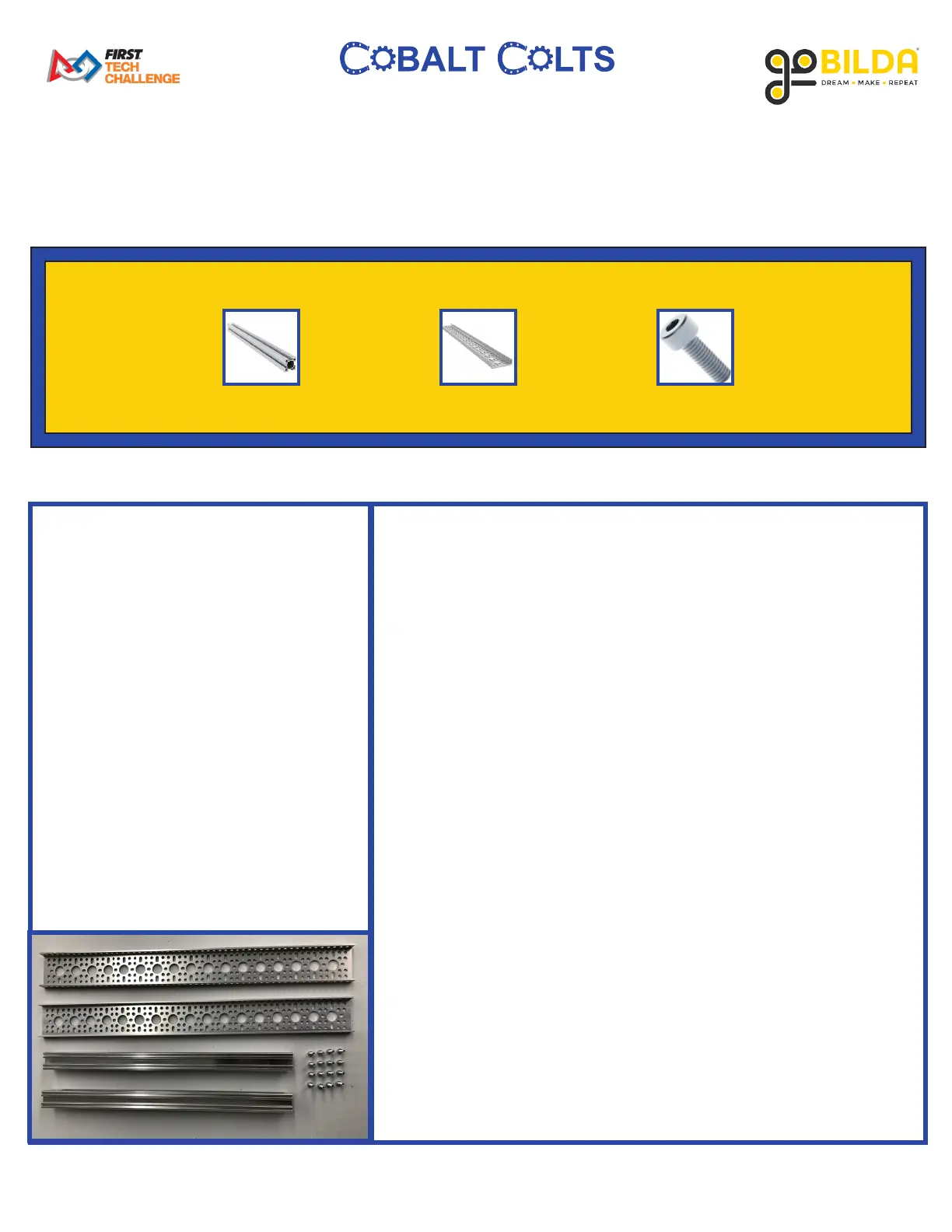

PARTS REQUIRED:
• x2 1109 Series goRAIL (336mm
Length)
• x2 1121 Series Low-Side
U-Channel (17 Hole, 432mm
Length)
• x16 2800 Series Zinc-Plated Steel
Socket Head Screw (M4 x 0.7mm,
12mm Length)
INSTRUCTIONS:
A. Connect 1 336mm goRail to 1 432mm Low-Side U-Channel
using 4 M4 12mm Socket Head Screws. Align the goRail with
the rst large hole of the Low-Side U-Channel.
B. Connect the other side of the same 336mm goRail to another
432mm Low Side U-Channel using 4 M4 12mm Socket Head
Screws. Align the goRail with the rst large hole of the Low
Side U-Channel.
C. Connect the remaining 336 goRail to the parallel Low Side
U-Channels using the remaining 8 M4 12mm Socket Head
Screws. Align the goRail with the 7th large hole from the open
end of the Low Side U-Channel on each side. There should be 9
open large holes between the two goRails.
1109 1121 2800
x2 x2 x16
1: Chassis Frame
*Indicates that a dierent quantity is required if the Alternate Assembly (Step 16) is built
