Basic Bot Guide
15: Switch Assembly
x1
REV 1106 1101 2800 2800 2812 Zip Tie
x2x3 x6 x2 x2 x2

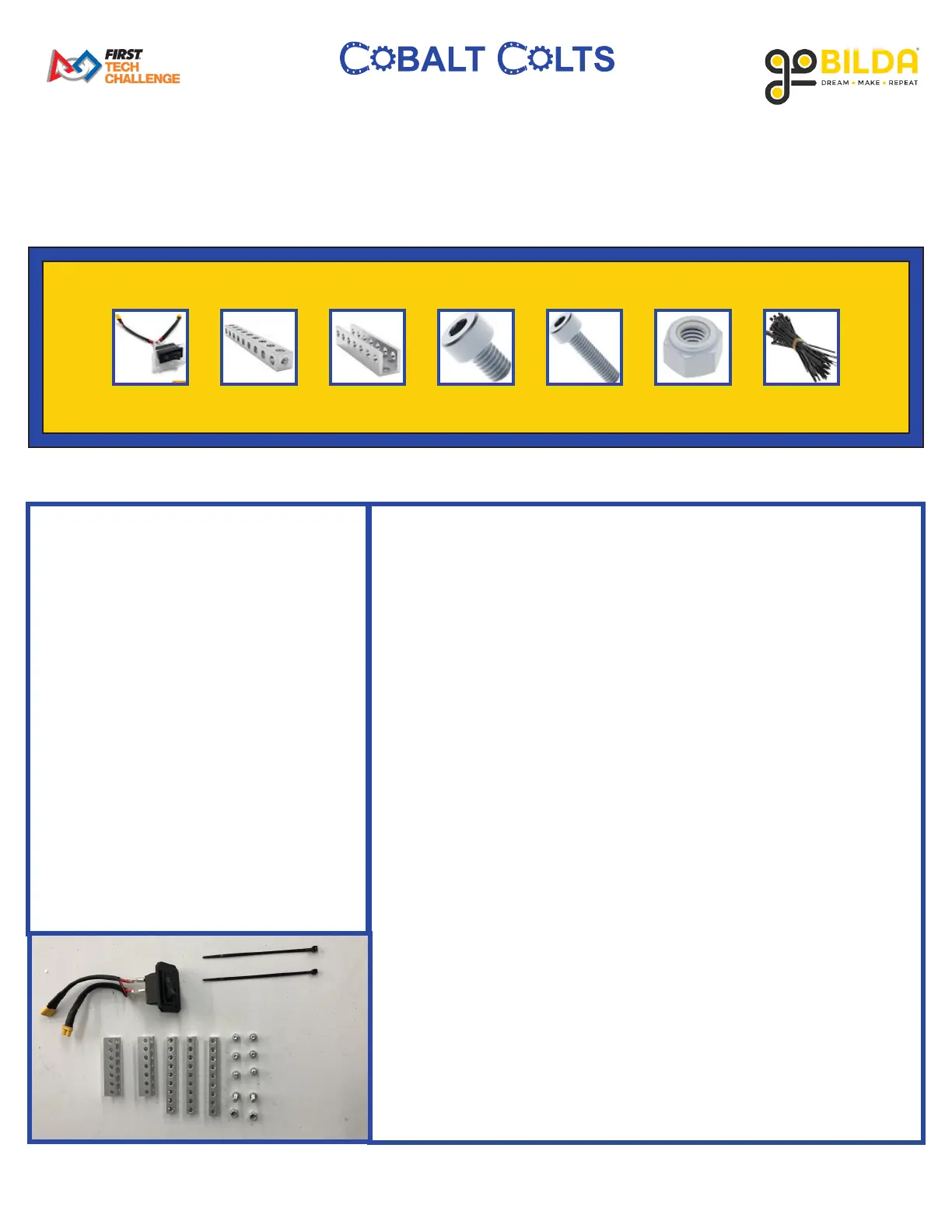

PARTS REQUIRED:
• x1 REV Switch Assembly (NOT
INCLUDED IN KIT)
• x3 1106 Series Square Beam (9
Hole, 72mm Length)
• x2 1101 Series U-Beam (7 Hole,
56mm Length)
• x6 2800 Series Zinc-Plated Steel
Socket Head Screw (M4 x 0.7mm,
6mm Length)
• x2 2800 Series Zinc-Plated Steel
Socket Head Screw (M4 x 0.7mm,
16mm Length)
• x2 2812 Series Zinc-Plated Steel
Nylon-Insert Locknut (M4 x
0.7mm, 7mm Hex)
• x2 Zip Tie (100mm Length, Black)
INSTRUCTIONS:
A. Using 6 M4 6mm Socket Head Screws, 3 9 Hole Square Beams,
and 2 7 Hole U-Beams, assemble the frame of the Switch
Assembly as shown.
B. Using 2 Zip Ties, secure the REV Switch Assembly to the frame
as shown. The switch itself should be inset into the frame so it is
not exposed and will not accidentally be hit during gameplay.
C. Using 2 M4 16mm Socket Head Screws and 2 M4 Locknuts,
mount the Switch Assembly to the REV Hub plate as shown.
