Basic Bot Guide
5: Bumpers
1121 1106 2800
x2 x4 x8

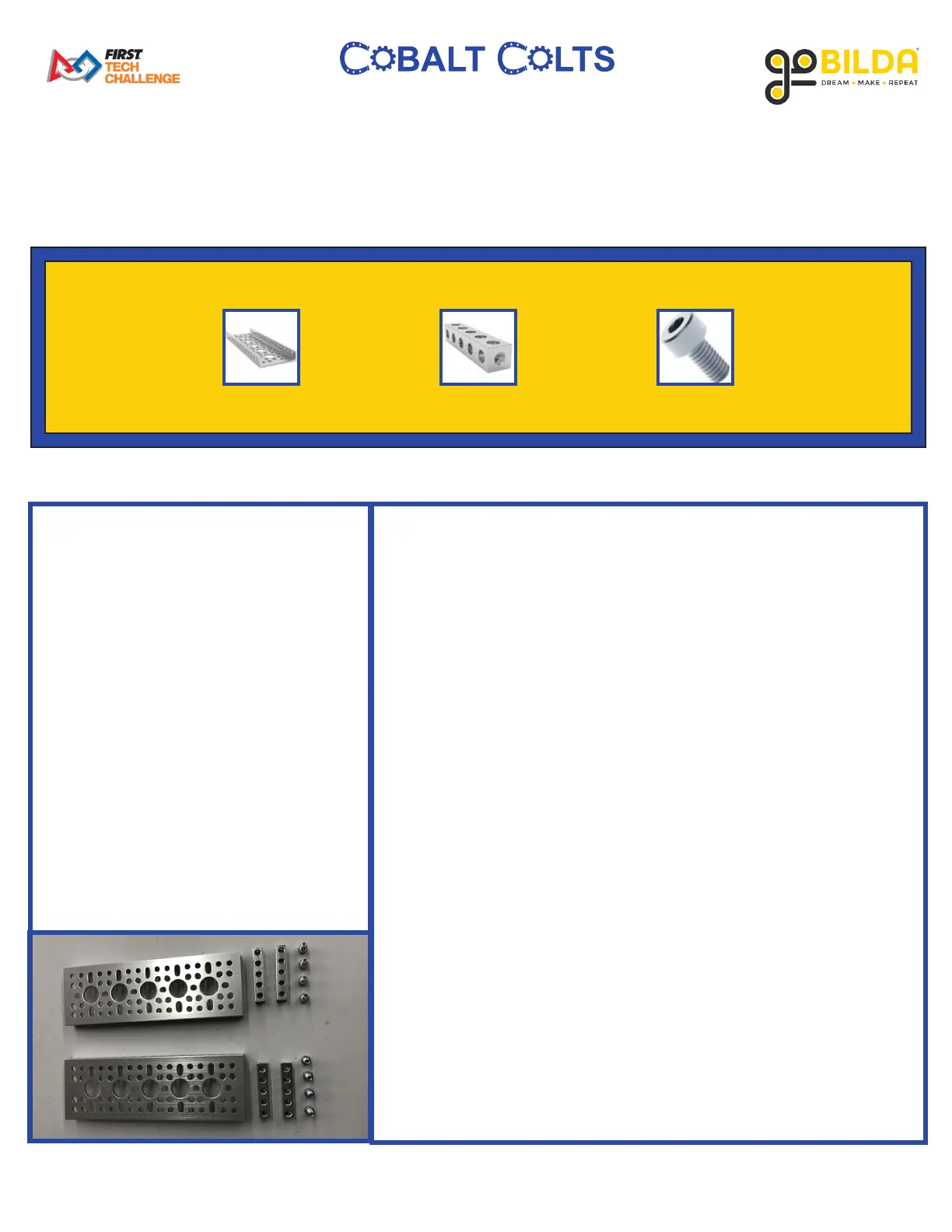

PARTS REQUIRED:
• x2 1121 Series Low Side U-Channel
(5 Hole, 144mm Length)
• x4 1106 Series Square Beam (5
Hole, 40mm Length)
• x8 2800 Series Socket Head Screw
(M4 x 0.7mm, 8mm)
INSTRUCTIONS:
A. At the front of the robot, attach 1 5 Hole Square Beam to
the very front bottom corner hole of the 17 Hole Low Side
U-Channel using 1 M4 8mm Socket Head Screw. Ensure Square
Beam is straight (parallel to ground).
B. Attach another 5 Hole Square Beam to the very front top corner
hole of the 17 Hole Low Side U-Channel using 1 M4 8mm
Socket Head Screw.
C. Attach 1 5 Hole Low Sie U-Channel to the 2 5 Hole Square
Beams using 2 M4 8mm Socket Head Screws.
D. Repeat the previous steps for the other side.
