Basic Bot Guide
9: Top Plates
x2
1123 1123 2800 2812
x2 x12 x12

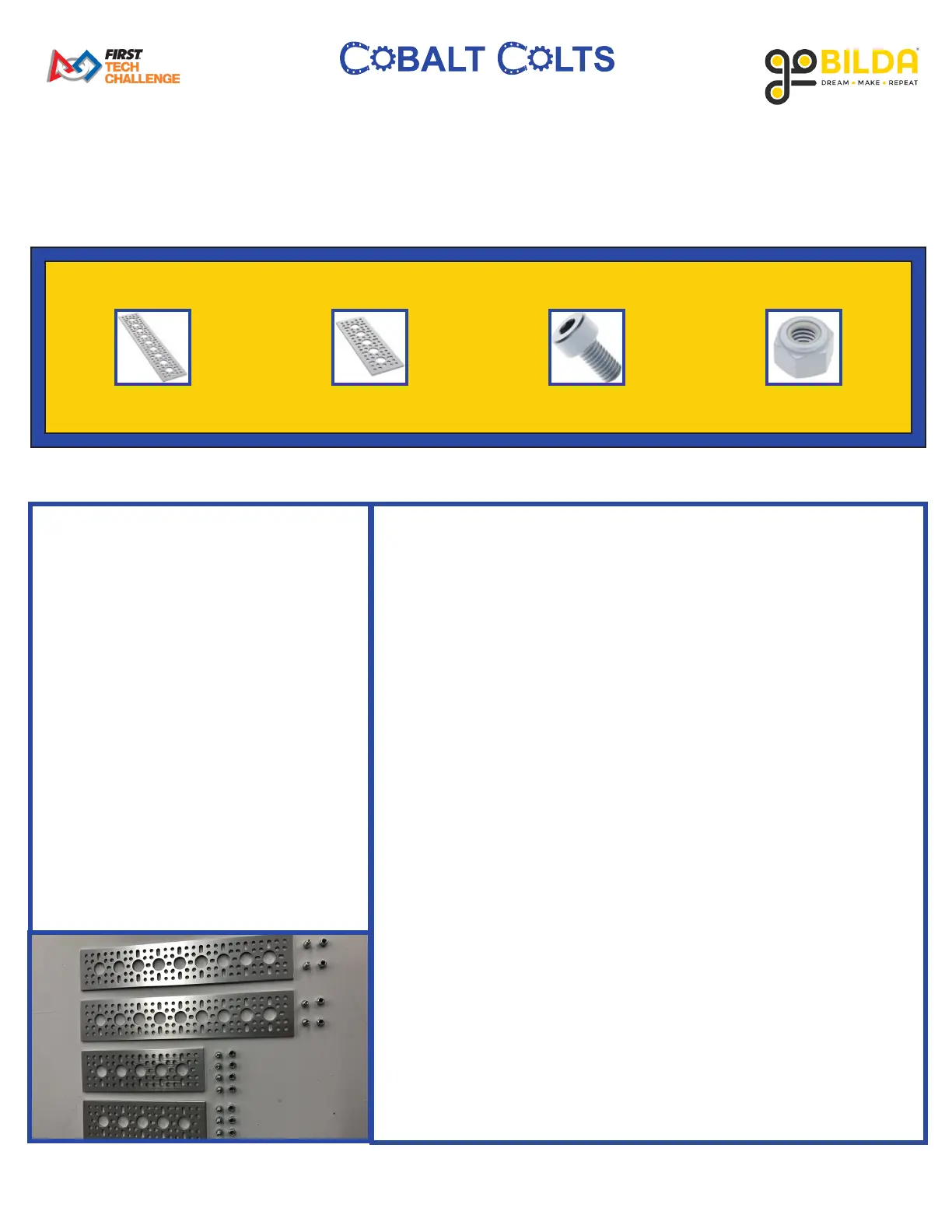

PARTS REQUIRED:
• x2 1123 Series Pattern Plate (1 x 9
Hole, 48 x 240mm)
• x2 1123 Series Pattern Plate (1 x 5
Hole, 48 x 144mm)
• x12 2800 Series Socket Head Screw
(M4 x 0.7mm, 8mm Length)
• x12 2812 Series Zinc-Plated Stee
Nylon-Insert Locknut (M4 x
0.7mm, 7mm Hex)
INSTRUCTIONS:
A. Using 2 8mm M4 Socket Head Screws and 2 M4 Locknuts,
attach 1 1 x 9 Pattern Plate to the drivetrain as shown.
B. Using 4 8mm M4 Socket Head Screws and 4 M4 Locknuts,
attach 1 1 x 5 Pattern Plate to the drivetrain as shown.
C. Repeat the previous on the other side of the drivetrain.
