Basic Bot Guide

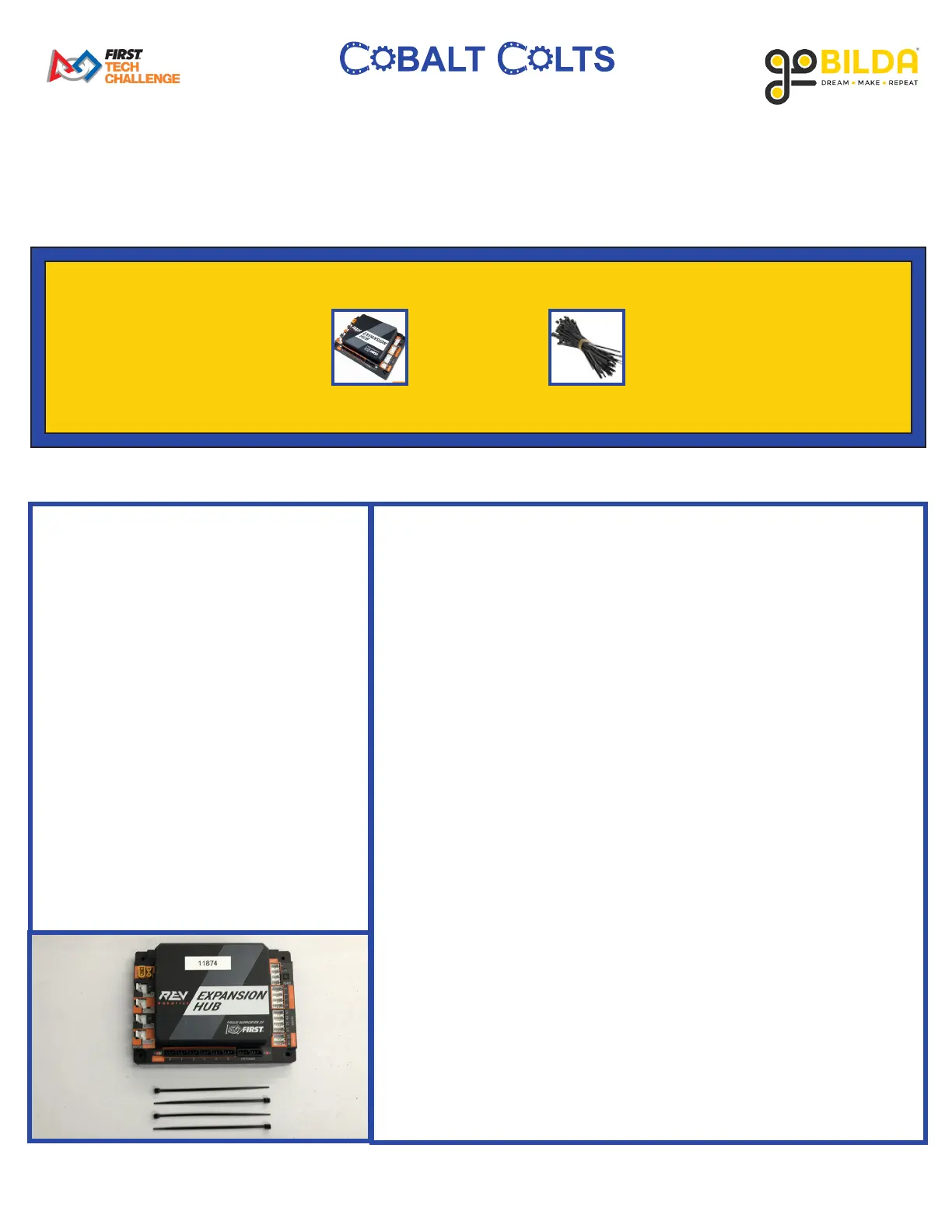

14: REV Hub
REV Zip Tie
x1 x4
PARTS REQUIRED:
• x1 REV Expansion Hub (NOT
INCLUDED IN KIT)
• x4 Zip Tie (100mm Length, Black)
INSTRUCTIONS:
A. Position the REV Expansion hub on top of the REV Hub Plate
and align as shown.
B. Using 4 Zip Ties (1 in each corner), secure the REV Hub as
shown. Ensure the front 2 zip ties are threaded through the holes
to the side of the Expansion Hub so they will not interfere with
the Switch Assembly installed later.
C. Once the Zip Ties are tightened, cut o the ends using a pair of
scissors or Zip Tie cutters.
