16
Basic Bot Guide

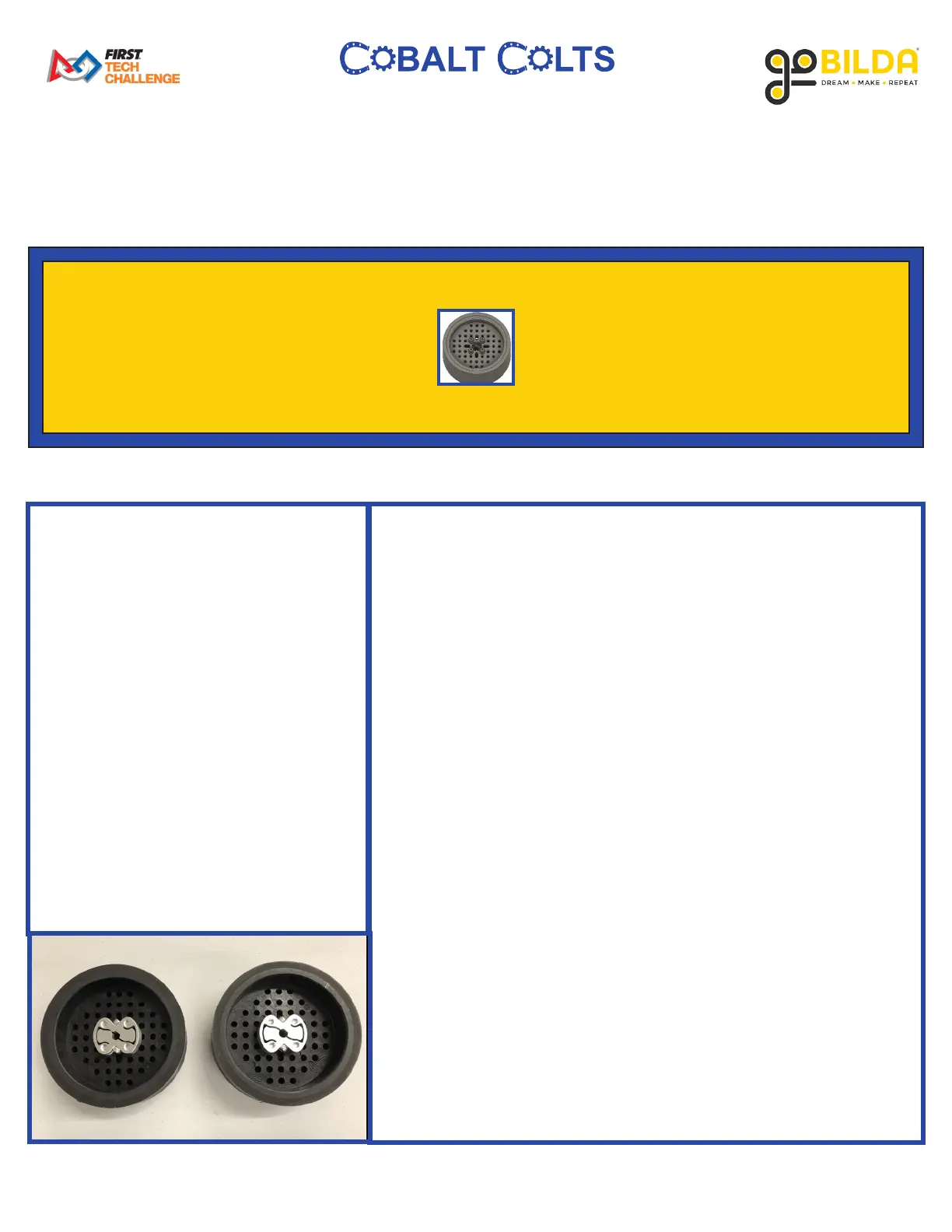

4: Rear Axles
Step 2
x2
PARTS REQUIRED:
• x2 Wheel Assemblies from Step 2
INSTRUCTIONS:
A. Slide 1 Wheel Assembly over the exposed D-shaft of the
Motor. Sonic hub (deep side of the wheel) should be placed on
the inside (between the Wheel and the Low Side U-Channel.
D-Shaft should be slid in so its edge is ush with the edge of the
Sonic Hub as viewed from the outside. Tighten BOTH set screws
on the Sonic Hub (this may be dicult to do). Ensure the wheel
can freely spin without catching on any screw heads.
B. Repeat previous for the other wheel.
