MONITOR DESCRIPTION

unction push buttons.

One short press for 1 second, with the monitor in standby and the handset on or off the

hook, activates night mode on the monitor, confirmed by the status LED blinking red.

During a call, the monitor does not emit a ringtone unless it is an apartment front“

door call .”

One long press for 3 seconds, with the monitor in standby and the handset on or off the

hook, turns the monitor on or off. After any resetting of the monitor and for the

following 45 seconds, no operation with it can be performed.

One long press for 3 seconds during a call cancels the call on the monitor. If there are

more monitors in the apartment, they will continue with the ringtones of the door

panel. During communication with the door panel, the communication in progress

will end

With the handset lifted, the intercom (in the same apartment) is activated. One long press

until a confirmation tone can be heard will call all of the monitors in the apartment. To

call individual devices, press the button once to call the master monitor, twice to call“ ”

“ " “ " “ " “ "slave 1 , 3 times to call slave 2 , 4 times to call slave 3 and 5 times to call slave 4 .

This selective intercom call mode is only available with the Tekna Plus SE monitor. This

only functions if no call or communication is in progress

. Up to two monitorsRemind:

and one phone in each house without extra power supply.

Regardless of the position of the handset, the auxiliary device is activated.

With the handset hung up, the image from the door panel configured as master can be

viewed (if busy bus, the monitor status LED will indicate with fast blinking red. With

monitor V03 or later). With the handset lifted, audio and video communication can

be established with the door panel if it has its auto switch-on function activated. This

only functions if no communication is in progress.

With the handset hung up, a panic call to the guard units configured to receive such calls

is made. With the handset lifted, a normal call can be made to the main guard unit.

During call reception and communication processes, the door release can be

activated.

(*) In advanced programming mode, the default functions push buttons and can be changed

with one of the following functions at the same time and per button: "intercom", "auxiliary device

activation", " " or "call to secondary guard unit" (see page 54).Second camera activation

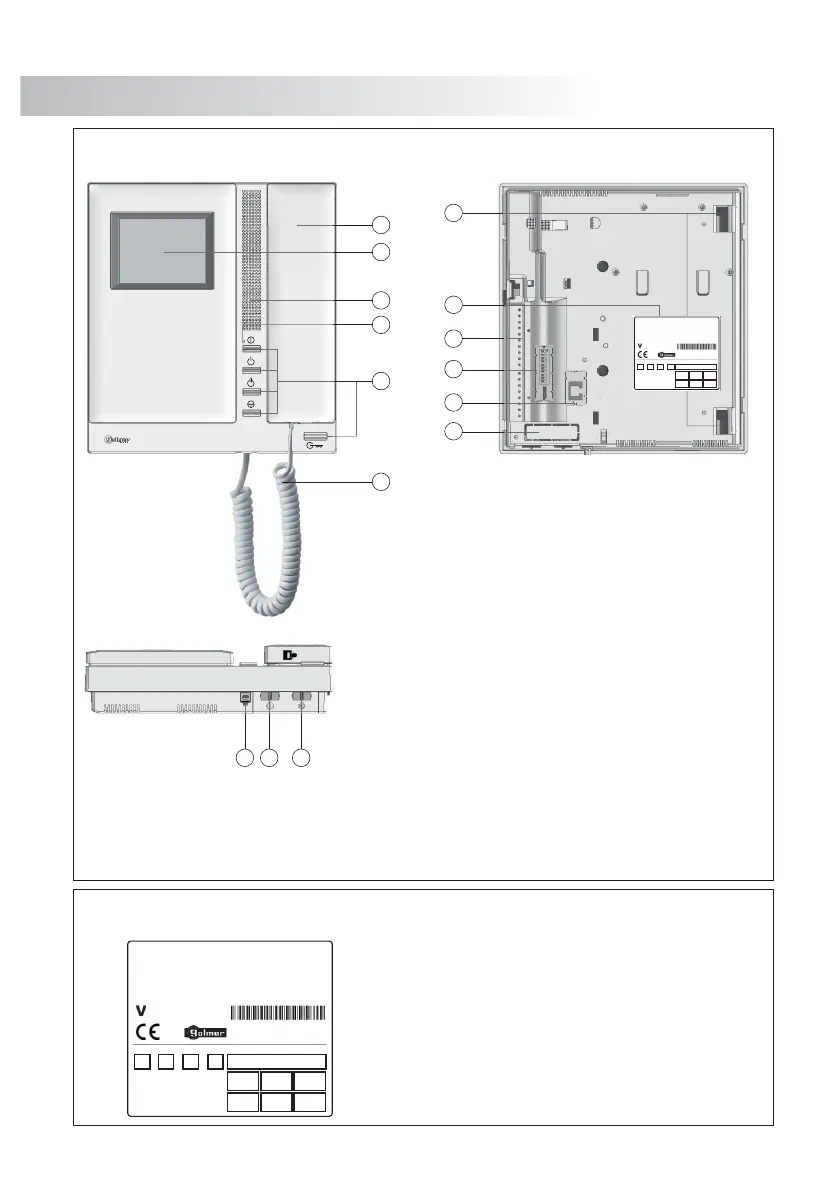

MONITOR DESCRIPTION

escription of the Tekna Plus monitor.SE

f .

i .

j .

l .

Handset.

.Colour screen

Advanced programming LED.

Monitor status LED (bicoloured):

-Standby: LED illuminated red.

-Call: LED illuminated green (master monitor)

-Communication: LED illuminated green.

-"Video-spy" if busy bus: LED fast blinking red.

.(With monitor V03 or later)

-Night mode: LED blinking red.

-Doctor mode: LED blinking green.

.Function / programming push buttons

Telephone cord.

.Attachment holes

Identification label.

.Connecting points

.Dip switches

.RJ-45 connector (installating with UTP cable)

.CN4 connector

.Cord connector

.Color control

Brightness control.

escription of the identification label.

For an easiest repair, replacement or increasement of

the existing monitors, fill the indentifying label

information.

MASTER: master monitor.

SLAVE: slave monitor.

INTER: slave monitor with intercom function.

A1: monitor connected to an auxiliary device.

CODE: push button code.

S villaTAIR: backbone code ( ).

00000000000

.xx

MASTERINTER A1 SLAVE CODE

ESCALERA

STAIR

PISO

FLOOR

PUERTA

DOOR

ATENCIÓN

Alta tensión. No abrir la tapa.

Manipular sólo por personal

del servicio técnico.

WARNING

High voltage. Don't open cover.

Handle only by technical service.

REF.

TEKNA PLUS SE

CODE

11742105

1 2 3 4

5 6 7 8

9 10

( )
