Goodwe DNS Series User Manual

05 Installation
13
User Manual V1.0-2022-12-15

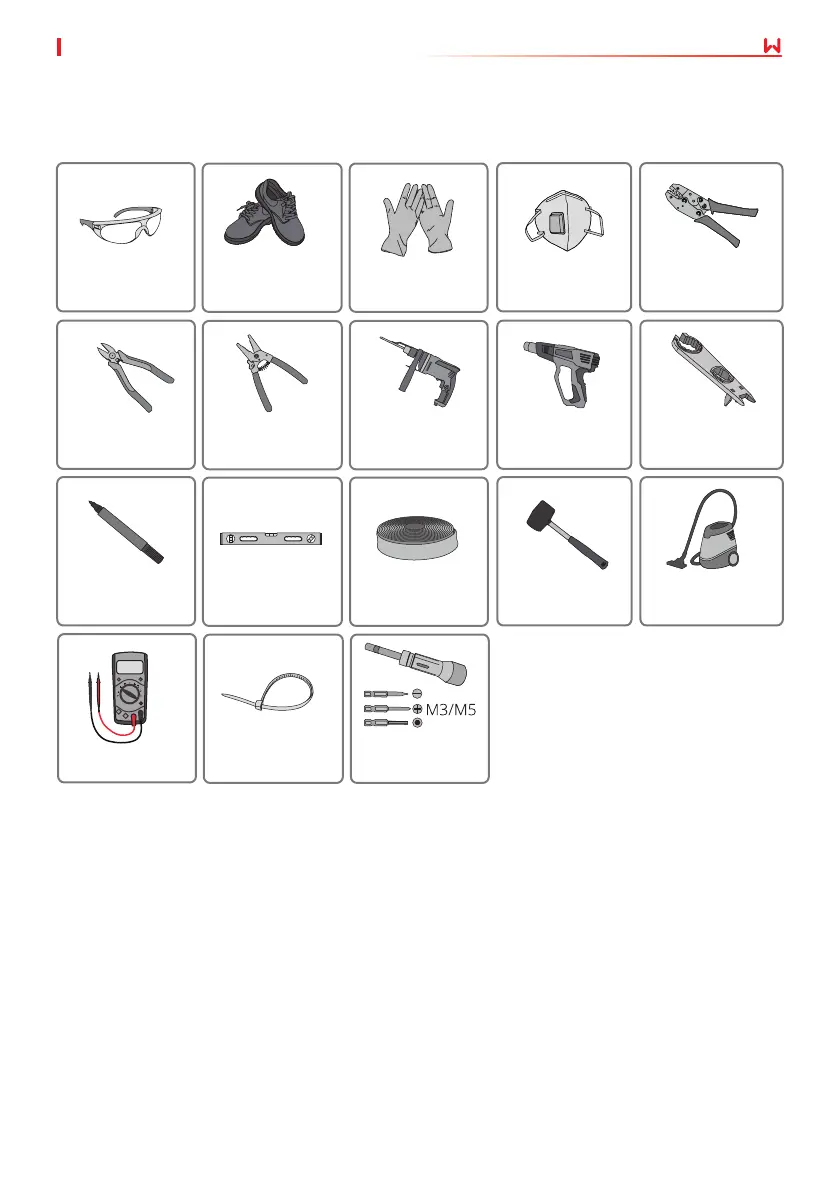

The following tools are recommended when installing the equipment. Use other auxiliary tools
on site if necessary.
Installation Tool Requirements
Goggles Safety shoes
Safety gloves
Dust mask
Diagonal pliers
Marker Level
Heat shrink
tube
Rubber
hammer
DC wiring
wrench
Vacuum
cleaner
Torque wrench
Cable tieMultimeter
Wire stripper Hammer drill Heat gun
DC terminal
crimping tool

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
