Goodwe DNS Series User Manual

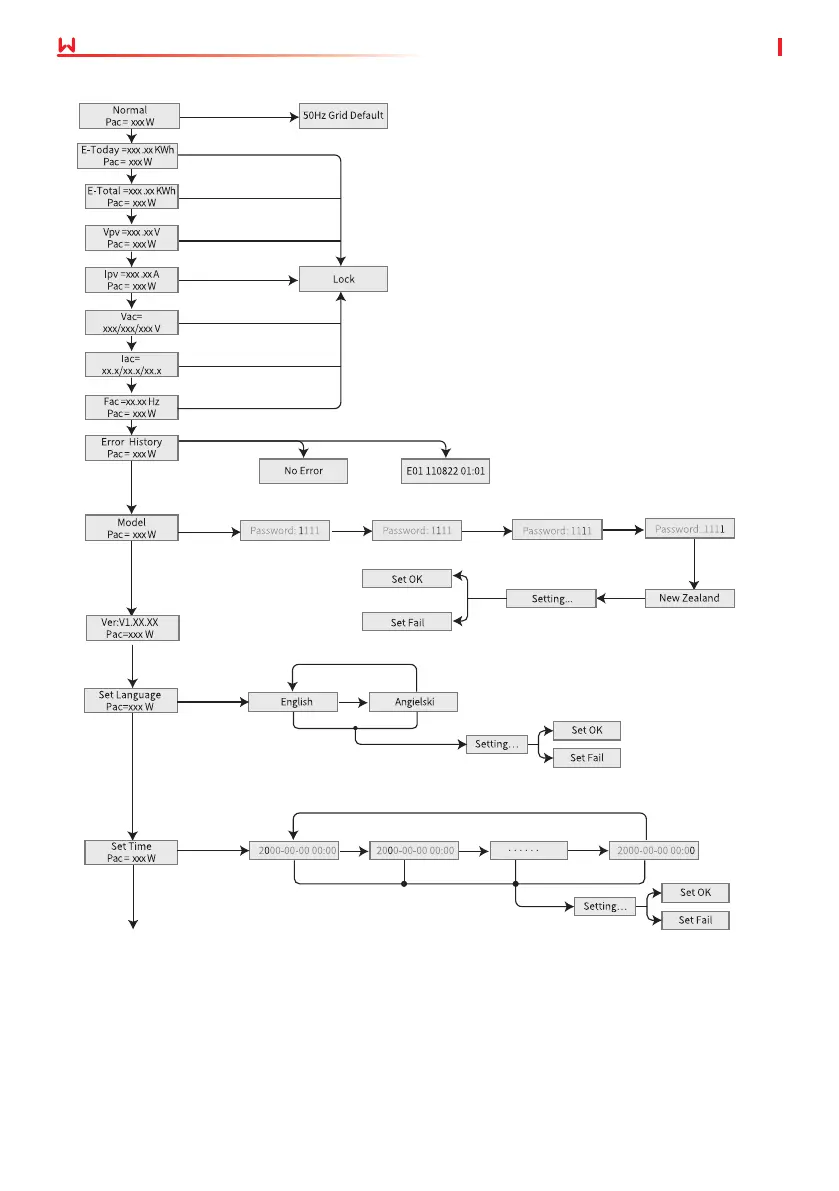

08 System Commissioning
28
User Manual V1.0-2022-12-15
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press
for 2s
Long press
for 2s
Long press
for 2s
Long press
for 2s
Long press
for 2s
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Next page
Short press to select 0~9
Short press to select 0~9
Short press to select 0~9
Short press to
select 0~9
wait for 10s
Initial Password: 1111
Short press and
wait for 10s
Short press
Short press Short press
Short press
Short press
Wait
Main Menu
Sub Menu
Long press
for 2s
Long press for 2s
Long press
for 2s
Long press
for 2s
Long press
for 2s
Short press to
select 0~9
Short press to
select 0~9
Short press to
select 0~9
Wait
Short press

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
