Communication Line Connections
Connecting to the Terminal Block
DRED
NO.
Function
1
DRM1/5
2
DRM2/6
3
DRM3/7
4
DRM4/8
5
REFGEN
6
COM/DRMO
DRY_OUT CAN_2 485_2 485_3 485_1 DRED DRY_IN1DRY_IN2DRY_IN3DRY_IN4 LAN
HLABABAB

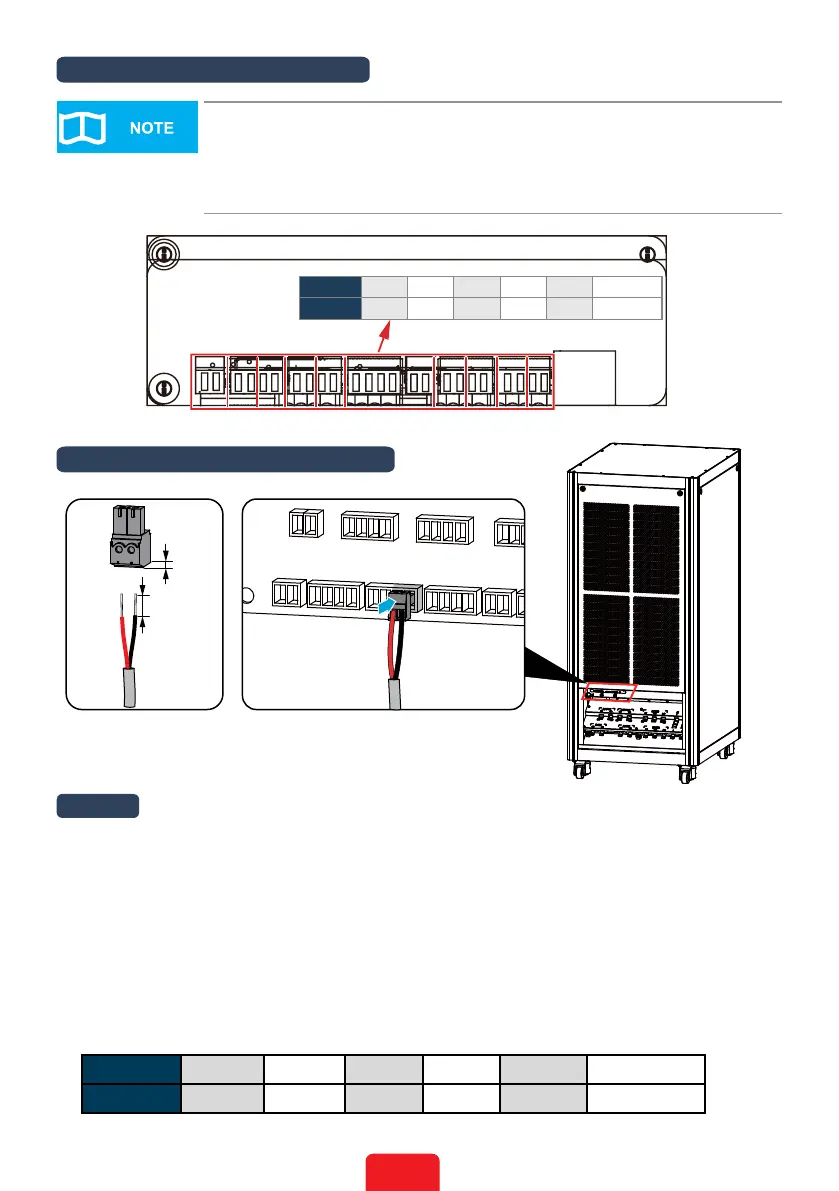

• The wiring methods for connecting communication lines through the
terminal block are the same, and this document uses the RS485_1 port
connection as an example to illustrate the procedures.
• The DRY_OUT, CAN_2, RS485_3, DRY_IN1, DRY_IN2, DRY_IN3 and DRY_
IN4 ports are reserved.
DRED is used for installations in Australia and New Zealand (also used as remote shutdown function
in European countries), in compliance with Australia and New Zealand safety requirements(Or
European countries). The inverter integrates the DRED control logic and provides the DRED interface.
DRED is not provided by the manufacturer.
Detailed connection of DRED / Remote shutdown is shown below:
1. Put DRED cable through the plate.
2. Connect DRED cable on the 6-pin terminal.The function
of each connection position is shown as below.
No. 1 2 3 4 5 6
Function DRM1/5 DRM2/6 DRM3/7 DRM4/8 REFGEN COM / DRMO
To Next Page
