Depicted Size
A External diameter of the wire 12mm-25mm
B Sectional area of conducting materials Max.6mm
2
C Length of bare wire Approx.10mm
E AC output connection
Tighten the screw with a screw driver until the head of the
screw is inside the connector. Otherwise the wire could be
loose.

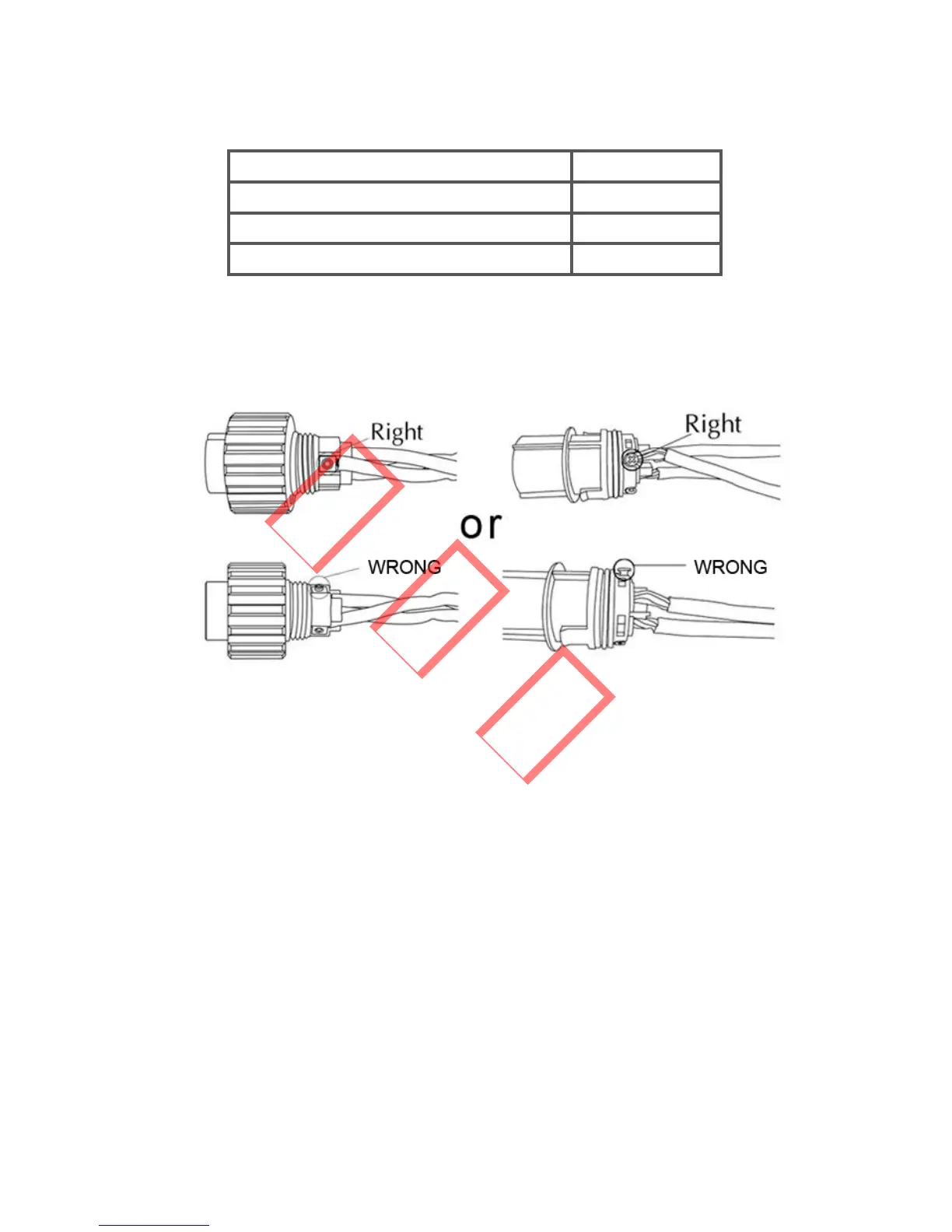

Figure 3.4.1-4
3.4.2 DC side connection
A Make sure the maximum open circuit voltage (Voc) of
each PV string does not exceed the inverter’s input voltage
Vmax under any condition.
B Use Amphenol or Multi-contact connectors for the PV
array terminals.
C Connect the positive and negative terminals of the PV
panel to corresponding terminals on the inverter. The DC
terminal on each inverter can bear 20A DC current.
