3.3 Equipment Installation
3.3.1 Selecting the installation position
The following must be considered when selecting the best
location for an inverter:
` The mount and installation method must be suitable for the
inverter's weight and dimensions.
` The location must be well ventilated and sheltered from
direct sunlight.

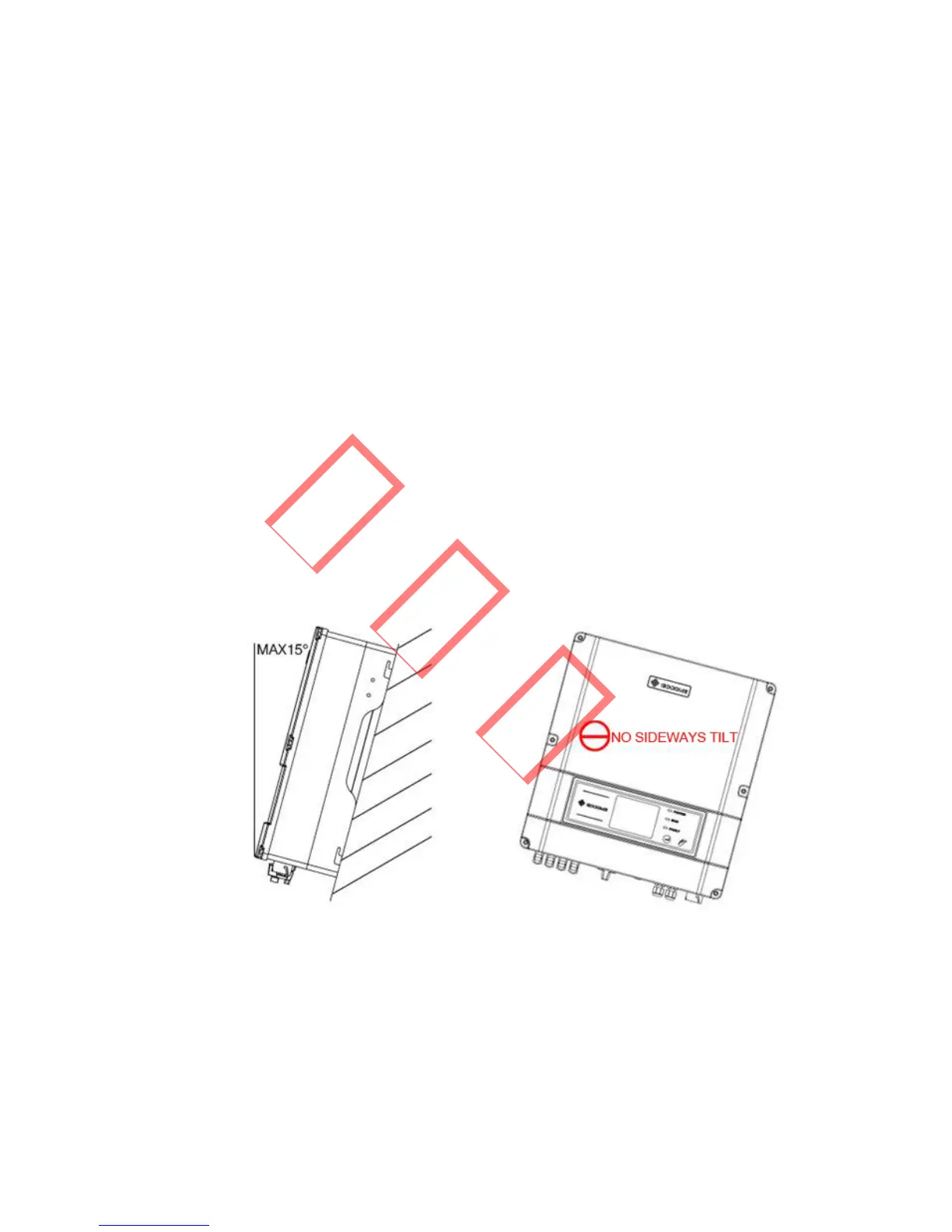

` Install vertically or tilted backward by max 15°. The device
cannot be installed with a sideways tilt. The connection area
must point downwards.
Figure 3.3.1-1
` To allow dissipation of heat, and for convenience of
dismantling, clearances around the inverter must be at least:
