communication between WebServer is ok.
` Green
Light on indicates the inverter is feeding power;
Light off indicates the inverter is not generating power at
the moment;
Slow flicking (1HZ) indicates the inverter is self-checking;
Fast flicking (5HZ) indicates the inverter has finished self-
checking and is ready for grid integration.
` Red
Light on indicates abnormal conditions;
Light off indicates normal condition.
4.3 LCD Display

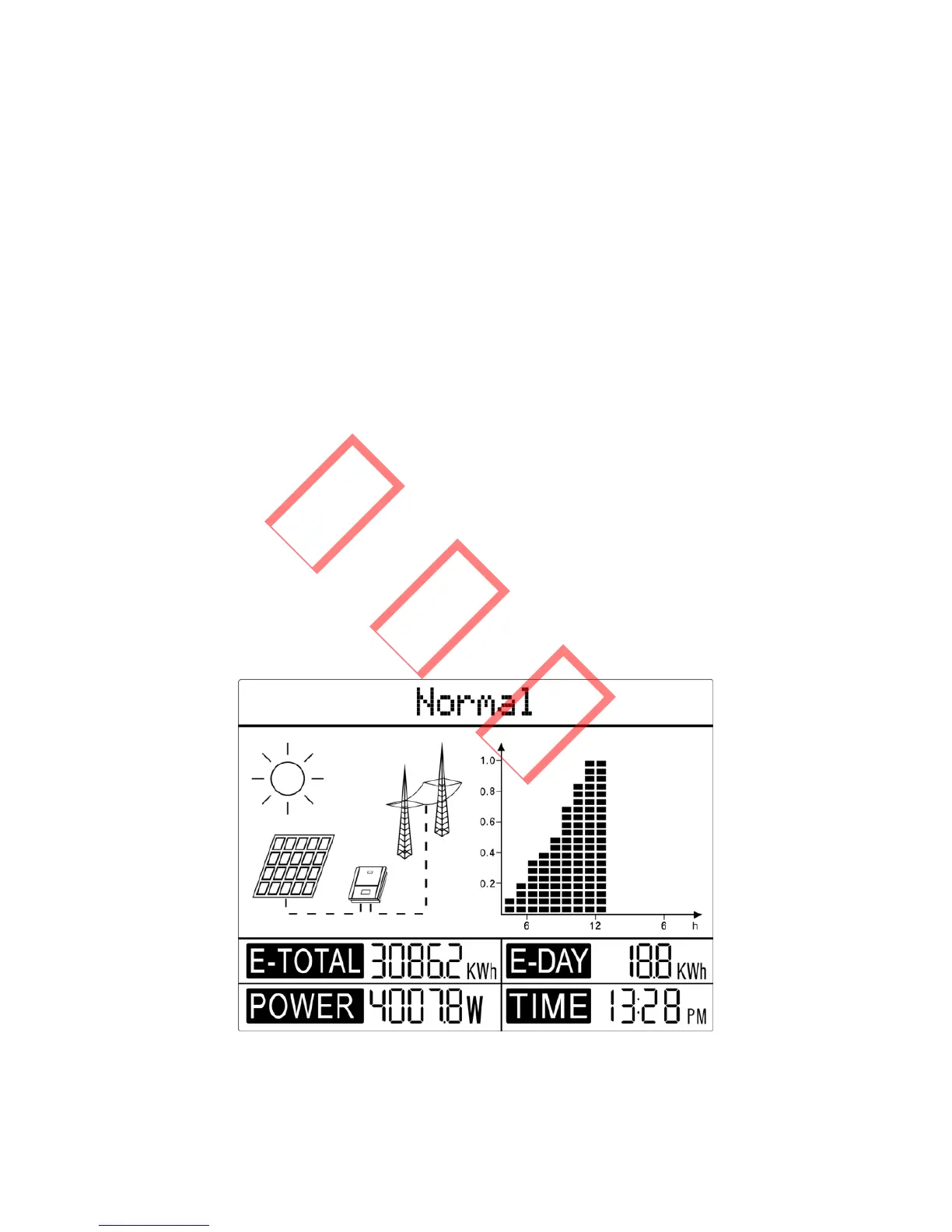

A A schematic of the display screen is shown below:
Figure 4.3-1
To Next Page
