21
connector according to procedures B, C and D.
F The inverter can communicate with an EzLogger through
an RS485 cable. When the EzLogger is connected to a PC
via an Ethernet or USB interface, the inverter can
communicate with the PC directly.
3.4.4 Wireless Communication
The wireless communication function is not compatible with
the 485 communication function.
An EzBee is needed for wireless function. For installation and
detailed information about the wireless function please refer to
the EzBee User Manual.

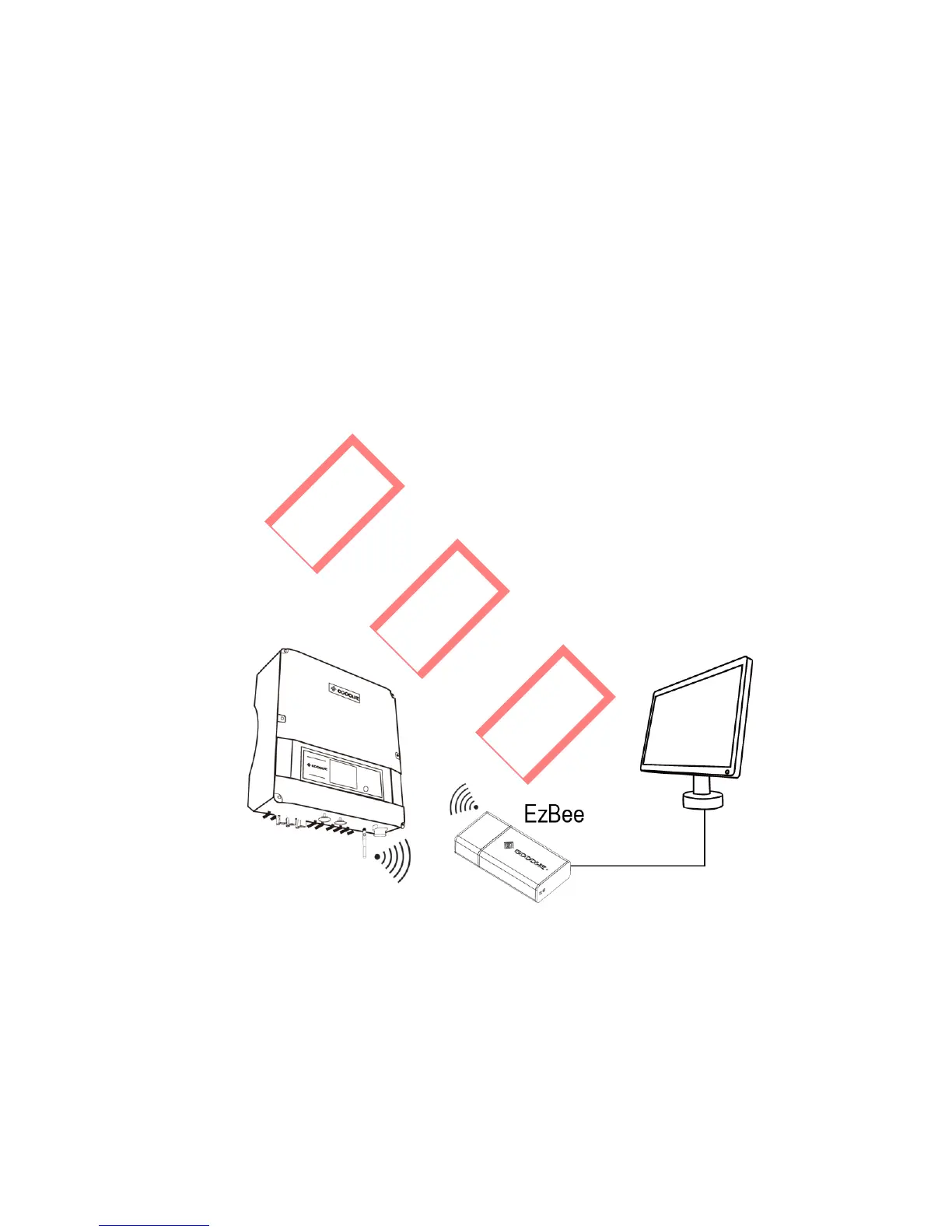

A typical wireless connection for an inverter is shown below.
Figure 3.4.4-1
One Ezbee can monitor up to 50 inverters. The diagram below
shows the wireless connection for multiple inverters.
