20

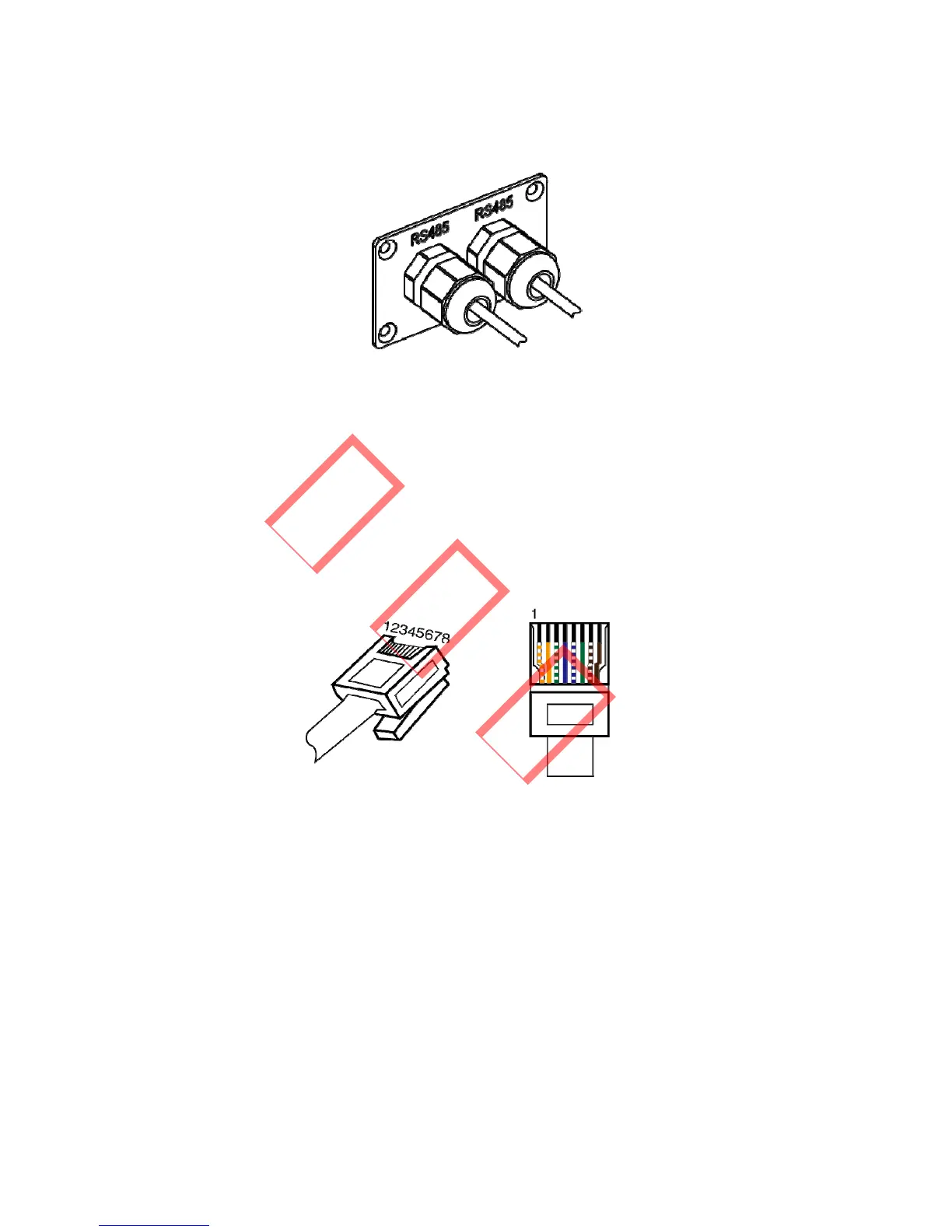

Figure 3.4.3-3
B The RS485 cable has eight wires of different colors. Strip
off the outside envelope to expose the eight wires, then
straighten the end of each wire, and put them in order.
Figure 3.4.3-4
C Ensure each pin of the crystal connection corresponds with
the correct wire of the RS485 cable.
D Plug the eight wires into their corresponding slots of the
crystal connector, and then fasten them using a 485 wire crimper.
E Connect the other end of the RS485 cable to the crystal
