8.2.2 User Interface Introduction
The display menu through the Up, Down, Enter, Esc key to operate the menu, which Enter key is
divided into long press (greater than 3s) and short press, so a total of ve key operation. Press
the Enter Esc key to toggle the 123 menu, use the up and down keys to select the item and
change the parameters, and long press the Enter (short press is also ok for some item) to set the

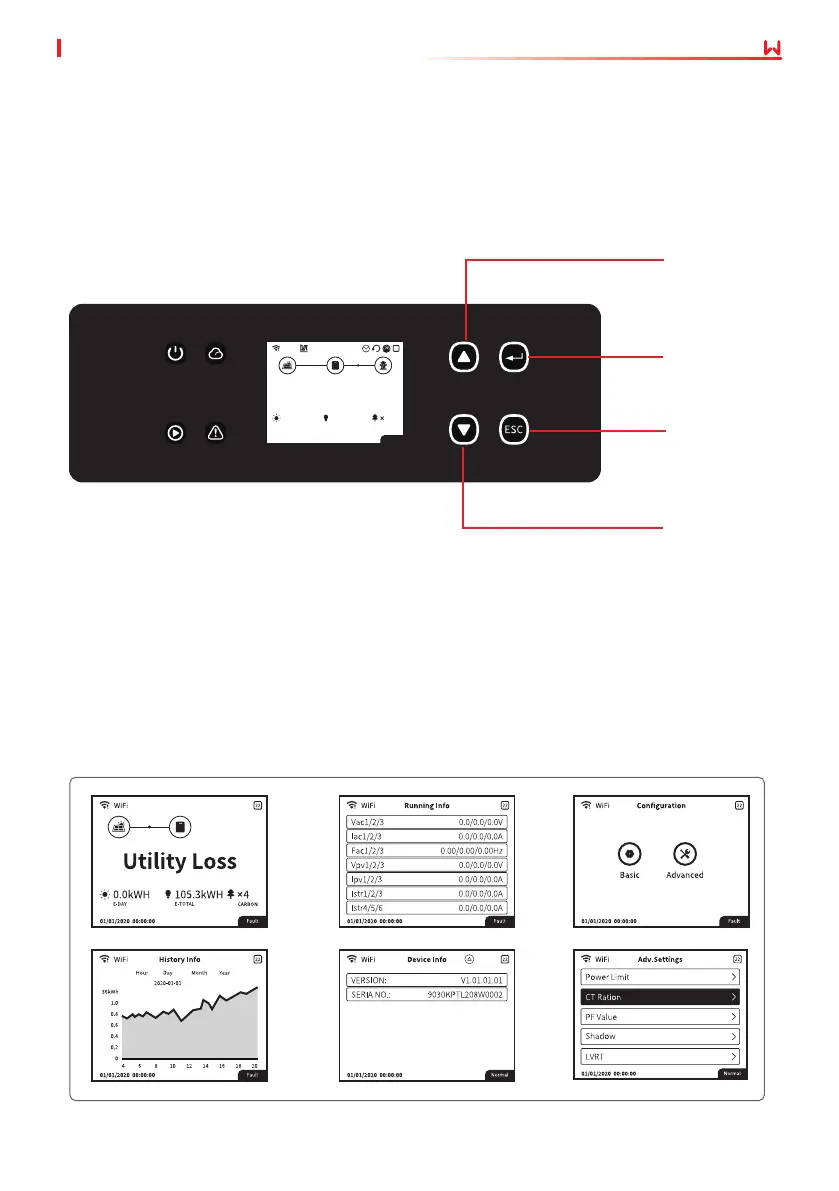

parameters.The display and keys of series is shown in the below gure.
01/01/2020 00:00:00
CARBON
Normal
kW
x
36.00
20.5kWH
WiFi
22
93.3kWH 4
E-TOTALE-DAY
Up
Enter
Cancel
Down
8.2.3 Level 1 Menu
Level 1 menu interface through the up and down key cycle, in the historical information,
conguration, advanced settings interface, pressing the Enter key will enter the Level 2 menu.
To enter the Level 2 menu, select the item from the up and down keys. Press Enter to enter the
project setup menu, go to the Level 3 menu, change the setting contents by pressing the up and
down keys, and press the Enter key to set the contents. If country safety setting is not selected
(shows 'Congure Safety' on display at home page), press any key will enter country safety
setting page.
