05 Installation User Manual V1.3-2023-01-31
14
CAUTION
Move the inverter to the site before installation. Follow the instructions below to avoid
personal injury or equipment damage.
1. Consider the weight of the equipment before moving it. Assign enough personnel to move
the equipment to avoid personal injury.
2. Wear safety gloves to avoid personal injury.
3. Keep balance when moving the equipment.
Step 1 Put the mounting plate on the wall horizontally and mark positions for drilling holes.
Step 2 Drill holes to a depth of 80mm using the hammer drill. The diameter of the drill bit
should be 10mm.
Step 3 Fix the mounting plate on the wall.
Step 4 Grab the handles to lift the inverter, place it on the mounting plate.
Step 5 Tighten the nuts to secure the mounting plate and the inverter.
5.2 Inverter Installation
5.2.2 Installing the Inverter
5.2.1 Moving the Inverter
NOTICE
• Avoid the water pipes and cables buried in the wall when drilling holes.
• Wear goggles and a dust mask to prevent the dust from being inhaled or contacting eyes
when drilling holes.

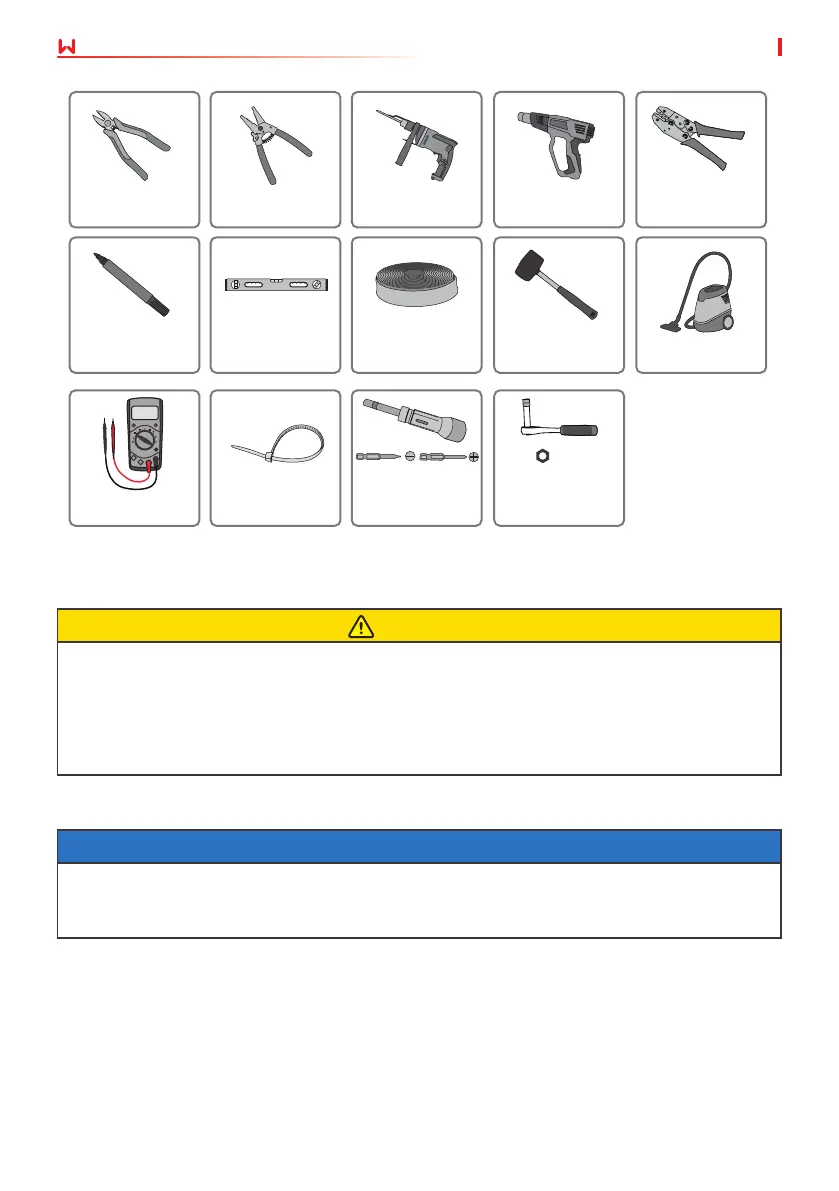

Torque wrenchCable tieMultimeter
M3
M5
M3/M5/M
6/M8
Torque wrench
Diagonal pliers
Marker Level Heat shrink tube Rubber hammer Vacuum cleaner
Wire stripper Hammer drill
Heat gun
DC terminal
crimping tool
To Next Page
