Version: V1.1 11

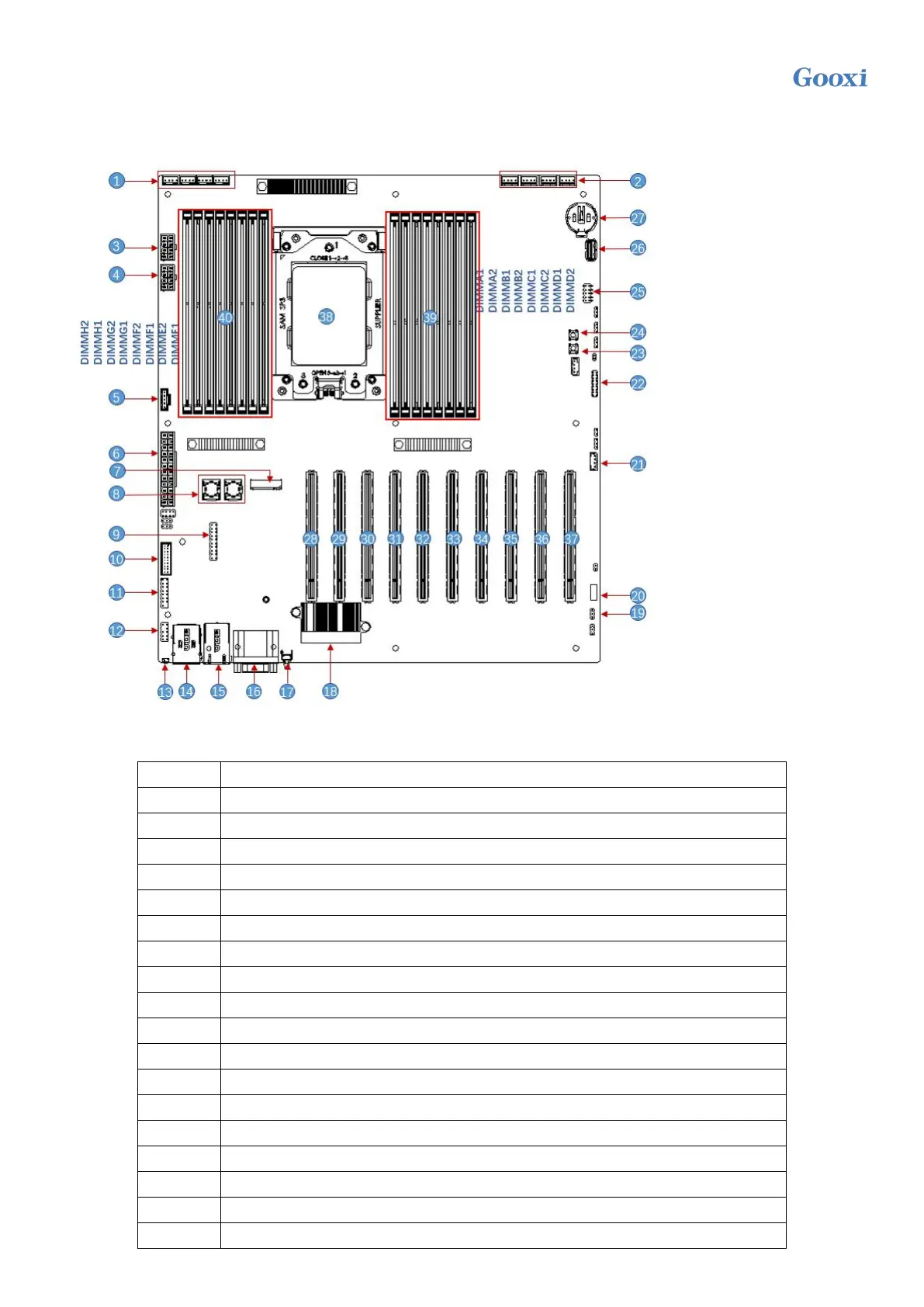

1.4 Motherboard Structure Diagram
Figure 1-1
S/N
Module Name
1
Chassis fan-controlled 4pin interface
2
Chassis fan-controlled 4pin interface
3
ATX 8PIN power supply connector
4
ATX 8PIN power supply connector
5
PMBUS
6
ATX 24PIN power supply connector
7
M.2 slot
8
Mini SAS HD1/HD2 8643 connector
9
LPC TPM/80Port 2x10PIN Header
10
FP USB3.0*2 Header
11
FP VGA Header
12
SPI TPM Header
13
BMC button
14
USB 3.0*2+IPMI LAN
15
RJ45 Gigabyte network port
16
COM port and VGA
17
UID button
18
I350
