Version: V1.1 133
manually, and DHCP is dynamic mode. Setting this option allows BMC to automatically obtain IP address
from DHCP server.
5.1.3 IPMI interface configuration Static mode
If you choose to configure Static mode for IPMI interface, you should pay attention to the following
problems:
(1) If there are multiple IPMI devices in your LAN, you should pay attention to the IP address
between devices can not be repeated, otherwise communication can not be established.
(2) If the IP address of your IPMI device is an intranet address, the terminal device communicating
with it must be in the same network segment as the IP address of the IPMI device.
(3) IP address of IPMI device can be mapped to WAN by routing device to realize remote
management.
(4) IPMI port has the function of obtaining IP address through DHCP.
(5) IPMI supports TCP / IP V4 and TCP / IP V6.
Configure the IP address and subnet mask according to your actual situation. For example, here we
set the IP address to 192.168.0.236 and the subnet mask to 255.255.252.0, as shown in Figure 5-7. After
setting, press F4 to save and exit the BIOS interface.

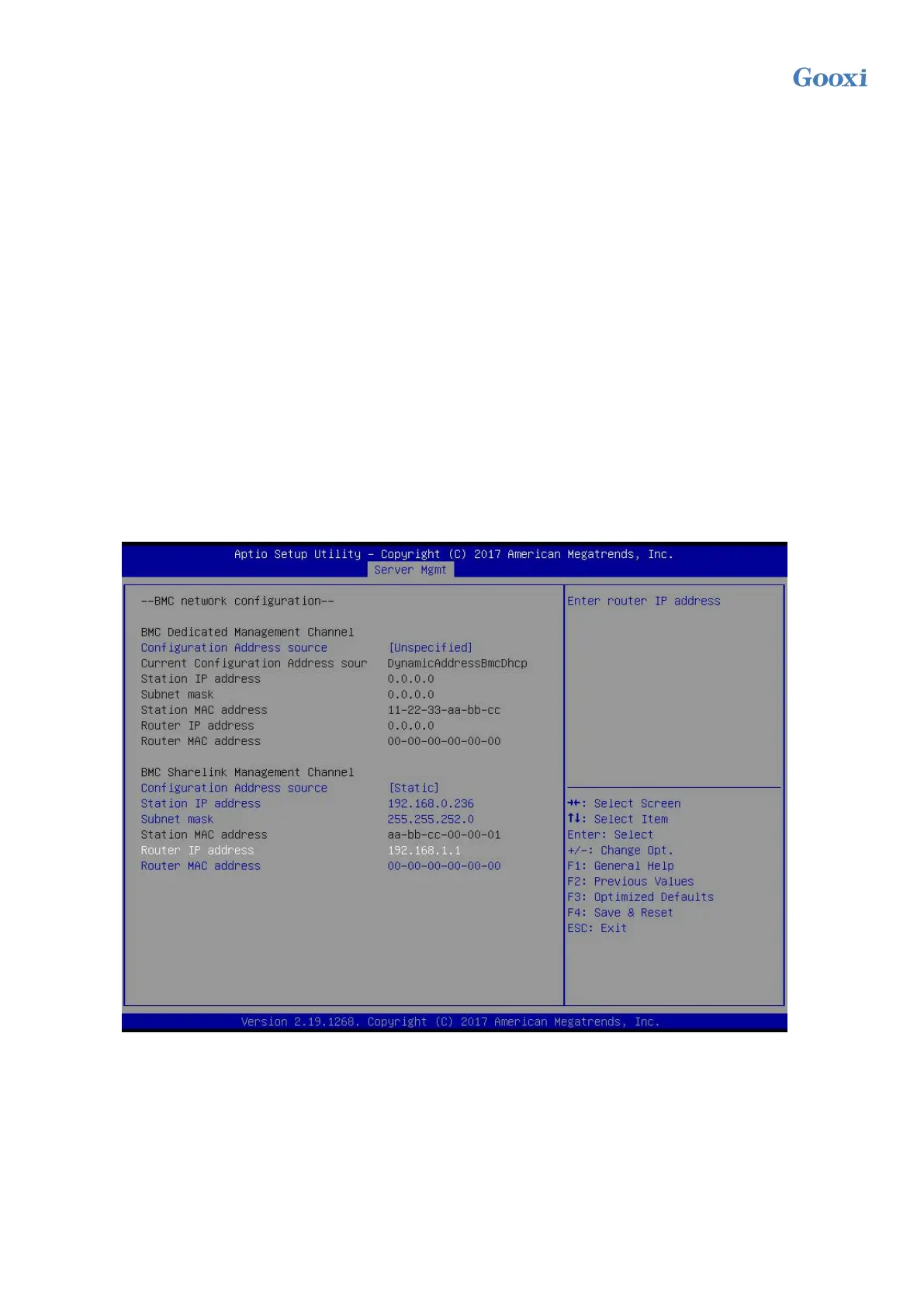

Figure 5-7 Static mode setting
We have finished the operation of configuring IPMI function.
5.1.4 IPMI configuring Java SOL
1. When the system starts up, press the<Del> key to enter the BIOS Setup interface.
2. Switch to the Advanced menu, select serial port console redirection, and press the < ENTER > key.
3. Make sure that the Console Redirection of COM0 is in [Enabled] state. If not, select Console
