Version: V1.1 132
After entering the interface, enter the BMC network configuration option through the keyboard to
enter the following interface, as shown in Figure 5-5.

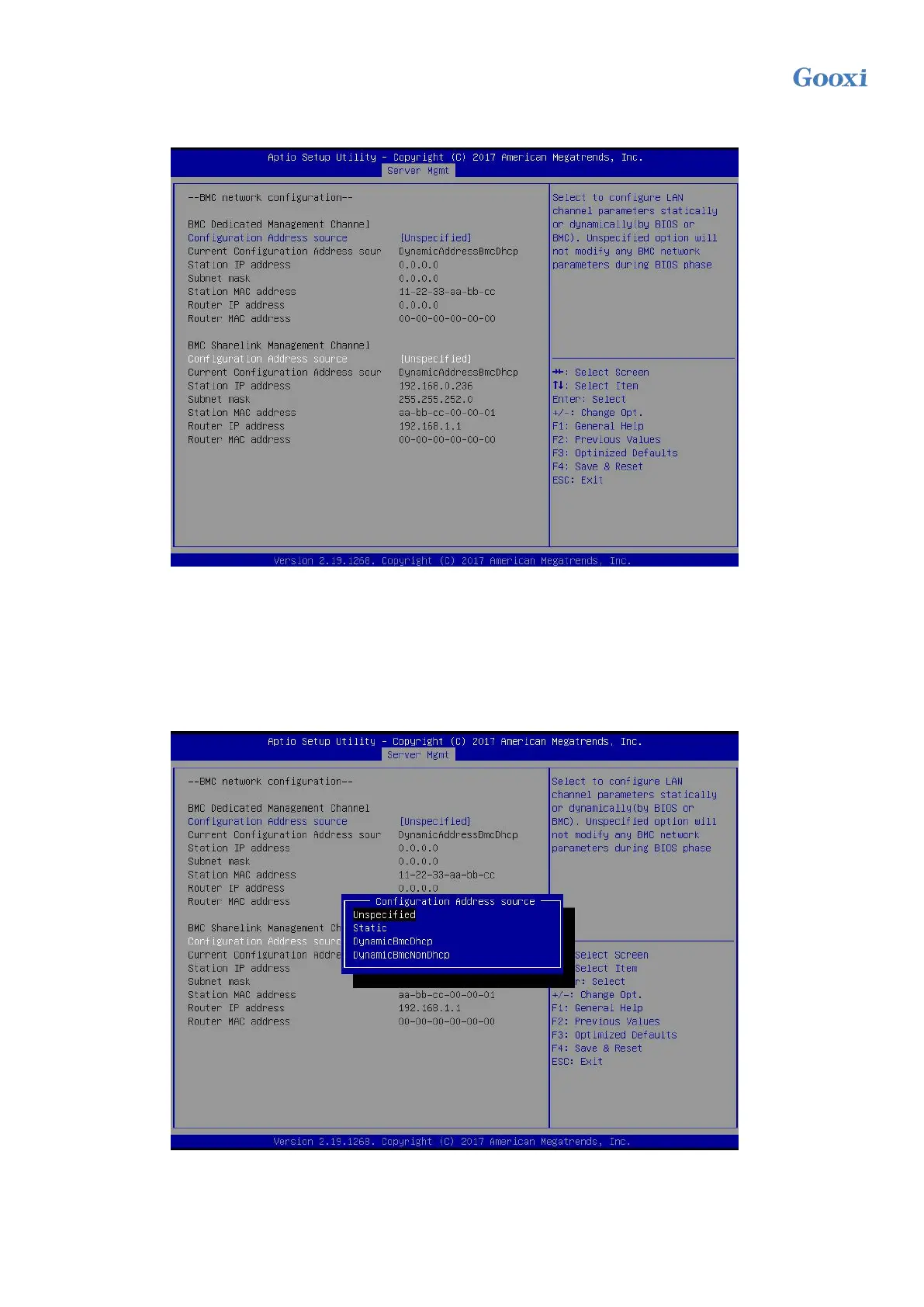

Figure 5-5 BMC net configuration option interface
In this page, you can see two configurable network ports, one is Dedicated network port and the other
is Sharelink network port. Take the shared network port as an example. If you connect a dedicated network
port, the setting method is the same as that of the shared network port. Switch to the configuration address
source option and enter to set the network mode of changing network port, as shown in Figure 5-6.
Figure 5-6 Configure net mode of network port
Here are four network modes that can be configured in this interface, which are Unspecific, Static,
Dynamic BMCDHCP and DynamicBMCNonDHCP. Static is static mode, you can set IP address
