2.3 Installing memory
Motherboard supports 8* DDR4 channels, each channel supports 2* DIMM, 1* CPU supports 16*
DDR4 slots (when only one memory is inserted, it is preferred to insert the socket in the red box in the
figure below. The plastic color of the socket on the board is blue).
Note: For system’s stability, it is recommended to use AND AVL Memory List.

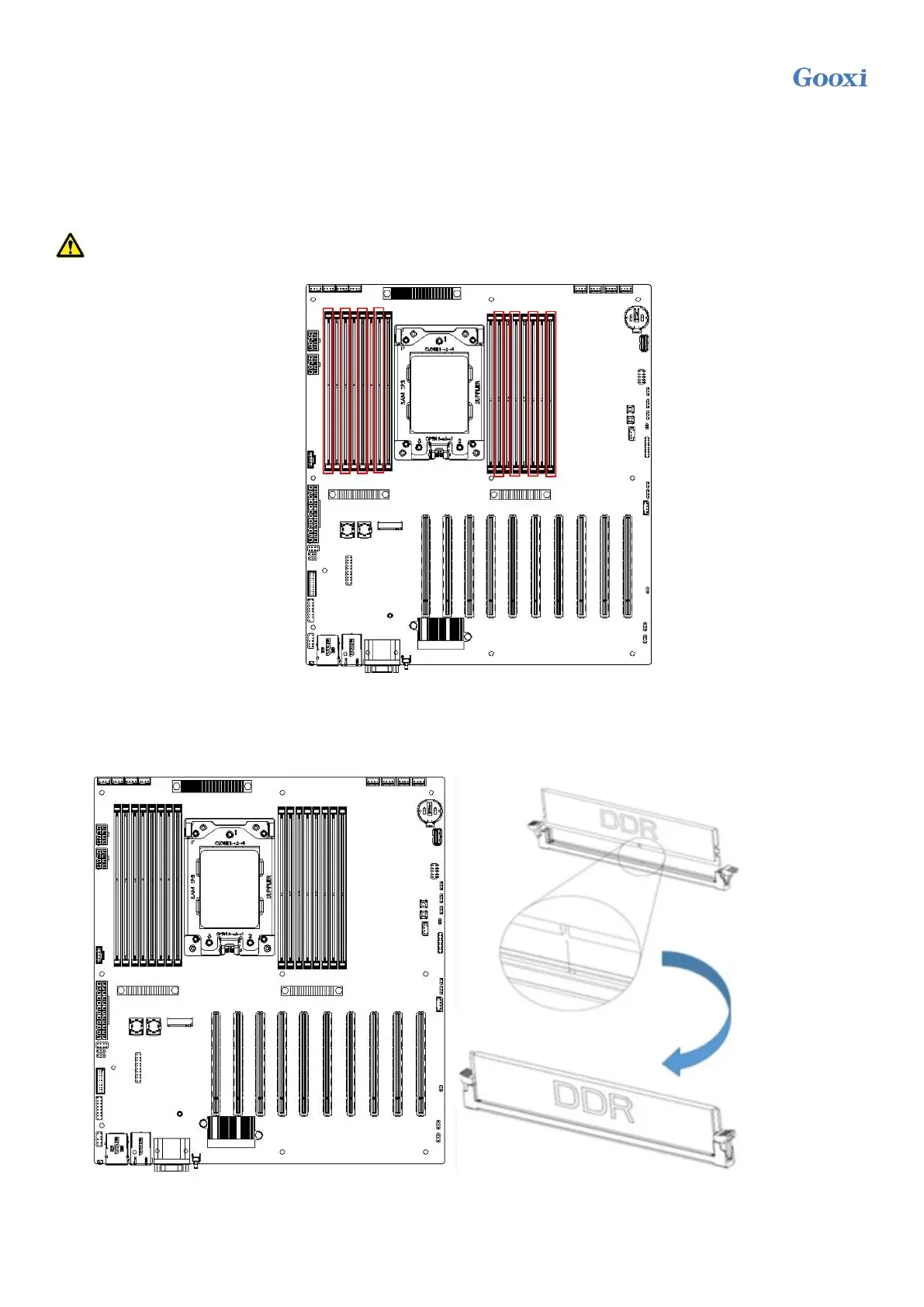

Figure 2-5
Note that the memory gap is consistent with the DIMM slot gap, and each DIMM module is
vertically clamped in place to prevent incorrect installation.
Figure 2- 6
