Gooxi G2SERO-B User Manual

Version: V1.1 70
 Common tasks
Switch disk mode:
Raid card supports switching the following three disk modes.
1. Unconfigured Good: indicates that the physical disk is normal and can be used to configure RAID or
hot spare.
2. Unconfigured Bad: indicates that there is residual RAID information on the physical disk, which
needs to be cleared manually.
3. JBOD: Just a Bunch Of Disks, which means only connects the disks in series to expand the capacity,
but it has no RAID function.
Here we take the example of switching from Unconfigured Good mode to Unconfigured Bad mode.

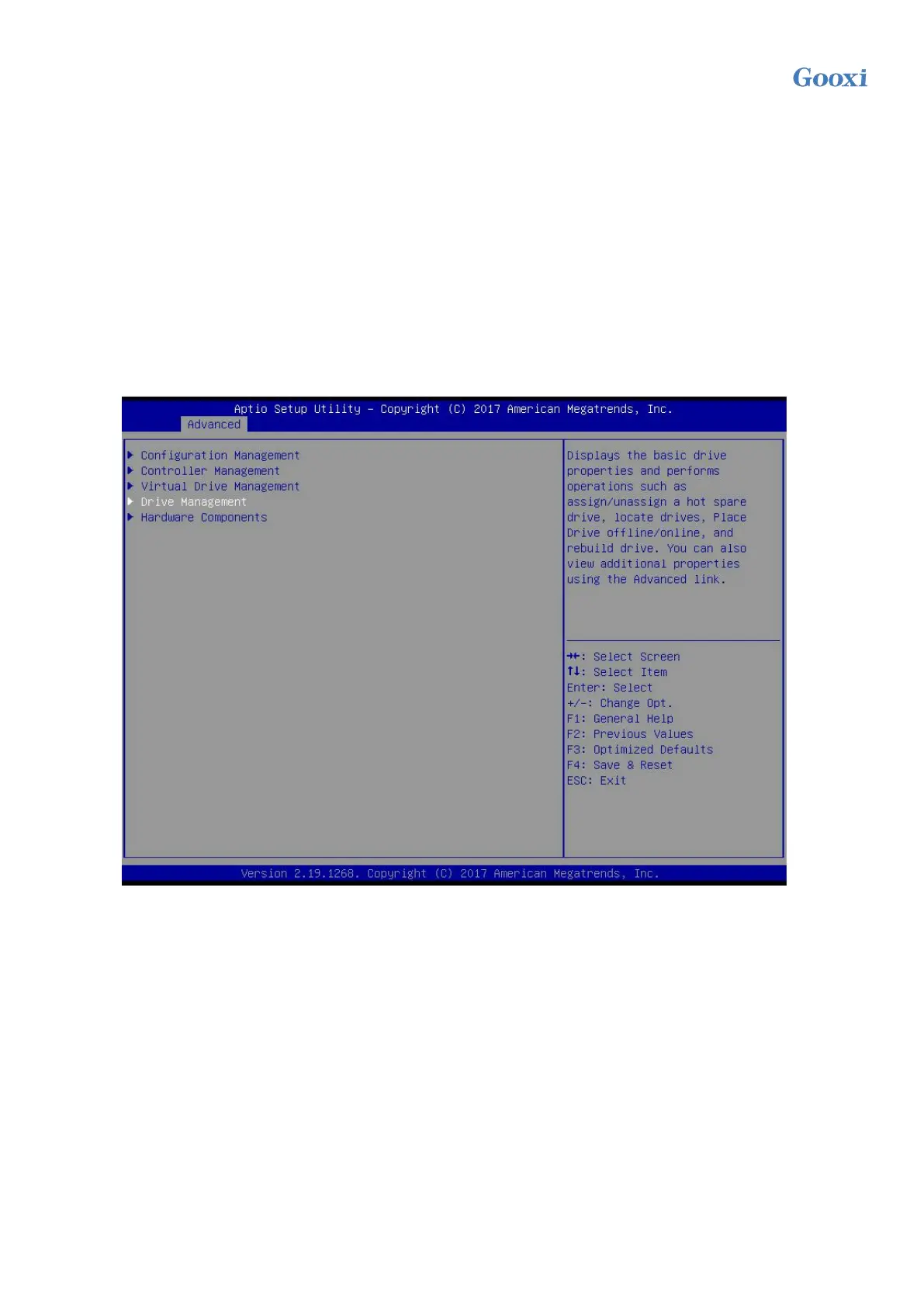

a) As shown in Figure 4-2, in the RAID card configuration interface, select Drive Management and press
Enter.
Figure 4- 2
b) Enter the interface shown in Figure 4-3, select the disk to be configured, and press Enter.
