SHOULD BE FACING THIS DIRECTION
HOLES AT THE TOP OF CORNER POSTS
SIDE OF FORT
CORNER POST
4 X 4 X 96"
T-NUT
LEFT (SWING BEAM)
FRONT OF FORT
NO T-NUT IN
THESE HOLES
(FOR SWING
BEAM MOUNT
USING
CARRIAGE
BOLTS)

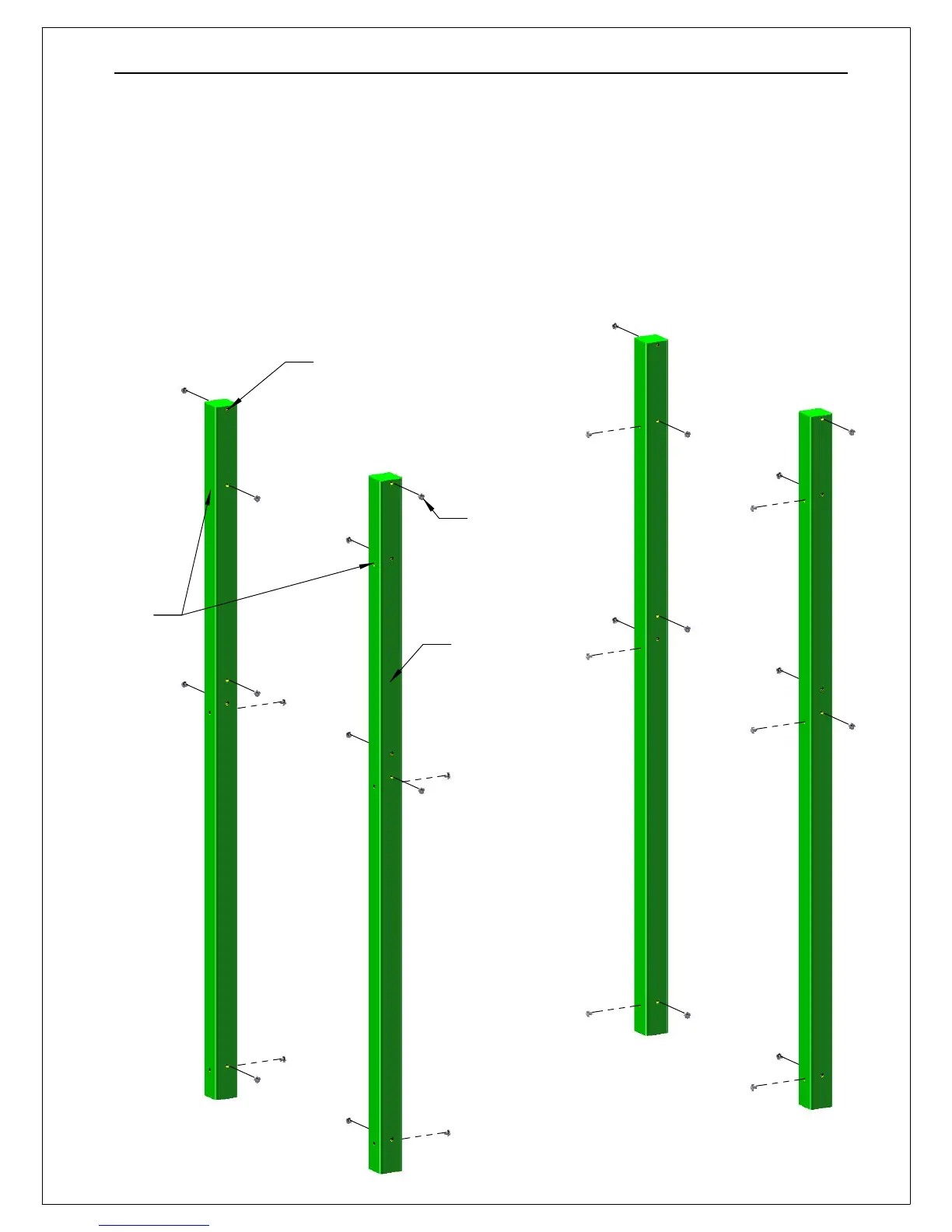

STEP 1: ATTACHING T-NUTS TO THE CORNER POSTS
1: THIS STEP IS CRITICAL TO BUILDING THE FORT PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO
DIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS.
2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS.
3: LAY OUT EACH OF THE 4 X 4 X 96" CORNER POSTS IN THE AREA YOU INTEND ON BUILDING THE FORT SIDE OF
THE PLAYSET.
4: USE THE DIAGRAM BELOW TO CORRECTLY IDENTIFY AND ORIENT THE NECESSARY DIRECTION THE POSTS
SHOULD FACE.
5: USE A HAMMER TO SEAT THE T-NUTS AFTER INSERTING THEM INTO THE HOLES SHOWN IN THE DIAGRAM BELOW.
6: THE BARREL OF THE T-NUT SHOULD GO IN THE HOLE FIRST. HAMMER THE T-NUT UNTIL IT IS FLUSH/ALMOST FLUSH
TO THE CORNER POSTS.
