Gorilla Playsets Chateau - STEP 2 & 3: ASSEMBLING SIDE FRAMES

STEP 2: ASSEMBLING THE RIGHT SIDE FRAME
1: LAY THE RIGHT SIDE CORNER POSTS ON THE GROUND IN THEIR PROPER ORIENTATION.
2: LAY THE 2 X 6 X 78" ROPE LADDER RUNNER ON TOP OF THE RIGHT SIDE CORNER POSTS AT THE BOTTOM OF THE
CORNER POSTS. THE OFFSET HOLES IN THE SANDBOX BOARD MUST FACE DOWNWARD.
3: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE
T-NUTS INSTALLED ON THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
4: LAY THE 2 X 6 X 47-1/2" BOTTOM PANEL BOARD ON TOP OF THE RIGHT SIDE CORNER POSTS IN THE MIDDLE OF
THE CORNER POSTS. THE OFFSET HOLES IN THE BOTTOM PANEL BOARD MUST FACE DOWNWARD.
5: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE BOTTOM HOLES OF THE BOTTOM PANEL
BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS. THE TOP HOLES WILL BE USED LATER.
6: LAY THE 2 X 4 X 78" ROPE LADDER SUPPORT ON TOP OF THE RIGHT SIDE CORNER POSTS.
7: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE ROPE LADDER SUPPORT
TO THE T-NUTS INSTALLED ON THE CORNER POSTS.
8: DO NOT INSTALL ANY LAG SCREWS AT THIS TIME.

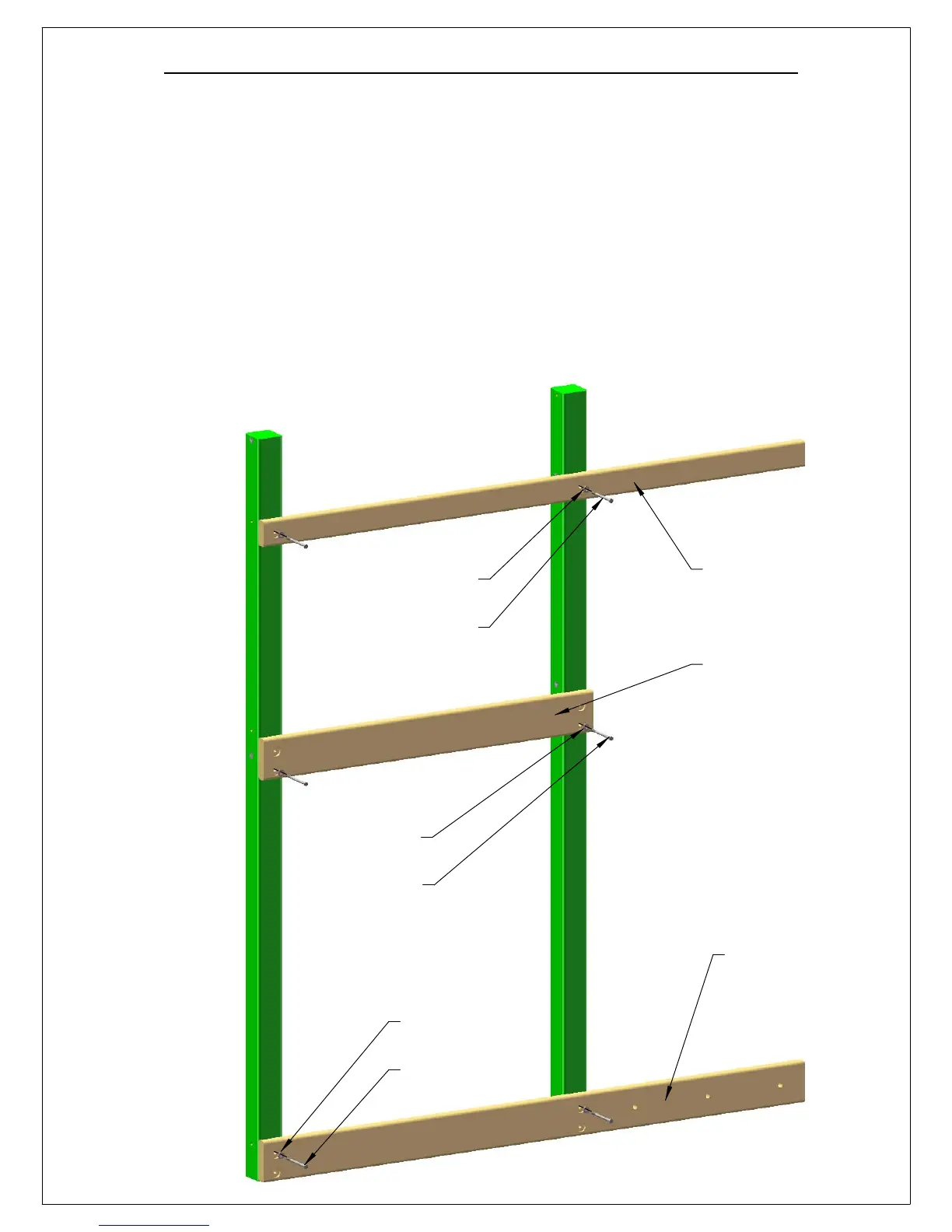

2 X 4 X 78"
5/16" WASHER
ROPE LADDER
SUPPORT
(HOLES ON CENTER)
(OFFSET HOLES DOWN)
RUNNER
FRONT OF FORT
HEX BOLT
5/16" WASHER
5/16" X 4-1/2"
HEX BOLT
5/16" X 4-1/2"
HEX BOLT
5/16" WASHER
5/16" X 4-1/2"
ROPE LADDER
2 X 6 X 78"
2 X 6 X 47-1/2"
BOTTOM PANEL
BOARD
(OFFSET HOLES DOWN)
