STEP 20: SWING BEAM PLATE

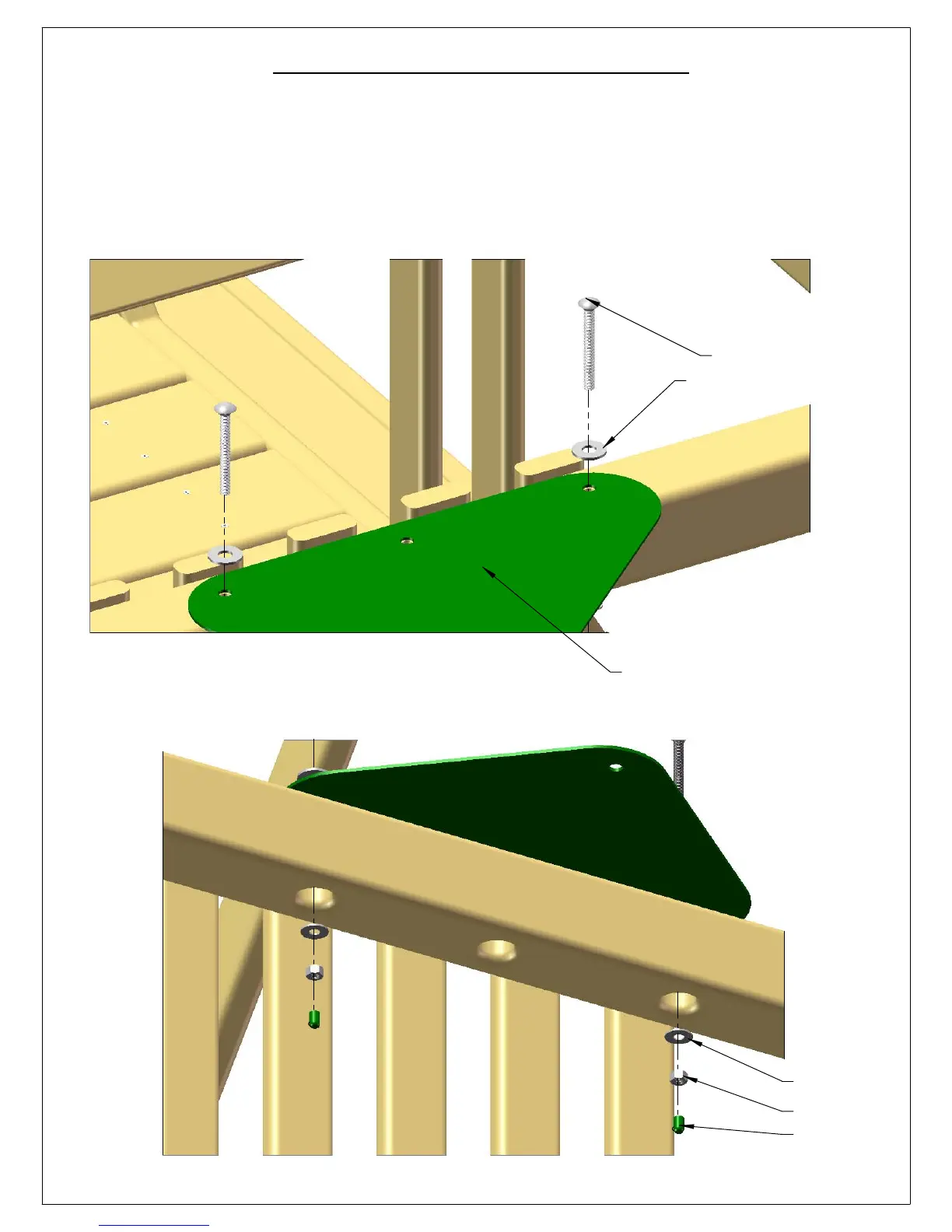

1: PLACE THE SWING BEAM PLATE ON TOP OF THE SWING BEAM SUPPORT, LINING UP THE PILOT HOLES.
2: FASTEN THE SWING BEAM PLATE TO THE SWING BEAM SUPPORT USING 3-1/2" CARRIAGE BOLTS WITH 1/2"
WASHERS ON TOP, AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH, IN THE COUNTER-SUNK HOLES
OF THE SWING BEAM SUPPORT. USE BOLT CAPS TO COVER ANY EXPOSED THREADS.
3: LEAVE THE MIDDLE HOLE EMPTY, IT WILL BE USED LATER.
4: USE VICE GRIPS TO HOLD CARRIAGE BOLTS IN PLACE WHEN INSTALLING.
3/8" NUT
3/8" WASHER
BOLT CAP
1/2" WASHER
BOLT
3-1/2"
CARRIAGE
SWING BEAM PLATE
