Gorilla Treasure Trove II User Manual

NOTE:
2 X 4 X 14"
CLARITY.
FROM VIEW FOR
OF FORT
FRONT
BOARDS REMOVED
BOTTOM PANEL
#8 X 2"
WOOD SCREWS
5/4 X 4 X 40-3/8"
DECK SPACER

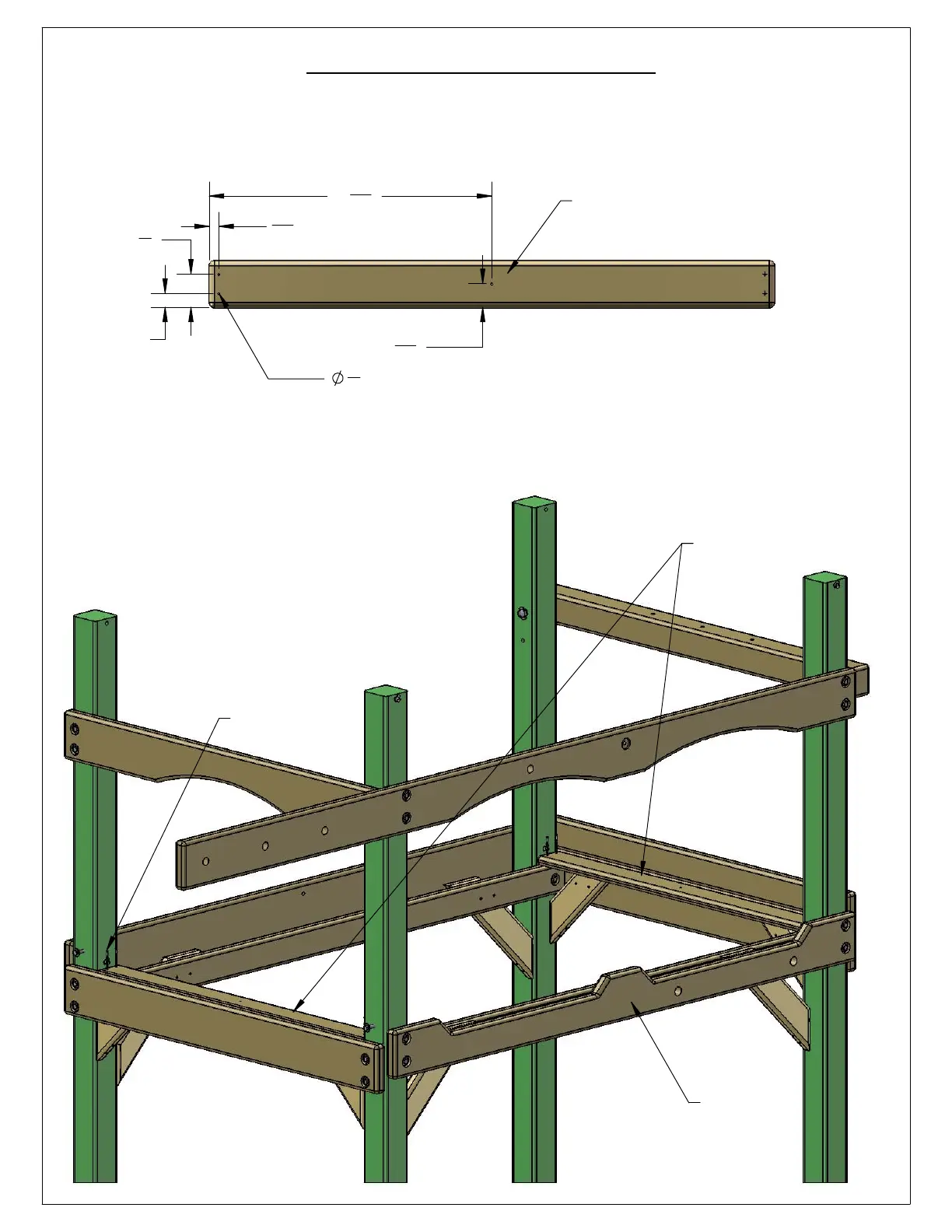

STEP 11: DECK SPACERS
THE FOLLOWING STEP IS RECOMMENDED TO PREVENT POSSIBLE SPLITS IN THE WOOD.
1: PRE-DRILL THE ENDS OF THE 5/4 X 4 X 40-3/8" DECK SPACERS TO PREVENT INSTALLATION DAMAGE. PRE-DRILL
BOTH ENDS WITH A 1/8" DRILL BIT AT THE DIMENSIONS SHOWN BELOW. THE HOLE AT 20-3/16" ONLY NEEDS TO BE
DRILLED ONCE. THIS HOLE IS TO ATTACH THE CENTER DECK SUPPORT TO THE DECK SPACER.
2: PLACE THE 5/4 X 4 X 40-3/8" DECK SPACER AT ONE END OF THE FORT. CENTER THE BOARD BETWEEN THE
CORNER POSTS AND ATTACH IT WITH 2" WOOD SCREWS THROUGH THE PREDRILLED HOLES INTO THE DECK
SUPPORT BELOW. NOTE THE TOP OF THE SCREW HEAD SHOULD BE FLUSH TO THE TOP OF THE DECK SPACER.
3
11
16
3
"
11
"
1"
"
20 "
16
16
8
2
1
1
8
"
5/4 X 4 X 40-3/8"
DECK SPACER
56
