Gorilla Treasure Trove II User Manual

OF FORT
FRONT
BOTTOM PANEL
BOARD
WASHER
5/16"
2 X 4 X 47-1/2"
5/16" X 3-1/2"
LAG SCREW
5/16" X 3-1/2" LAG SCREW
5/16" WASHER
2 X 4 X 14"
BOTTOM PANEL BOARD
COUNTER-SUNK HOLES
ON CENTER
FRONT OF FORT

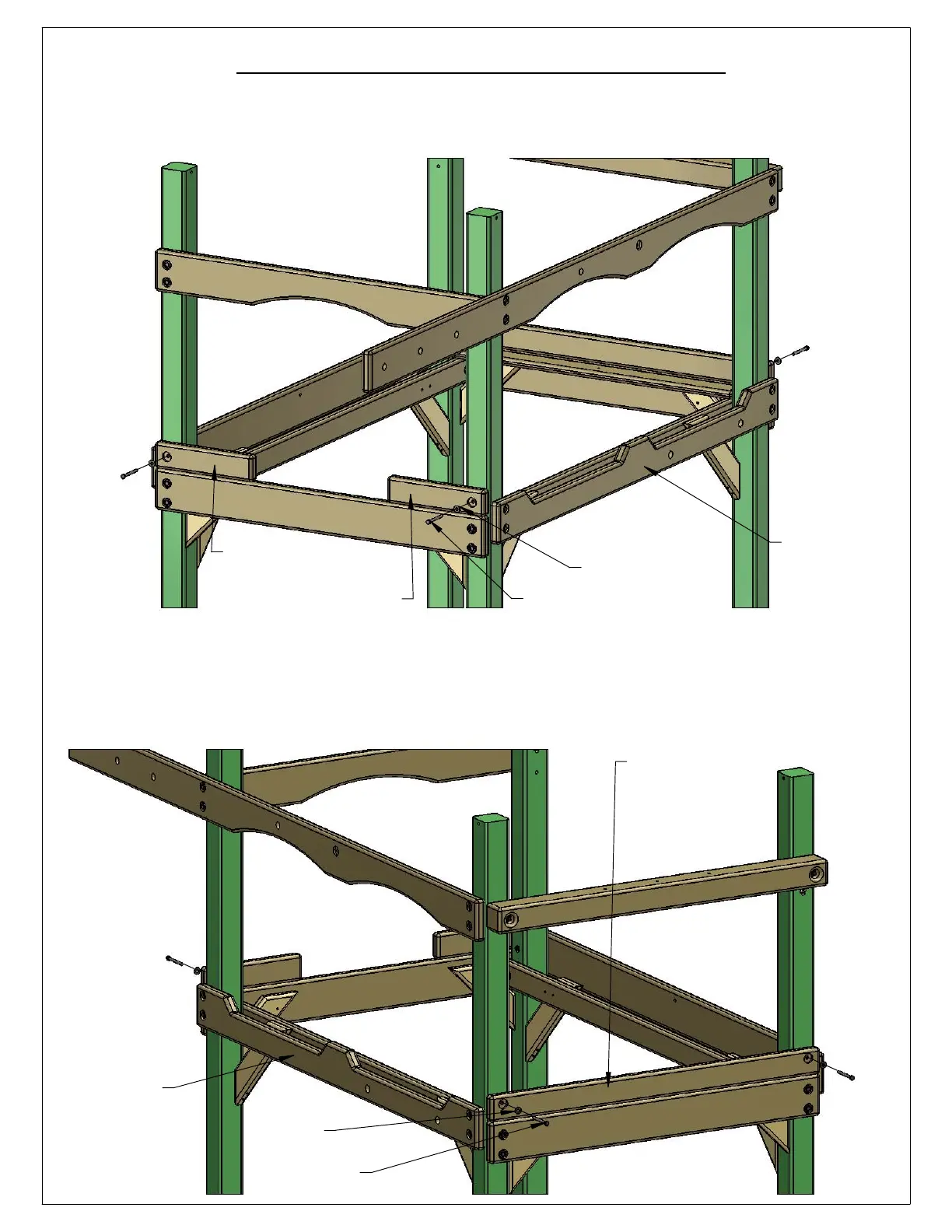

STEP 10: BOTTOM PANEL BOARDS
2: PLACE THE 2 X 4 X 47-1/2" BOTTOM PANEL BOARD ON TOP OF THE 2 X 6 PANEL BOARD
WITH OFFSET HOLES UP AND FASTEN TO THE CORNER POSTS WITH 5/16" X 3-1/2" LAG
SCREWS AND 5/16" WASHERS.
1: PLACE THE 2 X 4 X 14" BOTTOM PANEL BOARD ON TOP OF THE 2 X 6 PANEL BOARD
AND FASTEN TO THE CORNER POSTS WITH 5/16" X 3-1/2" LAG SCREWS WITH 5/16"
WASHERS.
55
