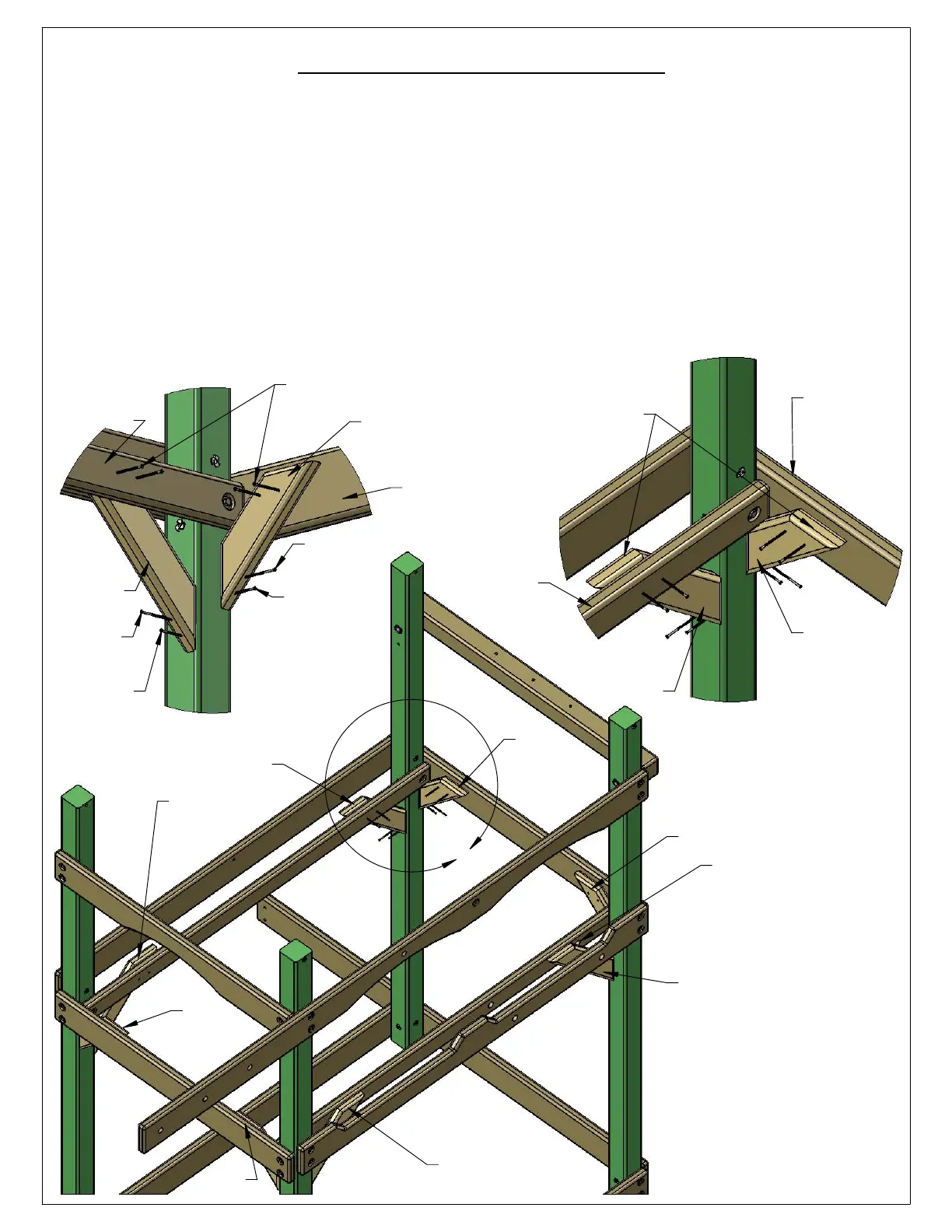

STEP 9: ANGLE SUPPORTS
1: FOUR 2 X 4 X 13" ANGLE SUPPORTS ARE MOUNTED UNDER THE DECK ON THE LEFT AND
RIGHT SIDES OF THE PLAY SET TO THE 2 X 6 BOTTOM PANEL BOARDS. THE TOP OF THE
ANGLE SUPPORT SHOULD BE FLUSH OR LOWER THAN THE TOP OF THE DECK SUPPORT.
2: AT THE TOP USE 2-1/2" WOOD SCREWS THROUGH THE DECK SUPPORT INTO THE ANGLE
SUPPORT. AT THE BOTTOM USE ONE 2" AND ONE 3" WOOD SCREW TO FASTEN THE ANGLE
SUPPORT TO THE CORNER POST.
3: FOUR 2 X 4 X 18" ANGLE SUPPORTS ARE MOUNTED UNDER THE DECK ON THE FRONT
AND REAR OF THE PLAY SET TO THE 2 X 4 DECK SUPPORTS. THE TOP OF THE ANGLE
SUPPORT SHOULD BE FLUSH OR LOWER THAN THE TOP OF THE DECK SUPPORT.
4: AT THE TOP USE TWO 2-1/2" WOOD SCREWS THROUGH THE DECK SUPPORT INTO THE
ANGLE SUPPORT. AT THE BOTTOM USE ONE 2" AND ONE 3" WOOD SCREW TO FASTEN THE
ANGLE SUPPORT TO THE CORNER POST.
SUPPORT
2 X 4 X 18"
DECK
SCREW
3" WOOD
2 X 4 X 13"
ANGLE
ANGLE
SUPPORT
SCREW
WOOD
2" WOOD
SCREW
SUPPORT
SCREW
2" WOOD
SCREW
3" WOOD
2-1/2"
2 X 6
BOTTOM
PANEL
BOARD
2 X 4 X 18"
2 X 4 X 13"
DETAIL A
SCALE 1 : 8
ANGLE
SUPPORT
THAN THE DECK SUPPORT
PANEL
SHOULD BE FLUSH OR LOWER
BOARD
BOTTOM
SUPPORT
ANGLE
TOP OF ANGLE SUPPORTS
2 X 6
2 X 4
DECK
SUPPORT
13"
13"
18"
18"
18"
18"
13"
13"
A
DO NOT BLOCK THIS
HOLE. MOVE THE
ANGLE SUPPORT DOWN
IF IT OVERLAPS THE HOLE.
