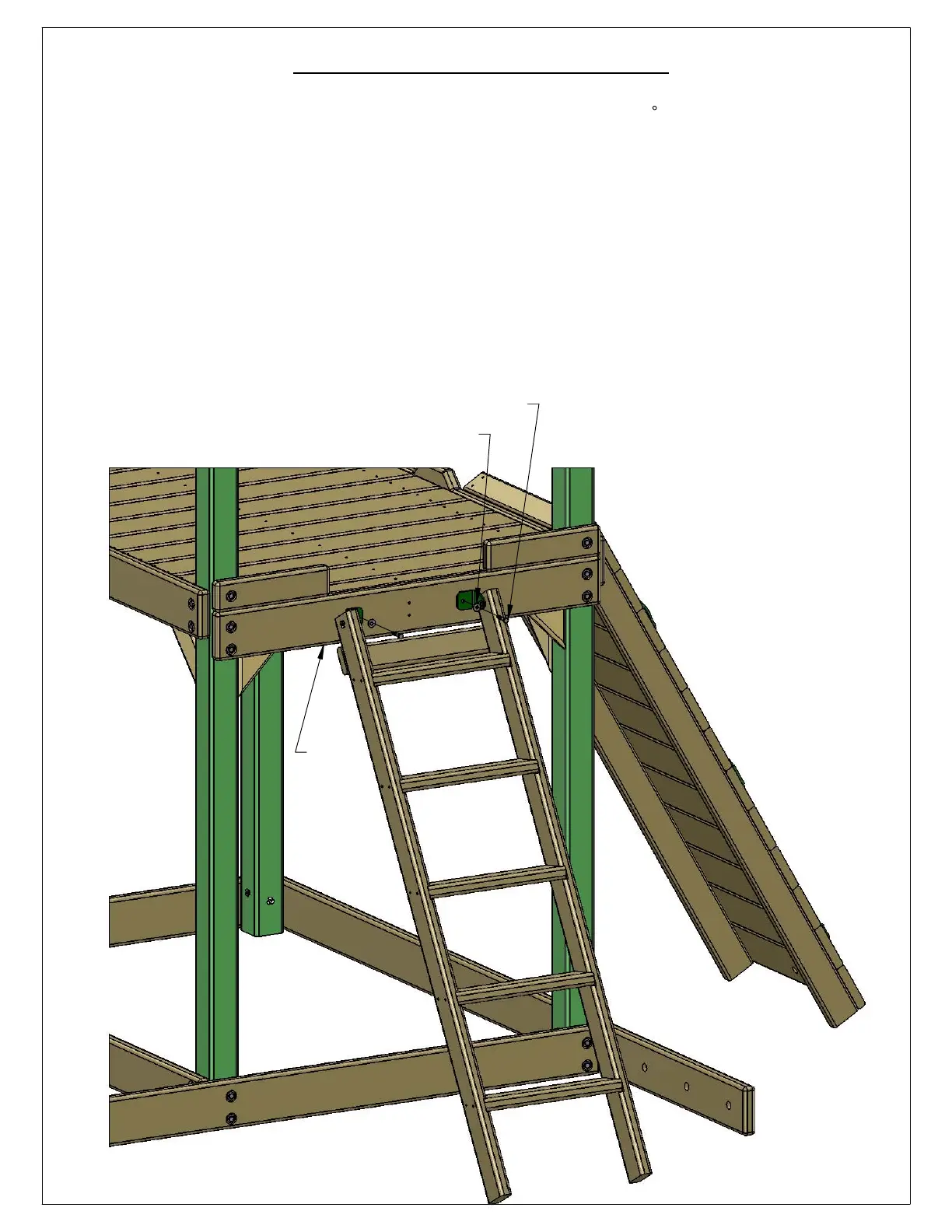

STEP 20: LADDER TO FORT
1: PLACE THE LADDER INTO POSITION ON THE LEFT SIDE OF THE FORT AS SHOWN BELOW.
CENTER THE LADDER HORIZONTALLY ON THE 2 X 6. CENTER THE 90 BRACKETS VERTICALLY
ON THE 2 X 6. USE THE HOLES IN THE LADDER BRACKETS AS A TEMPLATE TO DRILL 3/8" HOLES
THROUGH THE BOTTOM PANEL BOARD.
2: FROM THE UNDERSIDE OF THE DECK INSERT A T-NUT INTO THE BACK SIDE OF THE 3/8"
HOLES ON THE BOTTOM PANEL BOARD.
3: ATTACH THE LADDER WITH 5/16" X 1-1/2" HEX BOLTS AND 5/16" WASHERS.
4: WHEN THE BRACKETS ARE SECURE AND THE LADDER IS IN ITS FINAL POSITION, TIGHTEN THE
5/16" X 1-1/2" BOLTS ON THE LADDER SIDES.
T-NUTS
UNDER
DECK
IN HOLES.
5/16" WASHER
5/16" HEX BOLT
65
