Gorilla Treasure Trove II User Manual

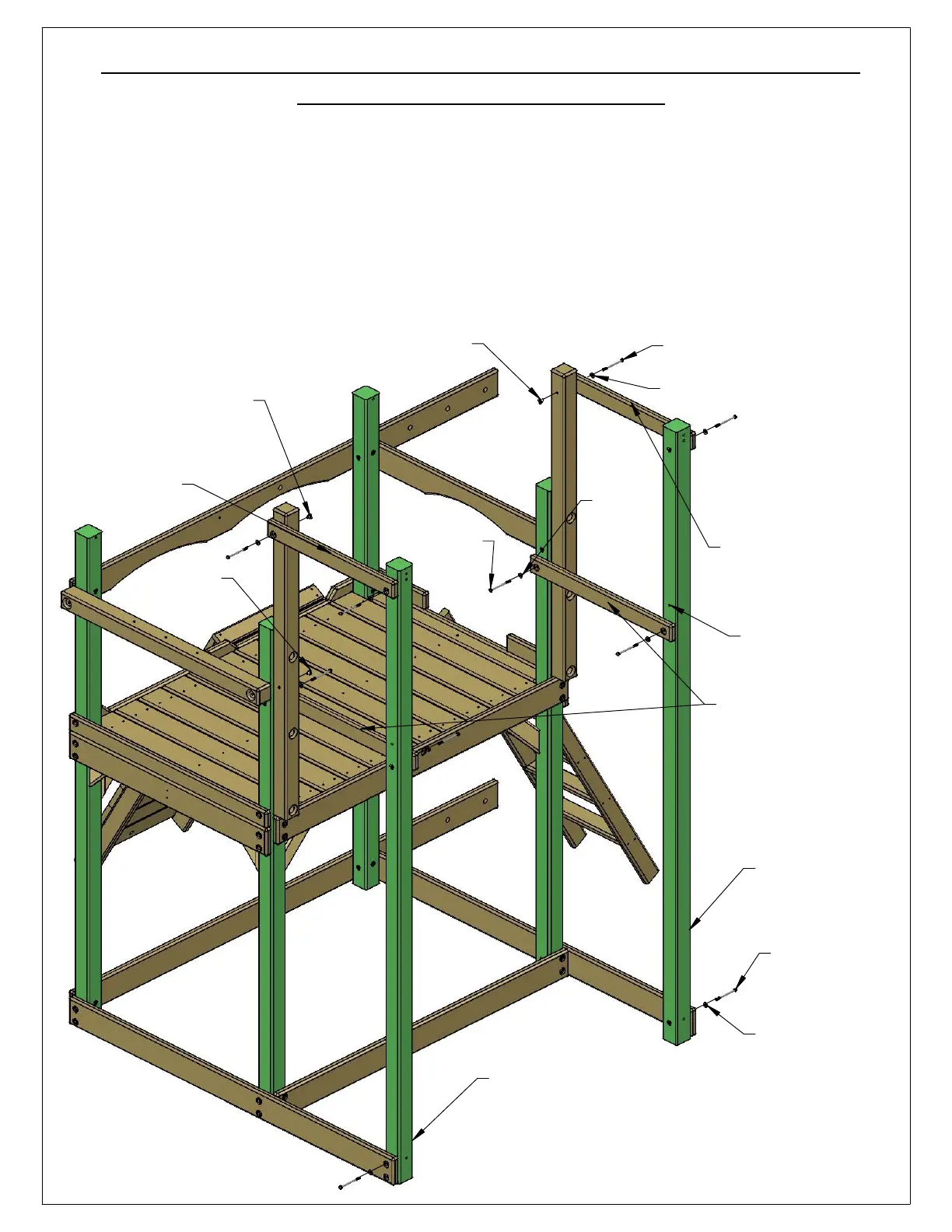

STEP 23: REAR CORNER POSTS & DECK SUPPORTS &
SIDE TOP PANEL BOARDS
1: HAMMER A T-NUT INTO THE HOLES AT THE TOP OF THE LAG POSTS.
TIP: BEFORE YOU INSTALL THESE BOARDS LEAVE THEM ALL A LITTLE LOOSE. WHEN YOU HAVE FASTENERS IN ALL THE
BOARDS GO BACK AND TIGHTEN THEM ALL UP.
2: PLACE THE 2 X 4 X 30-7/16" SIDE TOP PANEL BOARDS (OFFSET DOWN) AT THE TOP OF THE CORNER POSTS ON
THE SIDES OF THE FORT. USE 5/16" X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH EACH SIDE TOP PANEL
BOARD TO THE LAG/CORNER POSTS.
3: PLACE THE 2 X 4 X 34" UPPER LEVEL DECK SUPPORTS ON THE INSIDE OF THE LAG/CORNER POSTS. ATTACH EACH
UPPER LEVEL DECK SUPPORT WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16" WASHERS.
4: ATTACH THE BOTTOM OF THE REAR CORNER POSTS TO THE SIDE SANDBOX BOARDS WITH 5/16" X 4-1/2" HEX
BOLTS AND 5/16" WASHERS.
5: TIGHTEN ALL THE FASTENERS.
(OFFSET DOWN)
T-NUTS
4 X 4 X 120
5/16" X 4-1/2"
HEX BOLT
T-NUTS
5/16" X 4-1/2"
HEX BOLT
2 X 4 X 30-7/16"
(OFFSET DOWN)
SIDE TOP PANEL BOARD
CORNER POST
CORNER POST
4 X 4 X 120
(LEFT SIDE)
HEX BOLT
5/16" X 4-1/2"
5/16" WASHER
WASHER
5/16" WASHER
5/16"
(RIGHT SIDE)
2 X 4 X 34"
UPPER LEVEL
DECK SUPPORT
2 X 4 X 30-7/16"
SIDE TOP PANEL BOARD
T-NUTS
NO T-NUT HERE.
68
