Gorilla Treasure Trove II User Manual

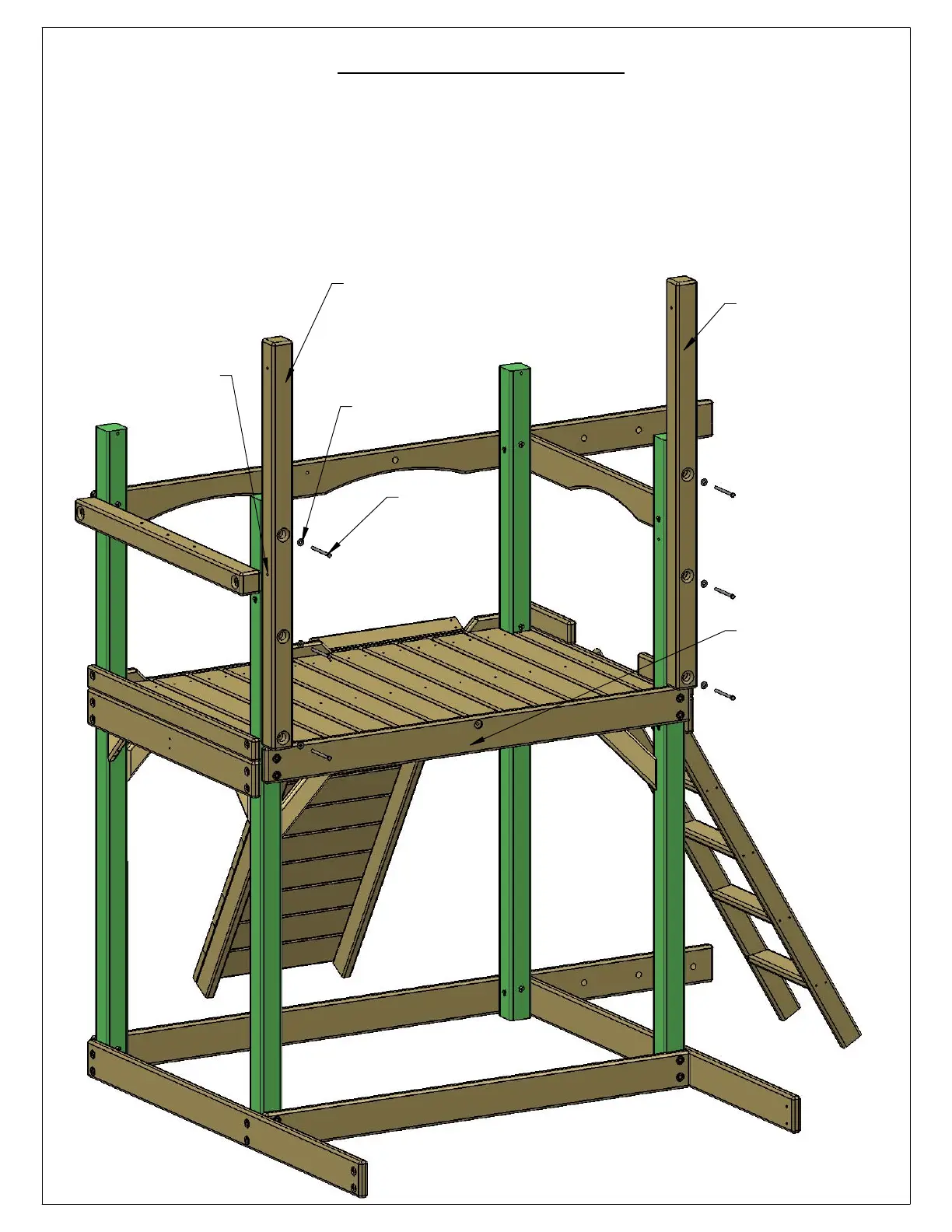

STEP 22: LAG POSTS
1: TWO 4 X 4 X 60-1/4" LAG POSTS WILL BE USED TO EXTEND THE MIDDLE CORNER POSTS
TO ACCEPT THE UPPER LEVEL ROOF.
2: REST THE BOTTOM OF EACH LAG POST ON TOP OF THE 2 X 6 X 70" BACK PANEL BOARD.
3: CENTER EACH LAG POST DIRECTLY OVER THE CENTER OF THE MIDDLE CORNER POSTS.
4: ATTACH EACH LAG POST TO THE MIDDLE CORNER POST WITH 3/8" X 5" LAG SCREWS
AND 3/8" WASHERS.
3/8" WASHER
HERE THAT THE LEFT
LAG POST TARP
4 X 4 X 60-1/4"
3/8" X 5"
LAG POST TARP
4 X 4 X 60-1/4"
LAG SCREW
ROOF - LEFT
ONE DOES NOT HAVE.
ROOF - RIGHT
THIS POST HAS A HOLE
2 X 6 X 70"
BACK PANEL BOARD
67
