Gorilla Treasure Trove II User Manual

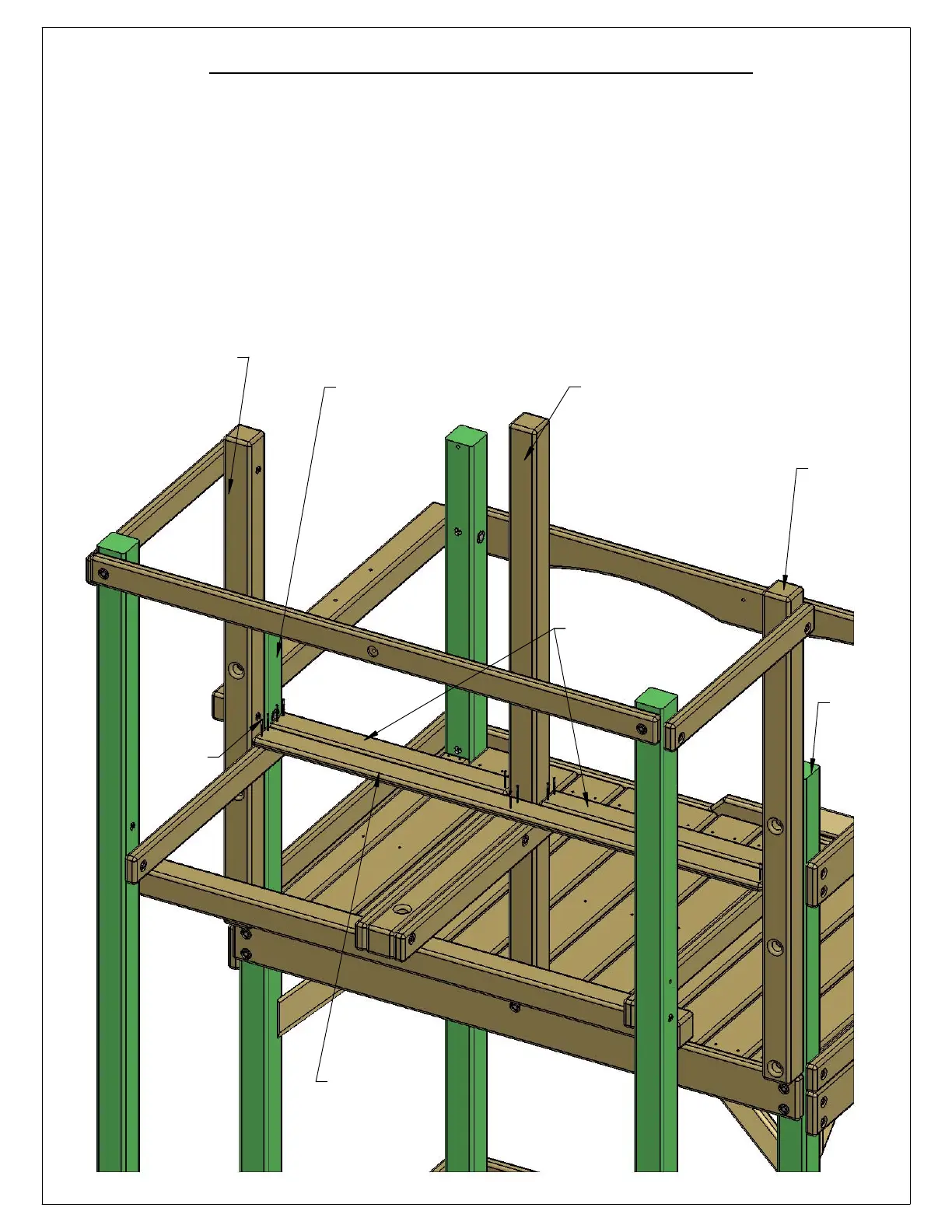

STEP 28: UPPER LEVEL DECK SPACERS
1: MAKE SURE THE REAR CENTER POST LOWER LEVEL HAS AN EQUAL OPENING ON EACH SIDE.
2: PLACE THE 5/4 X 4 X 29-1/2" UPPER DECK SPACERS BETWEEN THE LOWER LEVEL CENTER
POST AND THE MIDDLE CORNER POSTS. ATTACH EACH UPPER DECK SPACER TO THE DECK
SUPPORTS WITH #8 X 2" WOOD SCREWS.
3: PLACE THE 5/4 X 4 X 63" UPPER DECK SPACER BETWEEN THE UPPER LEVEL LAG POSTS.
ATTACH THE UPPER DECK SPACER TO THE DECK SUPPORTS WITH #8 X 2" WOOD SCREWS.
CORNER
MIDDLE CORNER POST
UPPER
POST
UPPER LEVEL LAG POST
POST
MIDDLE
UPPER DECK SPACERS
REAR CENTER POST
5/4 X 4 X 63"
UPPER DECK
LEVEL
SPACER
LOWER LEVEL
LAG
5/4 X 4 X 29-1/2"
#8 X 2"
WOOD
SCREWS
73
