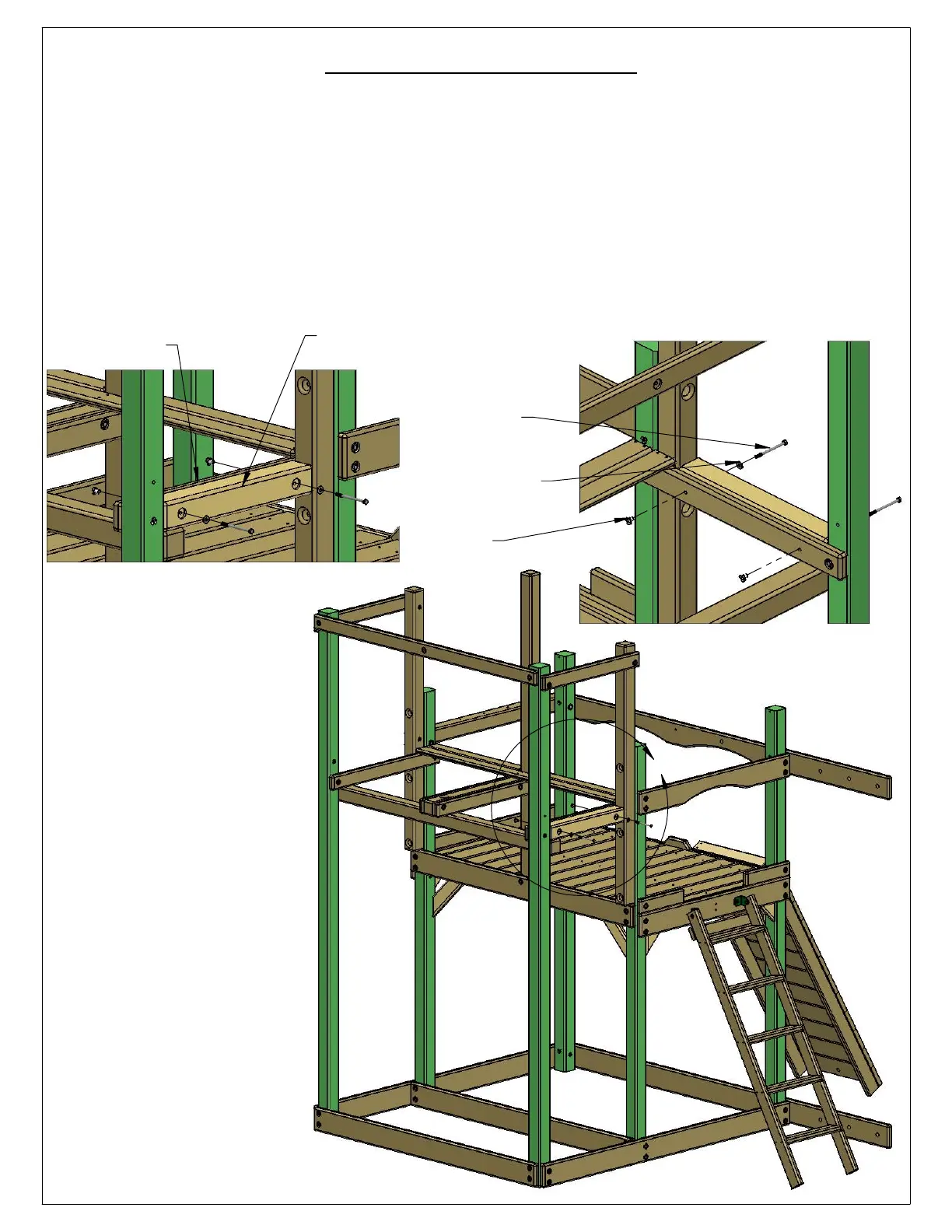

STEP 29: SLIDE BLOCK
1: PLACE THE 4 X 4 X 23-1/2" SLIDE BLOCK AGAINST THE UPPER DECK SUPPORT ON THE
LEFT SIDE (LADDER SIDE) OF THE PLAY SET. THE TOP OF THE BLOCK SHOULD BE FLUSH TO
THE TOP OF THE DECK SUPPORT. THE BLOCK FITS BETWEEN THE LAG POST AND THE REAR
CORNER POST.
2: HAVE AN ASSISTANT HOLD THE BOARD IN POSITION OR USE A CLAMP TO HOLD THE
BOARD FIRMLY TO THE DECK SUPPORT. USE THE HOLES IN THE SLIDE BLOCK AS A
TEMPLATE TO DRILL 3/8" HOLES THROUGH THE DECK SUPPORT.
3: HAMMER T-NUTS INTO THE HOLES ON THE INSIDE FACE OF THE DECK SUPPORT. ATTACH
THE SLIDE BLOCK TO THE DECK SUPPORT WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16"
WASHERS.
A
DETAIL A
SCALE 2 : 25
4 X 4 X 23-1/2" SLIDE BLOCK
DECK SUPPORT
T-NUT
5/16"
WASHER
5/16" X 4-1/2"
HEX BOLT
