Gorilla Treasure Trove II User Manual

2 X 4 X 18" ANGLE SUPPORT - UPPER LEVEL REAR
4 X 4 X 70" UPPER LEVEL UNDER DECK SUPPORT
A
2 X 4 X 18" ANGLE SUPPORT
SCALE 1 : 8
DETAIL A
4 X 4 X 70" UNDER DECK SUPPORT
#8 X 2-1/2" WOOD SCREW (4)
#8 X 2" WOOD SCREW
#8 X 3" WOOD SCREW
FLUSH ON TOP
REAR CORNER
POST

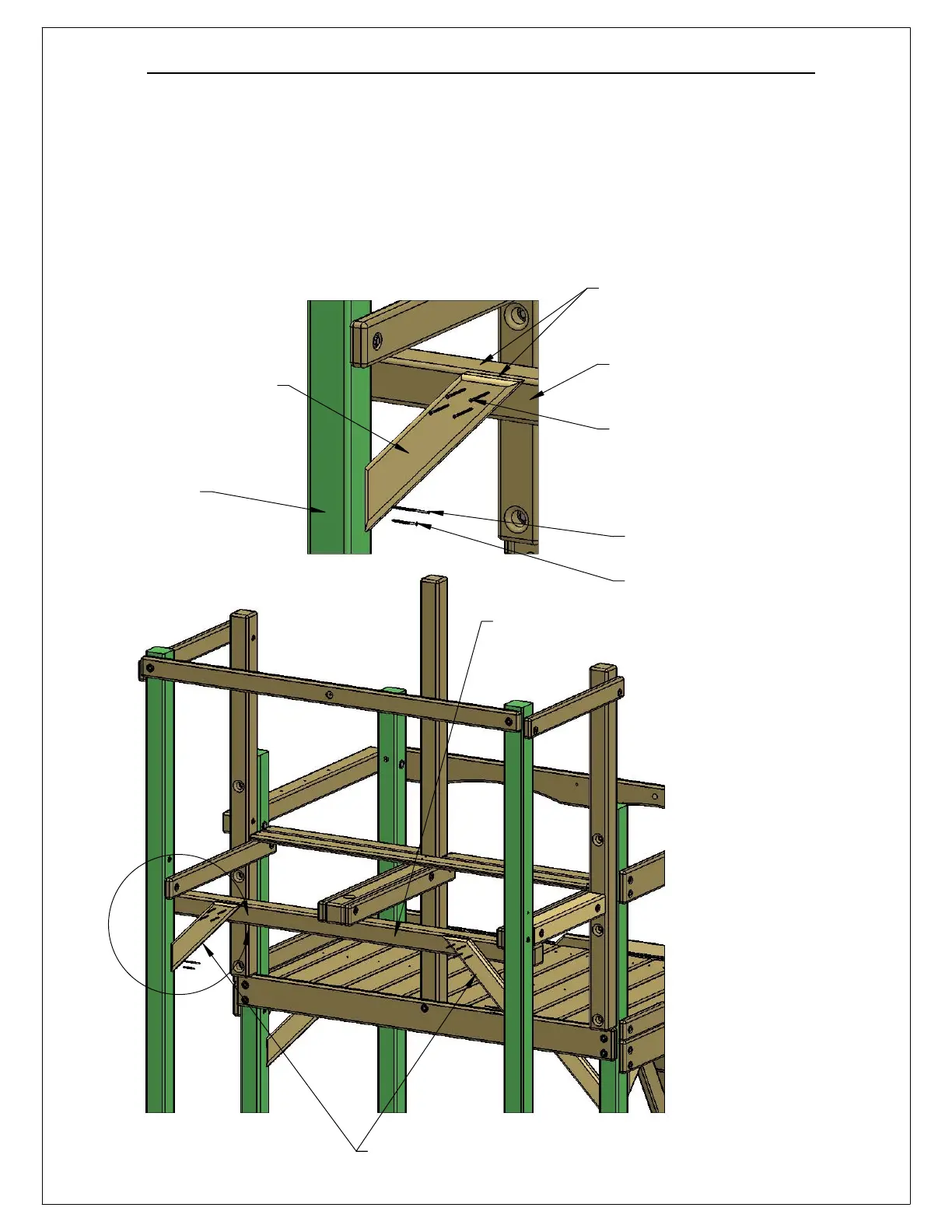

STEP 30: ANGLE SUPPORT - UPPER LEVEL REAR
1: PLACE A 2 X 4 X 18" ANGLE SUPPORT -UPPER LEVEL REAR AGAINST THE 4 X 4 X 70 UPPER
LEVEL UNDER DECK SUPPORT ON EACH SIDE AT THE REAR OF THE PLAY SET.
2: THE TOP OF THE ANGLE SUPPORT SHOULD BE FLUSH TO THE TOP OF THE UNDER DECK
SUPPORT. FASTEN THE TOP OF THE ANGLE SUPPORT TO THE UNDER DECK SUPPORT WITH
FOUR #8 X 2-1/2" WOOD SCREWS.
3: FASTEN THE BOTTOM OF THE ANGLE SUPPORT TO THE REAR CORNER POST WITH ONE #8
X 2" WOOD SCREW AND ONE #8 X 3" WOOD SCREW.
75
