DECK SUPPORT
UPPER LEVEL
ANGLE SUPPORT
#8 X 2-1/2" WOOD SCREW (4)
#8 X 2" WOOD SCREW
DETAIL B
SCALE 1 : 12
SWING SIDE
#8 X 3" WOOD SCREW
2 X 4 X 21-1/2"
TOPS FLUSH

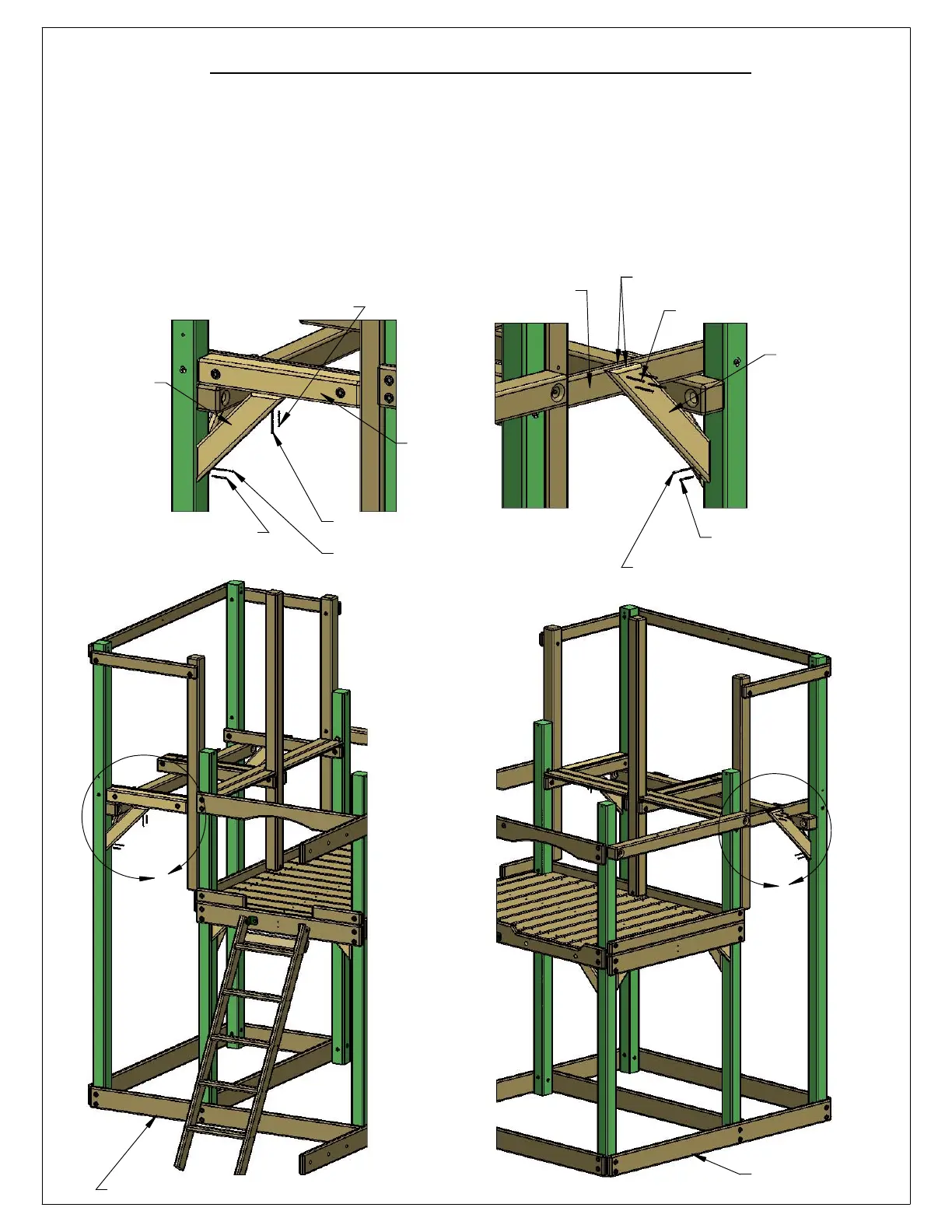

STEP 31: SIDE REAR ANGLE SUPPORTS
1: (SEE DETAIL A) PLACE THE 2 X 4 X 18" ANGLE SUPPORT UPPER LEVEL RAD RIDE SIDE UNDER THE 4 X 4 X 23-
1/2" SLIDE BLOCK ON THE LEFT SIDE OF THE FORT. THE ANGLE SUPPORT SHOULD BE FLUSH TO THE LEFT SIDE
OF THE LEFT REAR CORNER POST. ATTACH THE ANGLE SUPPORT AT THE TOP AND AT THE BOTTOM WITH ONE
#8 X 2" WOOD SCREW AND ONE #8 X 3" WOOD SCREW.
2: (SEE DETAIL B) PLACE THE 2 X 4 X 21-1/2" ANGLE SUPPORT UPPER LEVEL SWING SIDE AGAINST THE 2 X 4 X
34" UPPER LEVEL DECK SUPPORT ON THE RIGHT SIDE OF THE FORT. THE TOP OF THE ANGLE SUPPORT
SHOULD BE FLUSH TO THE TOP OF THE DECK SUPPORT. FASTEN THE TOP OF THE ANGLE SUPPORT TO THE
DECK SUPPORT WITH FOUR #8 X 2-1/2" WOOD SCREWS. FASTEN THE BOTTOM OF THE ANGLE SUPPORT TO
THE RIGHT REAR CORNER POST WITH ONE #8 X 2" WOOD SCREW AND ONE #8 X 3" WOOD SCREW.
RIGHT SIDE
OF FORT
B
#8 X 3" WOOD SCREW
#8 X 3" WOOD SCREW
#8 X 2" WOOD SCREW
DETAIL A
SCALE 1 : 14
UPPER LEVEL
RAD RIDE SIDE
#8 X 2" WOOD SCREW
2 X 4 X 18"
ANGLE SUPPORT
SLIDE
BLOCK
LEFT SIDE OF FORT
A
