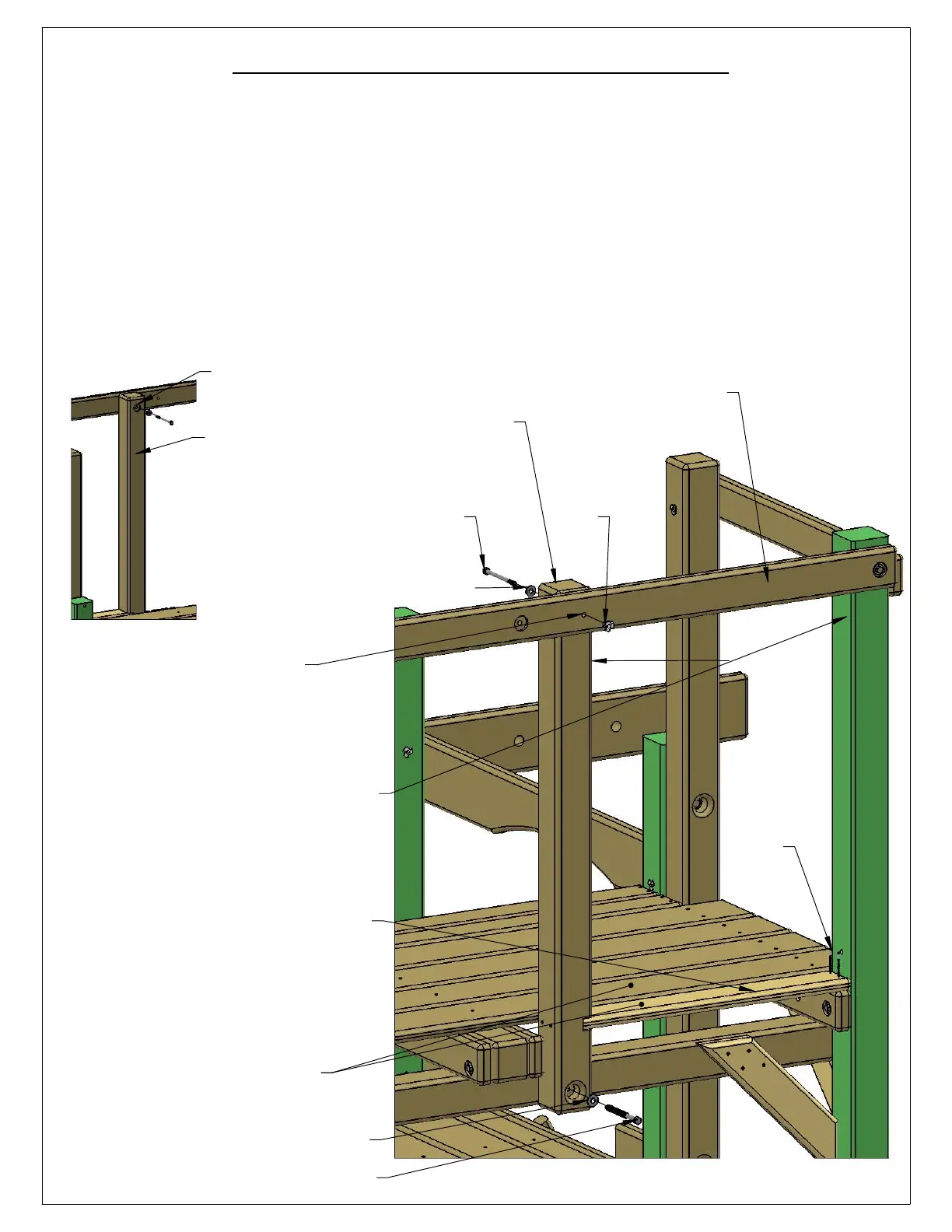

STEP 34: SLIDE POST INSTALLATION
1: PLACE THE END OF THE DECK SPACER AGAINST THE CORNER POST. THE OUTSIDE OF THE DECK
SPACER SHOULD BE FLUSH TO THE OUTSIDE OF THE CORNER POST. FASTEN THE DECK SPACER TO
THE DECK SUPPORT WITH #8 X 2" WOOD SCREWS.
2: MAKE THE DECK SPACER LEVEL WITH THE DECK BOARD BEHIND IT. DRIVE A 3/8" X 5" LAG
SCREW WITH 3/8" WASHER THROUGH THE RAD RIDE CENTER POST INTO THE 4 X 4 X 70" UNDER
DECK SUPPORT.
3: MEASURE THE BOTTOM OPENING AND RECORD THIS MEASUREMENT. MEASURE AT THE TOP OF
THE OPENING. MAKE THE TOP OF THE OPENING THE SAME AS THE MEASUREMENT YOU
RECORDED. NOW USE THE TOP HOLE IN THE RAD RIDE CENTER POST TO DRILL A 3/8" HOLE
THROUGH THE 2 X 4 X 70" RAILING.
4: PLACE A T-NUT INTO THE HOLE IN THE RAILING. FASTEN THE RAD RIDE CENTER POST TO THE
RAILING WITH A 5/16" X 4-1/2" HEX BOLT AND 5/16" WASHER.
OF RAD RIDE
CENTER POST
INSIDE VIEW
SHALLOW
COUNTERSUNK HOLE
AT TOP.
(FIRST)
5/16" X 4-1/2"
DRILL 3/8" HOLE
T-NUT
3/8" WASHER
AS BOTTOM & DRILL HOLE
DECK SPACER ATTACHED
TOP OPENING SAME
2 X 4 X 70"
DETAIL A
SCALE 1 : 9
#8 x 2"
RAILING
WOOD
(END FLUSH TO POST, OUTSIDE
FLUSH TO OUTSIDE OF POST.)
(FOURTH)
SCREWS
5/16" WASHER
(THIRD)
HEX BOLT
TO RAD RIDE CENTER POST
3/8" X 5" LAG SCREW
FASTEN POST TO RAILING
LEVEL & LAG
(SECOND)
RAD RIDE
CENTER POST
