Gorilla Treasure Trove II User Manual

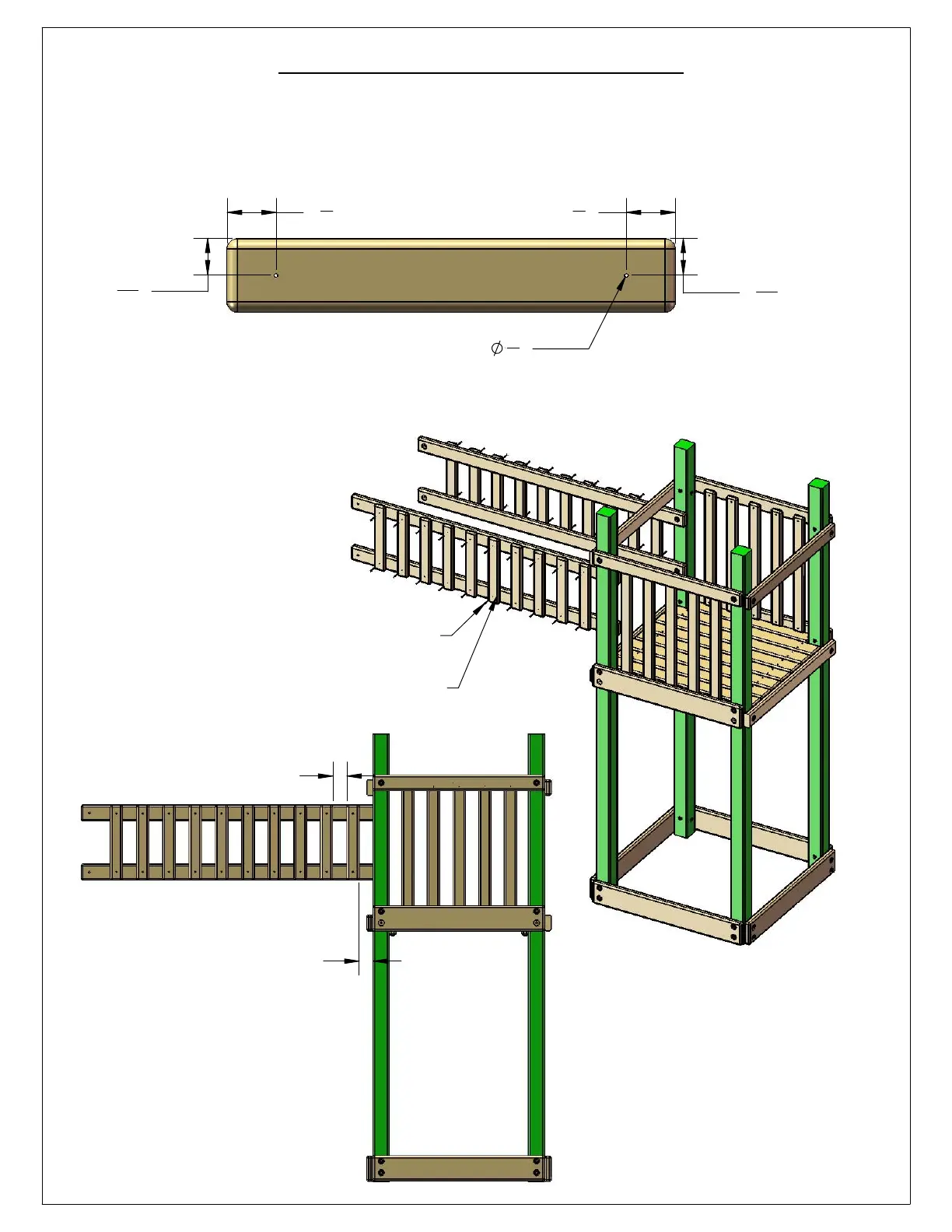

LEFT SIDE VIEW
3" SPACE OFF CORNER POST
3" SLAT SPACING
SLAT
5/4 X 3 X 16"
BRIDGE RAIL
2" WOOD SCREW
STEP 15: BRIDGE RAIL SLATS
1. PRE-DRILL TWENTY 5/4 X 3 X 16" BRIDGE RAIL SLATS ON EACH END WITH A 1/8" DRILL BIT. (SEE TOP IMAGE BELOW)
2. PLACE THE BRIDGE RAIL SLATS 3" FROM THE FACE OF THE CORNER POSTS, AND ATTACH WITH 2" WOOD SCREWS.
THE SLATS WILL MOUNT ON THE OUTSIDE OF THE BRIDGE RAILS.
3. ATTACH THE REMAINING SLATS TO THE UNIT WITH 3" SPACING BETWEEN THE SLATS.
5/4 X 3 X 16"
BRIDGE RAIL SLAT
5
16
"
"
4
1
3
4
3
1
"
"
16
1
5
1
2X
1
8
"
133
