DECK SUPPORT
QUICK LINK
FRONT FACE BOARD
NOTE: TO ACHIEVE THE CORRECT
GAP YOU MAY NOT BE
CONNECTING THE END LINK OF
EACH CHAIN. FOR EXAMPLE YOU
MAY HAVE TO CONNECT THE
SECOND, THIRD, FORTH LINKS, ETC.
TOGETHER.
1" to 1-3/4"
CHAIN MUST GO THROUGH
TWO BOARDS NO EXCEPTIONS!!
A
1: TWO PEOPLE MAY BE REQUIRED FOR THIS STEP.
2: THERE SHOULD BE AT LEAST A 1" TO 1-3/4" GAP BETWEEN THE BRIDGE DECK BOARD AND THE FRONT FACE
BOARD ON THE PLAY SET. THIS MEANS THAT YOU WILL HAVE TO CONNECT THE ENDS OF THE CHAINS
IN A MANNER TO ACHIEVE THE CORRECT GAP. IN ORDER TO ACHIEVE THE GAP YOUR ASSISTANT MAY
HAVE TO LIFT UP THE BRIDGE DECK ASSEMBLY WHILE YOU CONNECT THE CHAINS TOGETHER WITH THE
QUICK LINK UNDER THE PLAY SET DECK. IF YOU HAVE LOOSE ENDS OF THE CHAINS HANGING DOWN
THREAD THEM THROUGH THE QUICK LINK TO KEEP THEM UP AND OUT OF THE WAY.
3: THREAD THE CHAIN ENDS IN THE BRIDGE DECK ASSEMBLY THROUGH THE HOLES IN THE FRONT FACE
BOARD AT THE FRONT OF THE PLAY SET. THEN THREAD EACH CHAIN THROUGH THE HOLES IN THE DECK
SUPPORT. CONNECT THE LEFT CHAIN TO THE RIGHT CHAIN WITH A QUICK LINK.

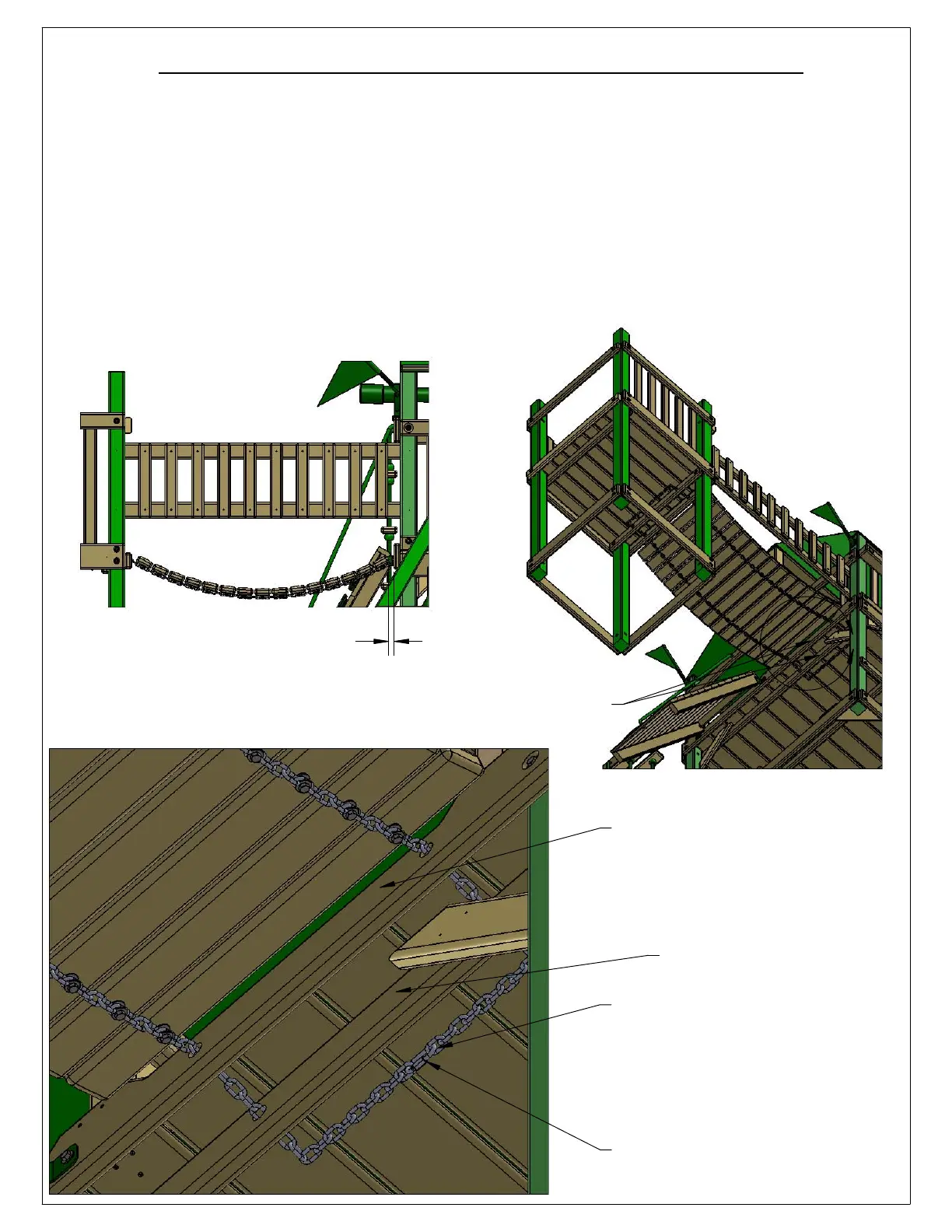

STEP 20: BRIDGE DECK/CHAIN INSTALLATION
