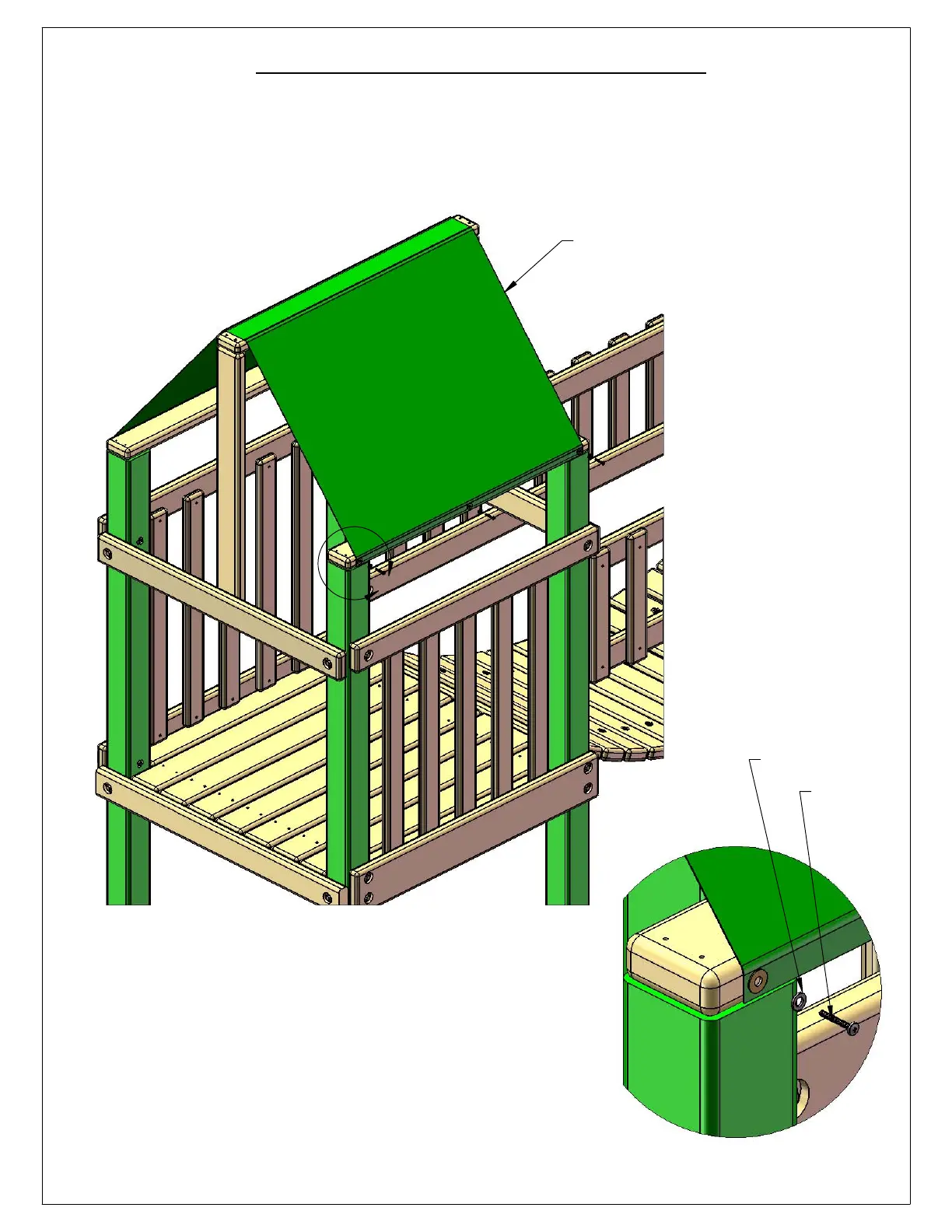

STEP 23: CLATTER BRIDGE TARP
1: LOCATE THE 34-1/4" X 57-1/2" CLATTER BRIDGE TARP.
2: PLACE THE TARP OVER THE TOP OF THE TARP BOARD ON TOP OF THE VERTICAL TARP SUPPORTS.
3: THE TARP WILL OVERLAP THE SIDE OF THE TARP BOARDS ON TOP OF THE CORNER POSTS.
4: ATTACH THE TARP THROUGH THE GROMMETS TO THE TARP BOARDS WITH #14 X 1-1/4" PAN HEAD SCREWS
AND 1/4" FLAT WASHERS.
34-1/4 X 57-1/2" CLATTER BRIDGE TARP
A
SCALE 1 : 3
DETAIL A
1/4" WASHER
#14 X 1-1/4"
PAN HEAD
SCREW
141
