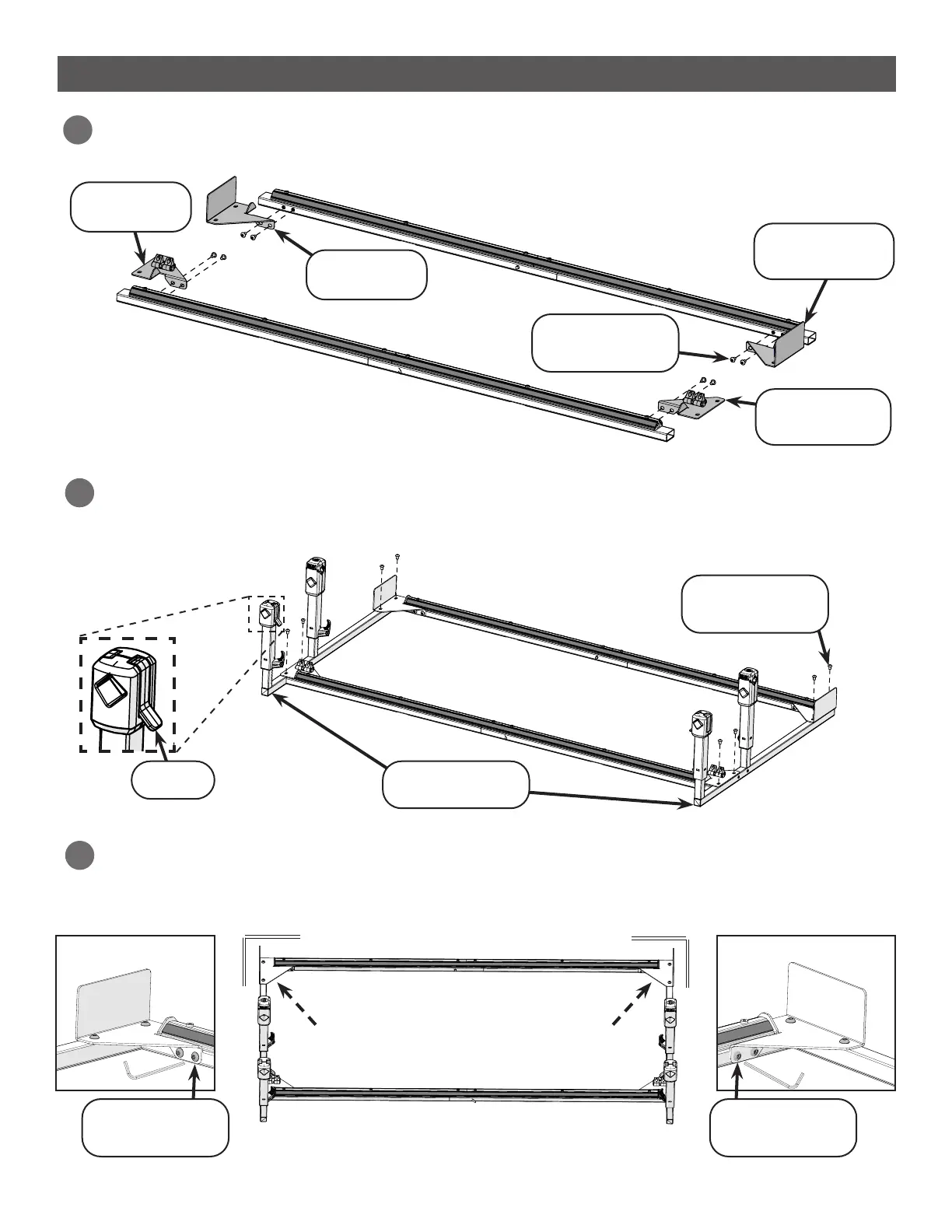

Install the side assemblies so the levers at the front are toward the inside of the frame.
Attach each side loosely with four M5 x 8 mm SBHCS and the 3 mm Allen wrench. Do not
tighten.
3
Use two M5 x 8 mm SBHCS and the 3 mm Allen wrench to loosely attach each of the corner
braces. Do not tighten.
2
Task 2 - Installing the Sides (Continued)
Left Rear
Corner Brace
SBHCS
M5 x 8 mm (x8)
Right Rear
Corner Brace
Front Left
Corner Brace
Front Right
Corner Brace
Lever
SBHCS
M5 x 8 mm (x8)
Side Assemblies
Push in the rear corner braces so they are ush with the frame tracks and sides. Keep
everything square and tighten down the four M5 x 8 mm SBHCS screws on both rear corner
braces.
4
SBHCS
M5 x 8 mm (x4)
SBHCS
M5 x 8 mm (x4)
