Grace Cutie - Task 3 - Aligning the Tracks

14
Cutie Frame
Task 3 - Aligning the Tracks

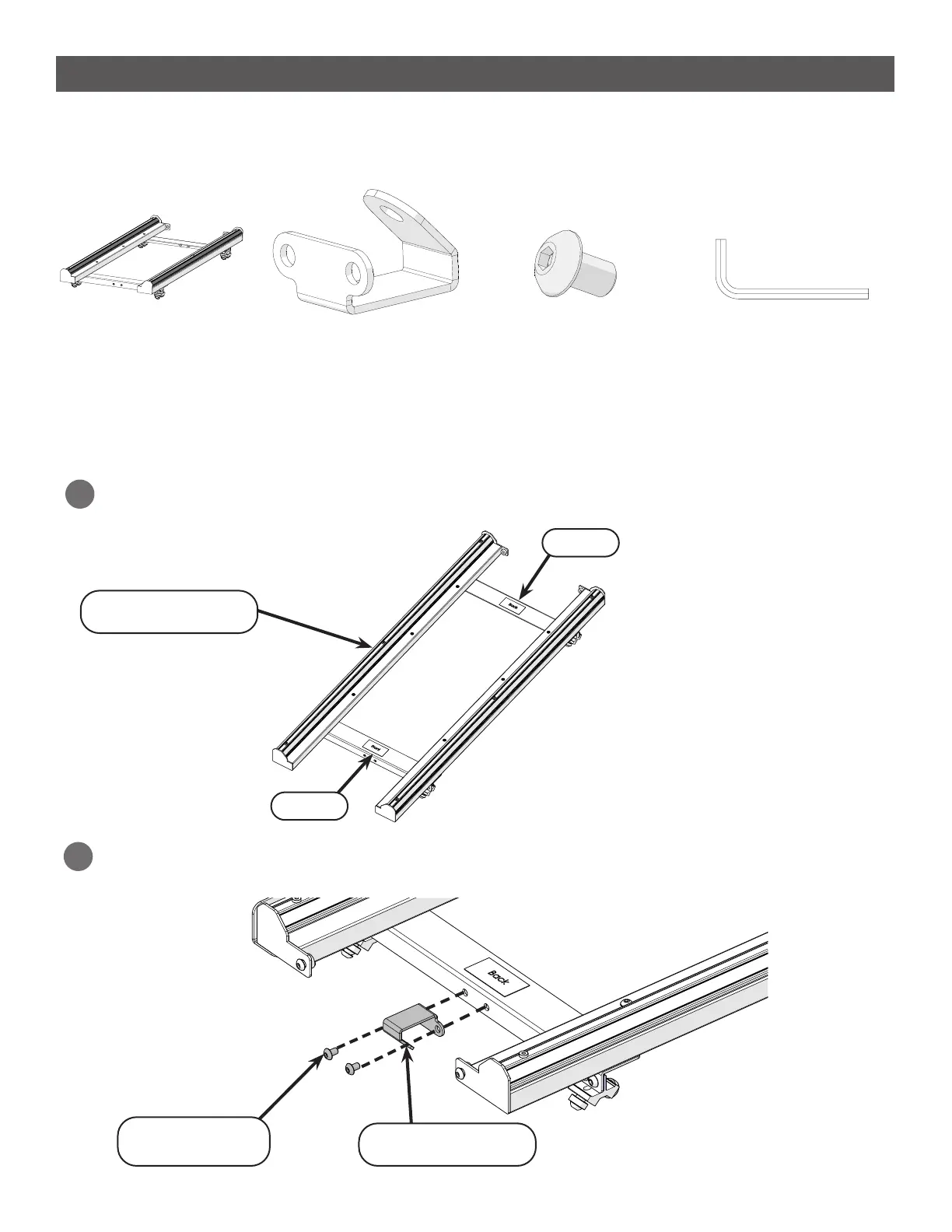

Parts & Tools Needed:
Instructions
The bottom carriage shuttles the machine from side to side across the frame. To prepare and install
the bottom carriage, please follow these steps:
Bottom Carriage
Note that the bottom carriage has stickers to label the front and back of the carriage
1
Bottom Carriage
Encoder Bracket
SBHCS
M5 x 8 mm (x2)
Allen Wrench
3 mm
14
17
On the rear of the bottom carriage, install the encoder bracket with two M5 x 8 mm SBHCS
screws and the 3 mm Allen wrench.
2
Encoder Bracket
SBHCS
M5 x 8 mm (x2)
Back
Front
