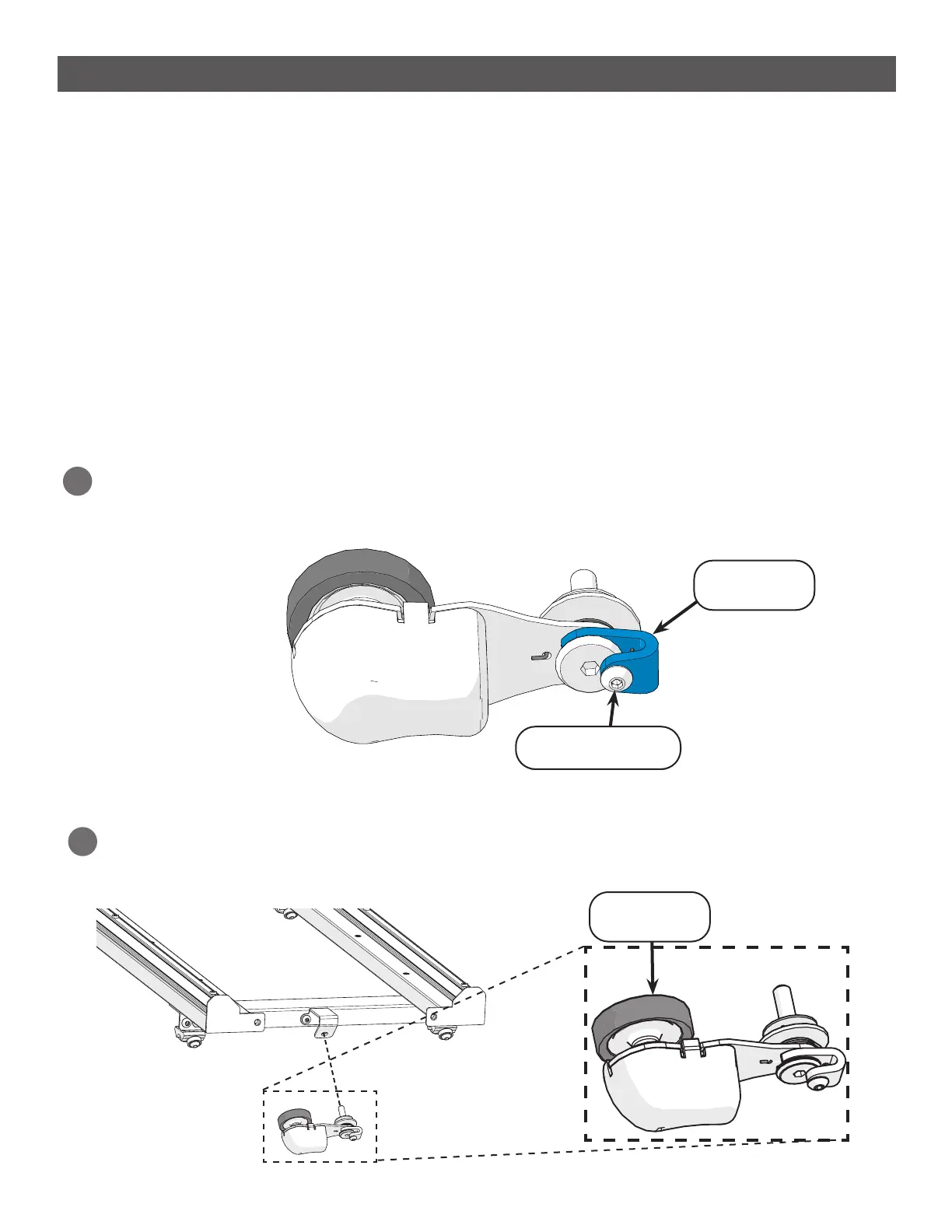

1. Loosen the lock collar screw on the lower encoder with the 2.5 mm Allen wrench until the
lock collar turns freely.
Accessories - Encoder Installation
Instructions
These instructions are optional. Encoders come with the purchase of a wheeled quilting machine or
the SureStitch accessory stitch regulator.
1
Lock Collar Screw Lock Collar Screw
2
Install the encoder directly onto the encoder bracket at the rear of the carriage so the dark
encoder wheel is to the left of the bracket. Tighten with the 4 mm Allen wrench.
Encoder
Wheel
Lower Encoder Installation
Lock Collar
