56
Cutie Frame

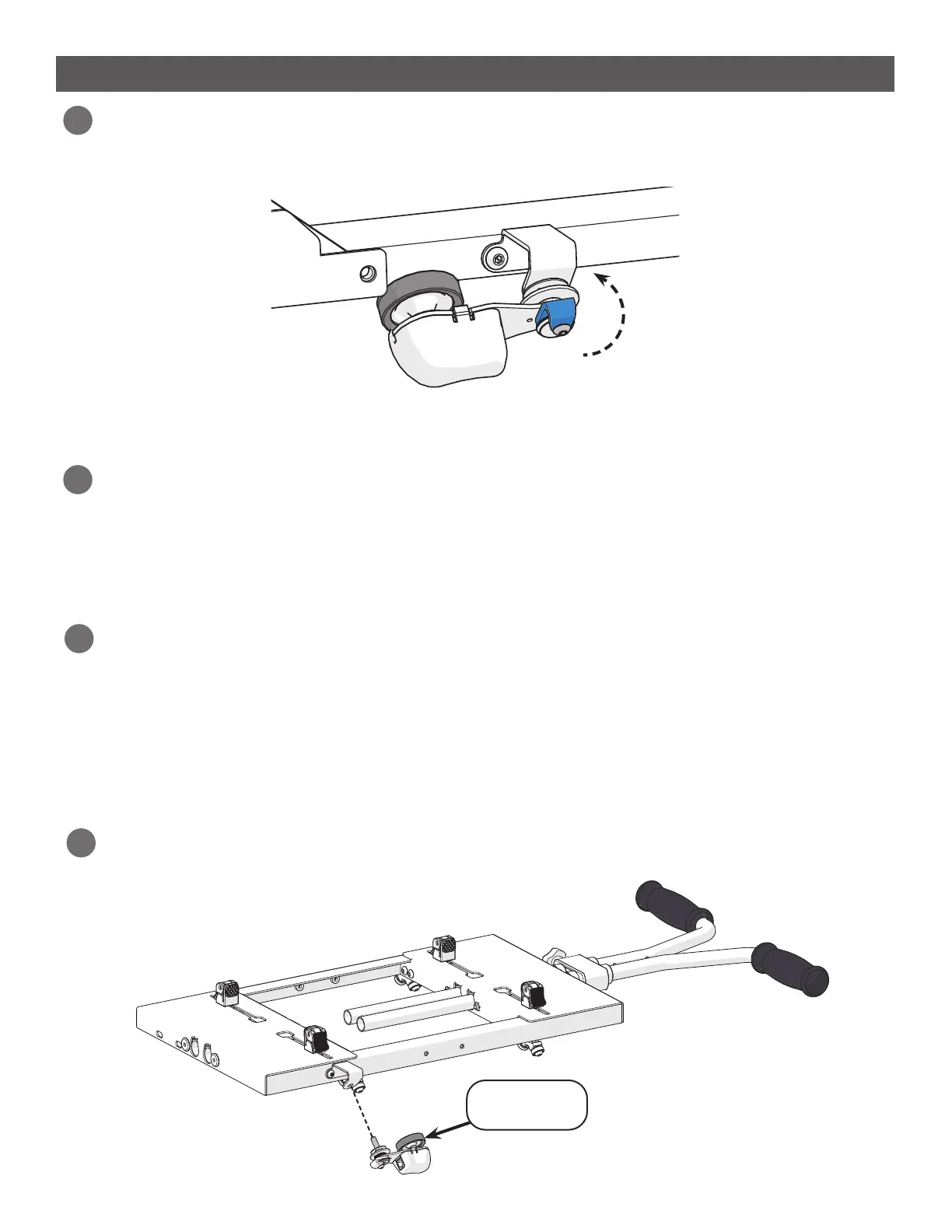

1. Turn the encoder lock collar to point up. Then tighten the lock collar screw with the 2.5 mm
Allen wrench.
3
The lower encoder is plugged into the lower encoder port on the quilting machine or in the
SureStitch control box. See those product manuals for details.
4
Upper Encoder Installation
• Which setup are you using?
• If you are using a quilting machine that your encoders came with, please see your machine
manual for instructions on installing the upper encoder.
• If you are using the Cutie frame top plate and a domestic sewing machine, the encoder is
installed onto your top plate.
1
2
Install the upper encoder directly onto the top plate encoder bracket so the dark encoder
wheel is to the front of the bracket. Tighten with the 4 mm Allen wrench.
Encoder
Wheel
Accessories - Encoder Installation
