Grace Cutie - Task 12 - Extending Your Foot Pedal Cable

38
Cutie Frame
Task 12 - Extending Your Foot Pedal Cable

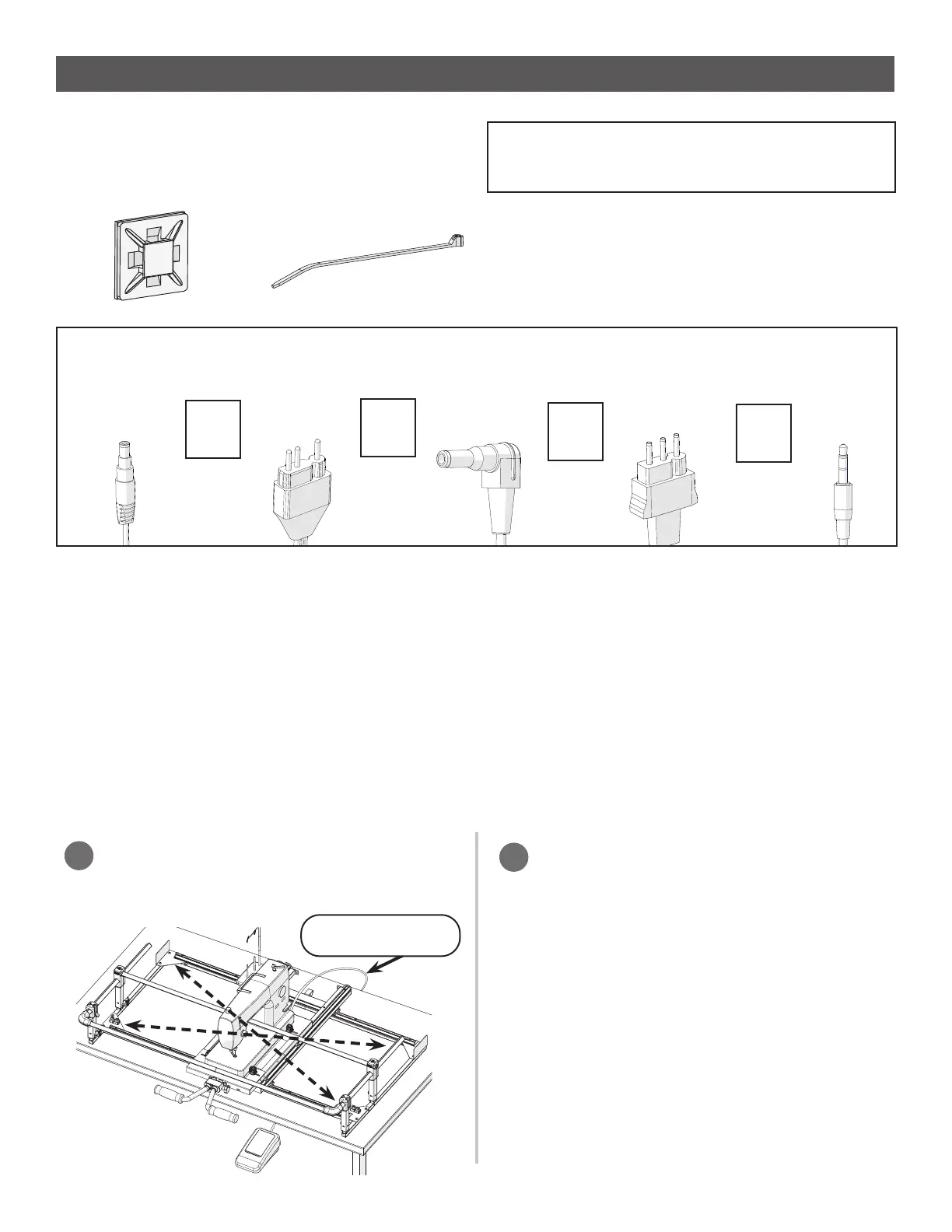

Parts & Tools Needed:
Instructions
If you nd that your foot pedal cable is too short to handle the full motion of the sewing machine on
the frame, try the following steps:
Test if your foot pedal cable is long
enough to reach the machine and allow for
full movement across the frame.
1
2
If it is not long enough, you may benet
from using a foot pedal extension
cable. Compare your foot pedal cable to
the extension cables provided.
Custom Barrel
Extension
Cable
HD9 Foot
Pedal
Extension
Cable
Angled
Barrel Jack
Extension
Cable
3 Prong
Extension
Cable
OR
TRS
Extension
Cable
OR
OR
OR
Note: Some machine foot pedal cables may have trouble reaching around wider tables. To increase
the compatibility of your frame with dierent styles of tables and counters, we have provided foot
pedal extension cables. Due to the diversity of sewing machine models in the market, we
are not able to provide extension cables for every foot pedal model available. These are
the ve most commonly used styles of foot pedal cables.
Foot Pedal Cable
Quilting Machine Users: Skip to the end of
this task for instructions on which manual to
refer to next.
Zip Tie
Mount
Zip
Tie (x4)
