Grace Cutie - Task 1 - Assembling the Tracks

10
Cutie Frame
Task 1 - Assembling the Tracks
Parts & Tools Needed:
Instructions
The frame tracks allow the bottom carriage to move horizontally across the frame. Please take the
following steps to assemble the frame tracks:

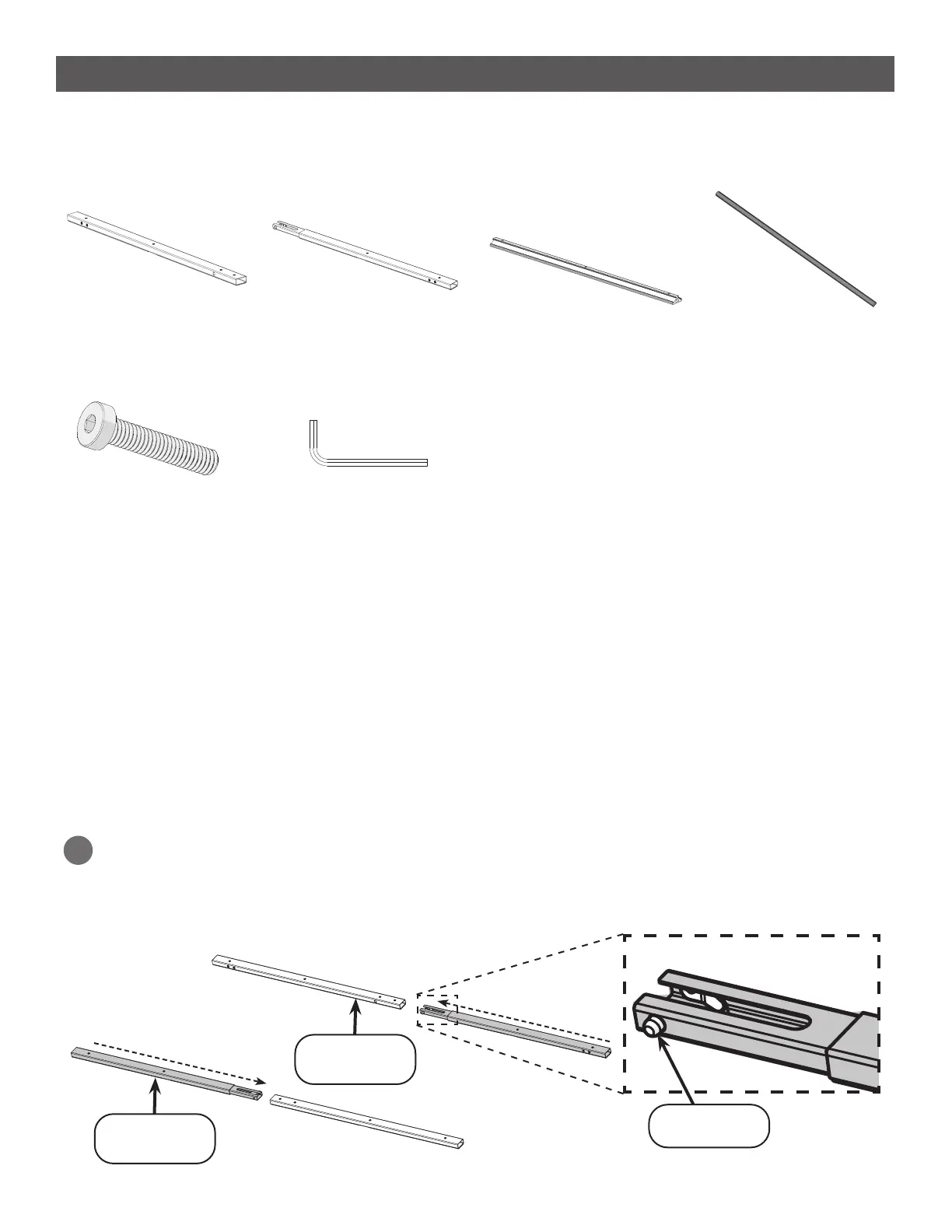

On both short cross supports: Press in the metal clips and slide into the long cross
supports until they click into place.
1
ULPSHS
M4 x 20 mm (x12)
Long Cross
Support (x2)
Short Cross
Support (x2)
Metal Clip
Short Cross
Support
Long Cross
Support
Plastic Track
Support (x4)
Allen Wrench
2.5 mm
Plastic Track (x4)
