Cutie Frame
Task 4 - Installing the Top Plate Clamps and Encoder Bracket

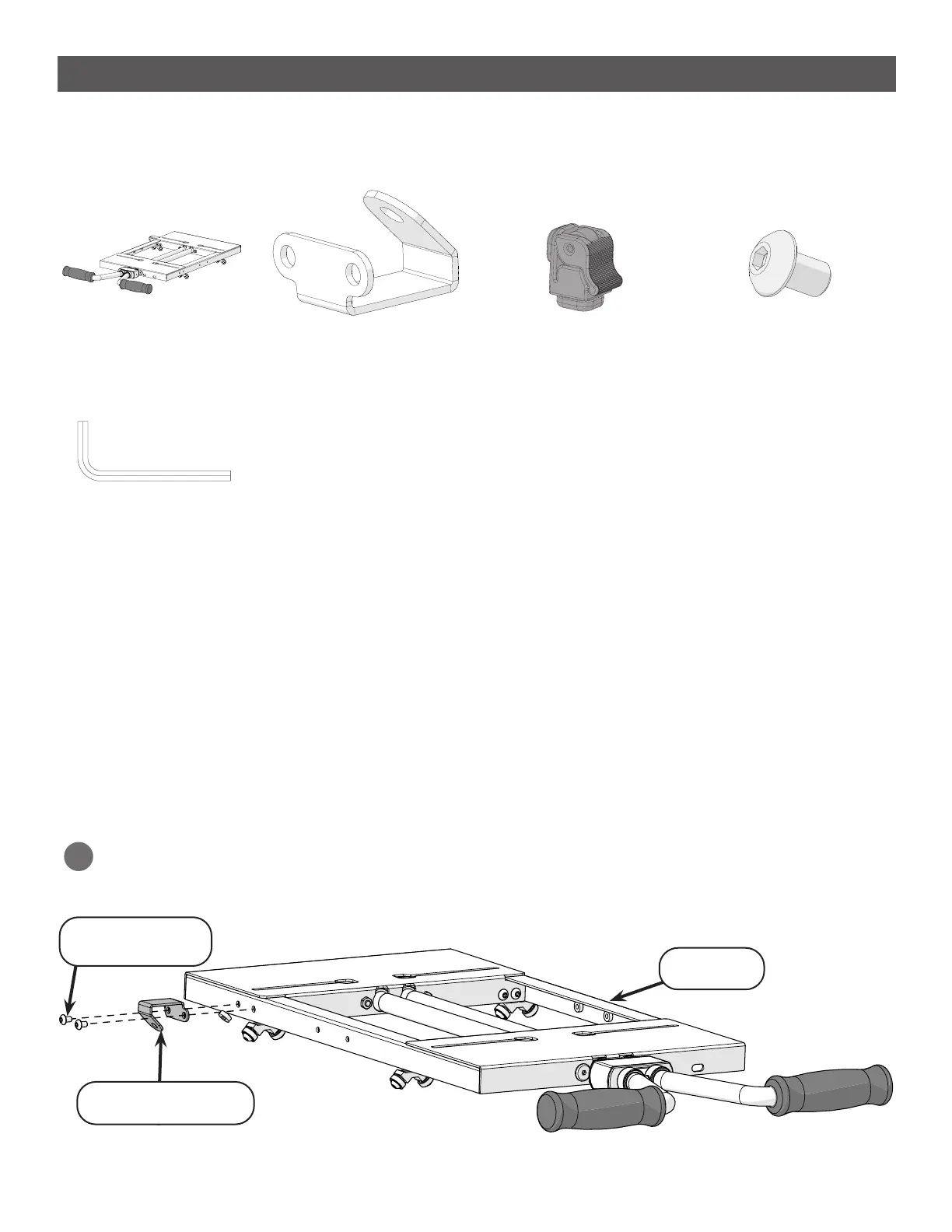

Install the second encoder bracket onto the left side of the top plate with two M5 x 8 mm
SBHCS screws and the 3 mm Allen wrench.
1
Encoder Bracket
M5 x 8 mm
SBHCS (x2)
Top Plate
Parts & Tools Needed:
Sewing Machine
Clamps (x4)
Top Plate
Encoder Bracket
SBHCS
M5 x 8 mm (x2)
Allen Wrench
3 mm
14
17
Instructions
The top plate shuttles the machine from front to back on the bottom carriage. To prepare the top
plate, please follow these steps:
